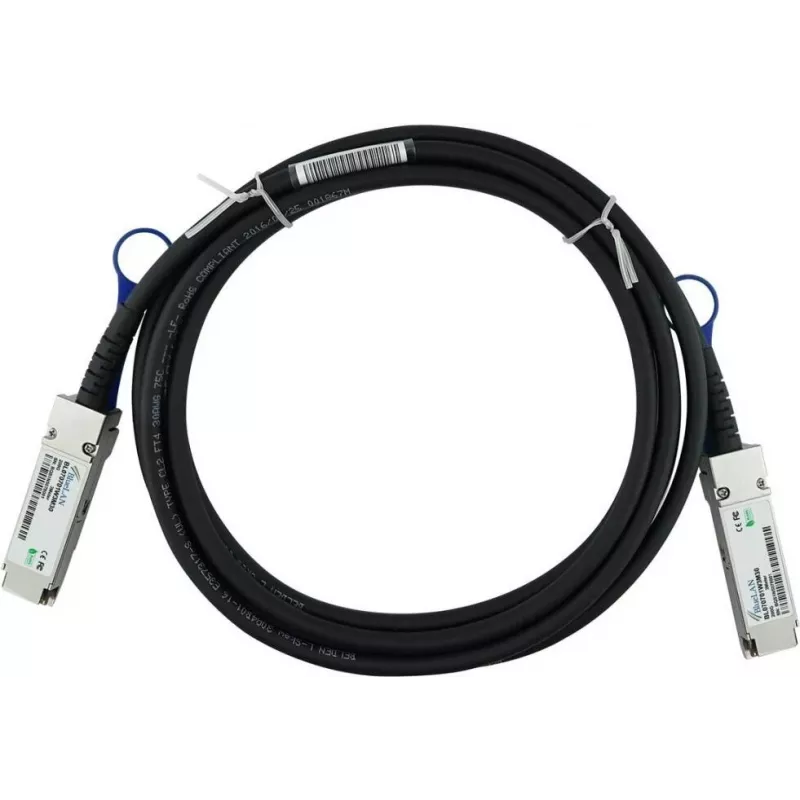

BlueLAN 980-9I54B-00H01A-BL QSFP56 Direct Attach -kaapeli, 200Gb/s, 2m, Passives kupari, 30AWG

The BlueLAN 980-9I54B-00H01A-BL is a high-performance QSFP56 Direct Attach Cable (DAC) designed for data center and high-performance computing environments. It provides a cost-effective, low-power solution for 200 Gigabit Ethernet and InfiniBand connectivity over a 2-meter passive copper link.

Advantages

This cable offers reliable, hot-swappable connectivity with minimal power consumption (<0.1W). The passive copper design ensures low latency and high signal integrity, while the 30 AWG construction provides flexibility for easy cable management. It is fully compatible with BlueOptics 980-9I54B-00H01A and meets RoHS, CE, and FCC standards.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise networking
• Top-of-rack to server connections

Key specifications

• Connector type: QSFP56 to QSFP56
• Data rate: 200 Gbps
• Cable length: 2 meters
• Cable material: Passive copper
• AWG: 30 AWG
• Impedance: 100 Ohm
• Jacket material: PVC
• Operating temperature: 0 to 70°C
• Storage temperature: -40 to 85°C
• Power consumption: <0.1W
• Certifications: RoHS, CE, FCC

Recommendations

For optimal performance, ensure your switch or NIC supports QSFP56 200Gb/s modules. This cable is a direct replacement for the BlueOptics 980-9I54B-00H01A and is part of the BlueLAN product family.
