BlueLAN SC282801L2M30 QSFP28 Direct Attach -kaapeli, 100GBASE-CR4, Infiniband EDR, 30AWG, 2 metriä (MCP1600-E002E26-BL)

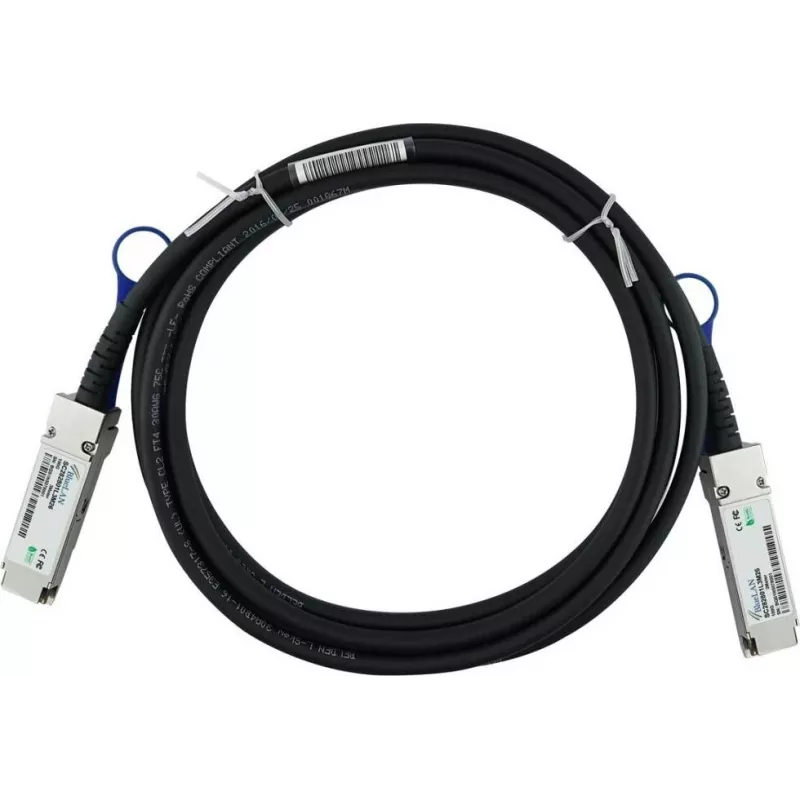

The BlueLAN SC282801L2M30 is a high-performance QSFP28 Direct Attach Copper (DAC) cable designed for 100 Gigabit Ethernet and InfiniBand EDR applications. This passive copper cable provides a cost-effective, low-power solution for short-range interconnects in data centers and high-performance computing environments. With a length of 2 meters and 30 AWG wire gauge, it ensures reliable signal integrity and minimal latency. Compatible with NVIDIA/Mellanox MCP1600-E002E26 series, this cable is hot-pluggable and supports CAUI-4 electrical interface (4x 25Gbps lanes).

Advantages

Passive design consumes zero power, reducing overall energy costs. Pre-terminated and tested for immediate deployment, saving installation time. Low profile and flexible construction ease cable management in dense racks. Full compatibility with industry-standard QSFP28 ports ensures broad interoperability.

Suitable for

• Data center top-of-rack to server/storage connections
• High-performance computing clusters
• Network aggregation and core switching
• InfiniBand EDR fabric interconnects

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Type: Copper
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gbps
• Ethernet Standard: 100GBASE-CR4
• InfiniBand Standard: EDR
• Cable Length: 2 Meters
• Wire Gauge: 30 AWG
• Compatibility: NVIDIA / Mellanox MCP1600-E002E26
• Transceiver Type: Passive
• Hot-Pluggable: Yes
• Electrical Interface: CAUI-4 (4x 25Gbps lanes)

Recommendations

For optimal performance, use with compatible QSFP28 ports on switches, routers, and network interface cards. Ensure proper cable bend radius to maintain signal quality. This cable is ideal for short-reach interconnects up to 2 meters within racks or adjacent racks.
