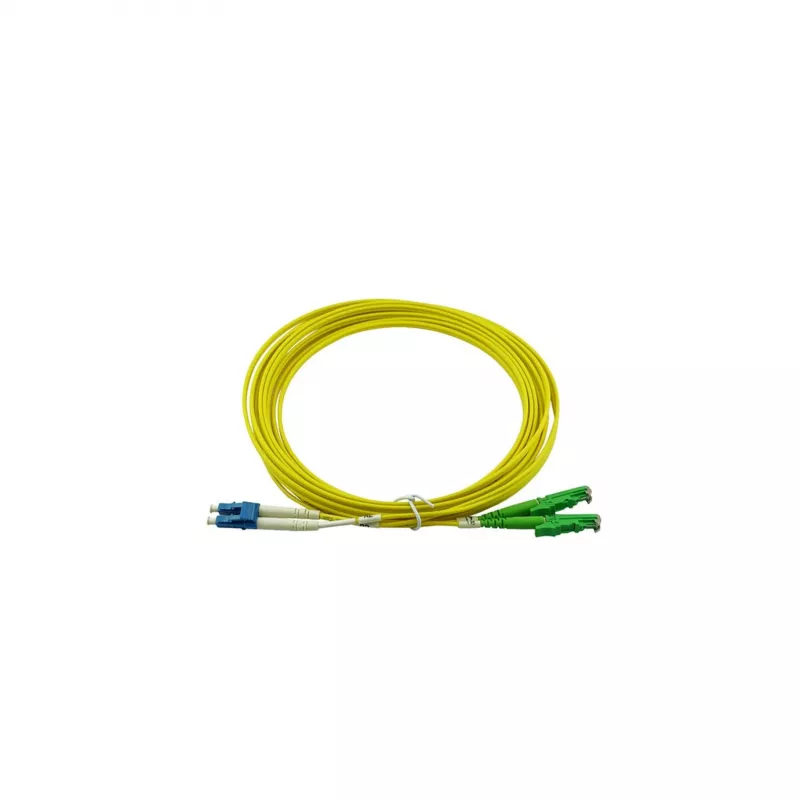

BlueOptics Duplex kuitu-patchkaapeli LC-UPC–E2000-APC Singlemode OS2 7,5 m LSZH keltainen

The BlueOptics SFP3138BU7.5MS is a high-quality duplex fibre optic patch cable designed for reliable single-mode transmission. It features an LC/UPC connector on one end and an E2000/APC connector on the other, making it ideal for connecting active equipment in data centres, telecommunications, and LAN networks. The cable is manufactured with a 9/125 µm core/cladding and complies with OS2 standards (ITU-T G.652.D).

Advantages

This patch cable ensures low insertion loss (≤0.3 dB) and high return loss (≥50 dB for LC/UPC, ≥60 dB for E2000/APC), guaranteeing excellent signal integrity. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, reducing toxic fumes in case of fire. The durable 3.0 mm diameter cable and zirconia ceramic ferrules offer long-term reliability.

Suitable for

• Data centre interconnects
• Telecommunications networks
• Local Area Networks (LAN)
• FTTx deployments
• Storage Area Networks (SAN)

Key specifications

• Cable Type: Duplex Fibre Optic Patch Cable
• Fibre Type: Single Mode (OS2, 9/125 µm)
• Connector A: LC/UPC (Blue Boot)
• Connector B: E2000/APC (Green Boot)
• Length: 7.5 metres
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Cable Diameter: 3.0 mm
• Insertion Loss: ≤0.3 dB (both connectors)
• Return Loss: ≥50 dB (LC/UPC), ≥60 dB (E2000/APC)
• Polarity: A-B (Crossed)
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3, IEC 60793-2-50

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC and E2000 ports. Store in a clean, dry environment within -40°C to +85°C.
