BlueOptics duplex kuitupatchkaapeli LC-APC/SC-APC yksimuoto OS2 2 metriä

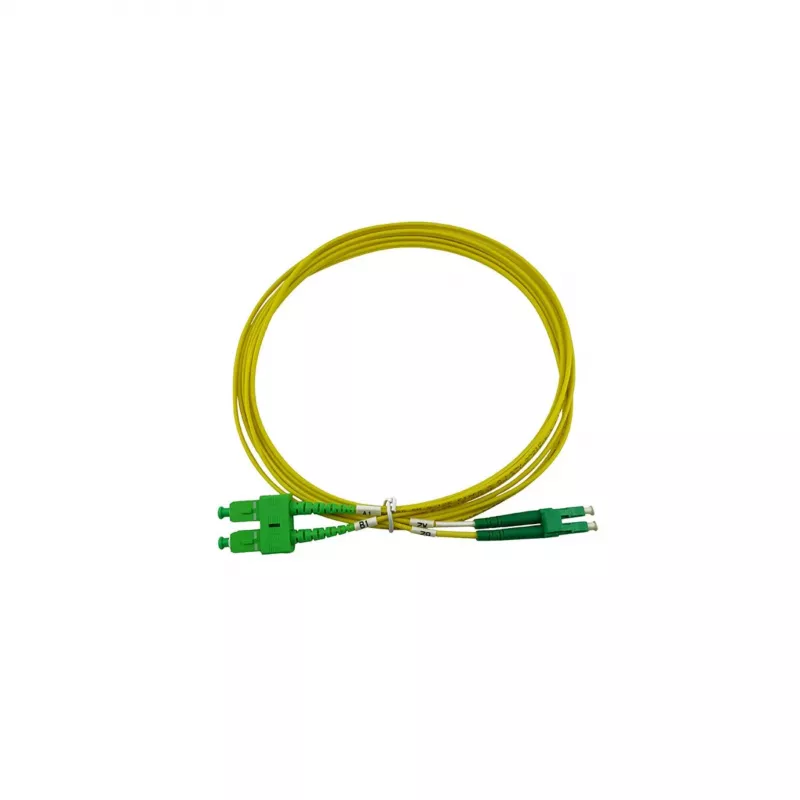

The BlueOptics SFP3132BU2MM is a high-quality duplex fibre optic patch cable designed for reliable singlemode connections. Featuring LC-APC to SC-APC connectors and a 2-metre length, this OS2 cable ensures low insertion loss and high return loss for optimal performance in data centres, telecommunications, and enterprise networks.

Advantages

This cable offers exceptional signal integrity with typical insertion loss ≤0.3 dB and return loss ≥60 dB. The LSZH jacket provides safety in confined spaces, while the 9/125 µm core/cladding ensures compatibility with standard singlemode equipment. Durable zirconia ceramic ferrules guarantee long-term reliability.

Suitable for

• Fibre optic network installations requiring singlemode OS2 performance
• Connecting LC-APC to SC-APC interfaces in patch panels, switches, and transceivers
• Applications demanding low attenuation and high return loss, such as FTTx and CATV

Key specifications

• Cable Type: Duplex Fibre Optic Patch Cable
• Fibre Type: Singlemode (OS2, G.652.D)
• Connector A: LC/APC
• Connector B: SC/APC
• Length: 2 Metres (6.56 ft)
• Core/Cladding: 9/125 µm
• Jacket: LSZH, Yellow, 3.0 mm diameter
• Insertion Loss: ≤0.3 dB (typical)
• Return Loss: ≥60 dB (typical)
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is polarity A-B (crossed) and suitable for point-to-point applications. Pair with BlueOptics transceivers for guaranteed compatibility.
