BlueOptics Extreme Networks EQPC1HPC030C0100 BlueLAN QSFP28 Direct Attach -kaapeli, 100GBASE-CR4, 26AWG, 3 metriä

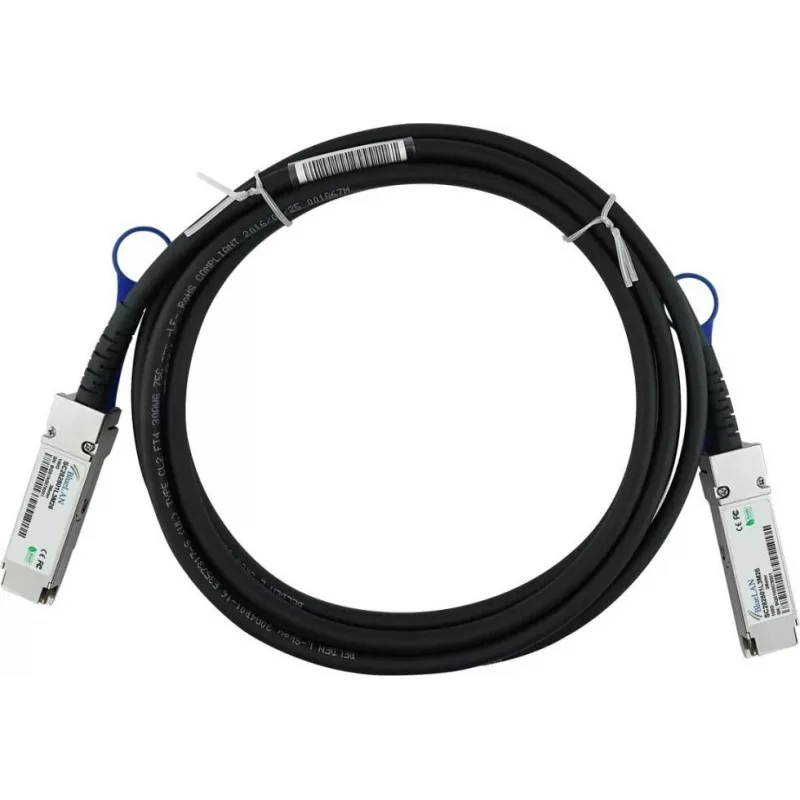

The BlueOptics Extreme Networks EQPC1HPC030C0100 BlueLAN SC282801L3M26 is a high-performance QSFP28 Direct Attach Copper (DAC) cable designed for 100 Gigabit Ethernet connectivity. This passive copper cable provides a cost-effective and low-power solution for short-range interconnects within data centers and enterprise networks. With a length of 3 meters and 26AWG gauge, it ensures reliable signal integrity for high-speed data transmission.

Advantages

This DAC cable offers plug-and-play simplicity without the need for transceivers, reducing overall system cost and power consumption. It is fully compatible with Extreme Networks equipment and meets the 100GBASE-CR4 standard, delivering up to 100 Gbps per port. The BlueLAN series ensures robust performance and compliance with industry specifications.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing clusters
• Enterprise network backbone links
• Storage area network (SAN) interconnects

Key specifications

• Connector type: QSFP28 to QSFP28
• Data rate: 100 Gbps (100GBASE-CR4)
• Cable length: 3 meters
• Wire gauge: 26 AWG
• Cable type: Passive Direct Attach Copper (DAC)
• Compatible with Extreme Networks EQPC1HPC030C0100

Recommendations

For optimal performance, ensure that both ends of the cable are securely connected to compatible QSFP28 ports. This cable is ideal for short-distance, high-bandwidth applications within a rack or between adjacent racks.
