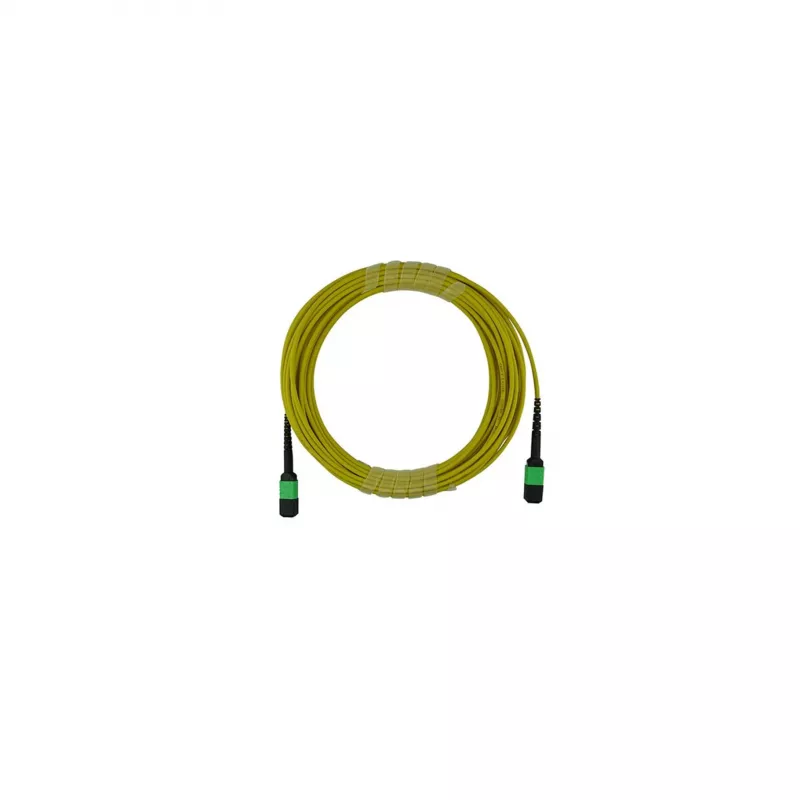

BlueOptics MPO runkokaapeli yksimuoto 12 kuitua 30 metriä Type B

The BlueOptics MPO trunk cable is a high-performance fiber optic solution designed for data centers, SAN, LAN, and telecommunications applications. This singlemode cable features 12 fibers with MPO/APC connectors on both ends, ensuring reliable and efficient connectivity for high-density environments.

Advantages

This MPO trunk cable offers low insertion loss (≤0.35 dB per connector) and high return loss (≥50 dB), providing excellent signal integrity. The LSZH jacket ensures safety in enclosed spaces, while the yellow color allows for easy identification. With a compact 3.0 mm diameter and minimum bend radius of 7.5 mm, it facilitates easy installation in tight spaces.

Suitable for

• Data center backbone cabling
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• Telecommunications infrastructure
• High-density fiber optic patching

Key specifications

• Fiber Mode: Singlemode (OS2, G.657.A1 / G.652.D compatible)
• Fiber Count: 12 Fibers
• Connector Type: MPO/APC (Female) on both ends
• Polarity: Type B (Crossed)
• Cable Length: 30 Meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Insertion Loss (Max): ≤ 0.35 dB per connector
• Return Loss (Min): ≥ 50 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Minimum Bend Radius: 7.5 mm
• Cable Diameter: 3.0 mm
• Ferrule Material: Zirconia Ceramic
• Compliance: RoHS, CE, TIA/EIA-568-C.3, IEC-61754-7

Recommendations

For optimal performance, ensure proper handling and installation to maintain bend radius and avoid damage to connectors. This cable is ideal for high-speed networks requiring reliable singlemode connections.
