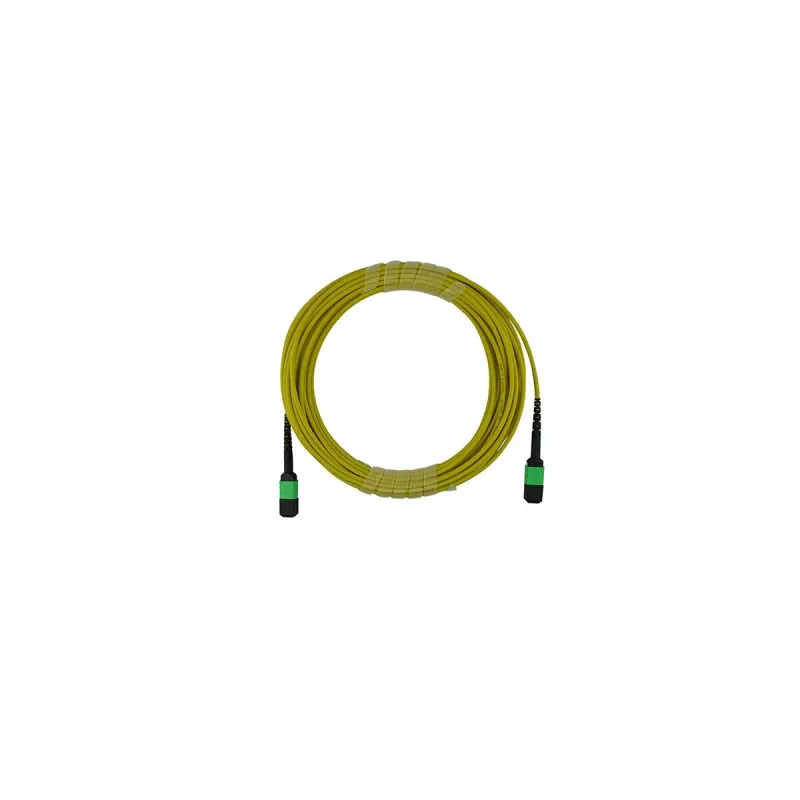

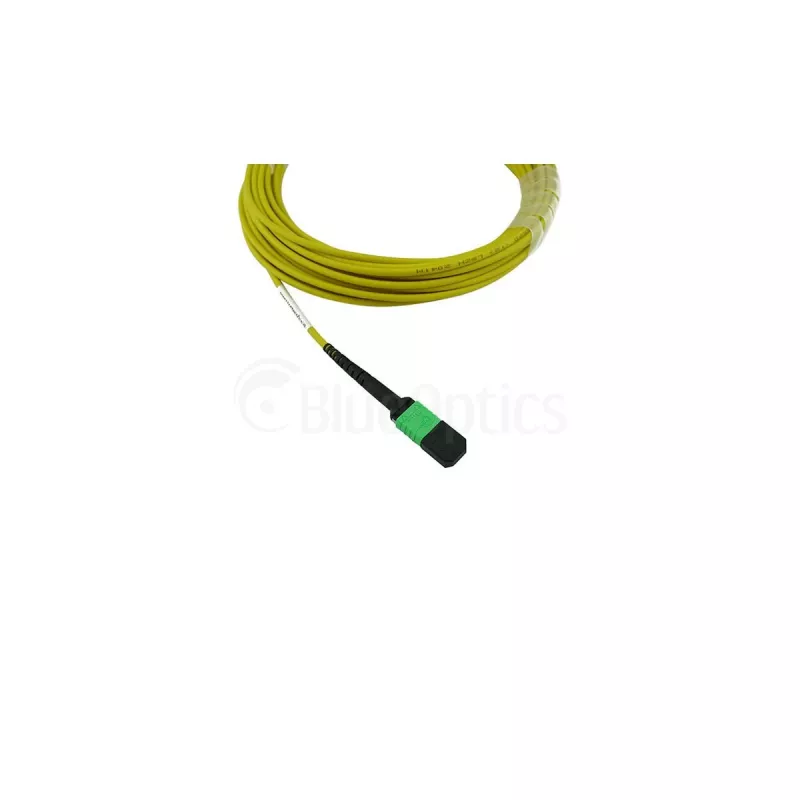

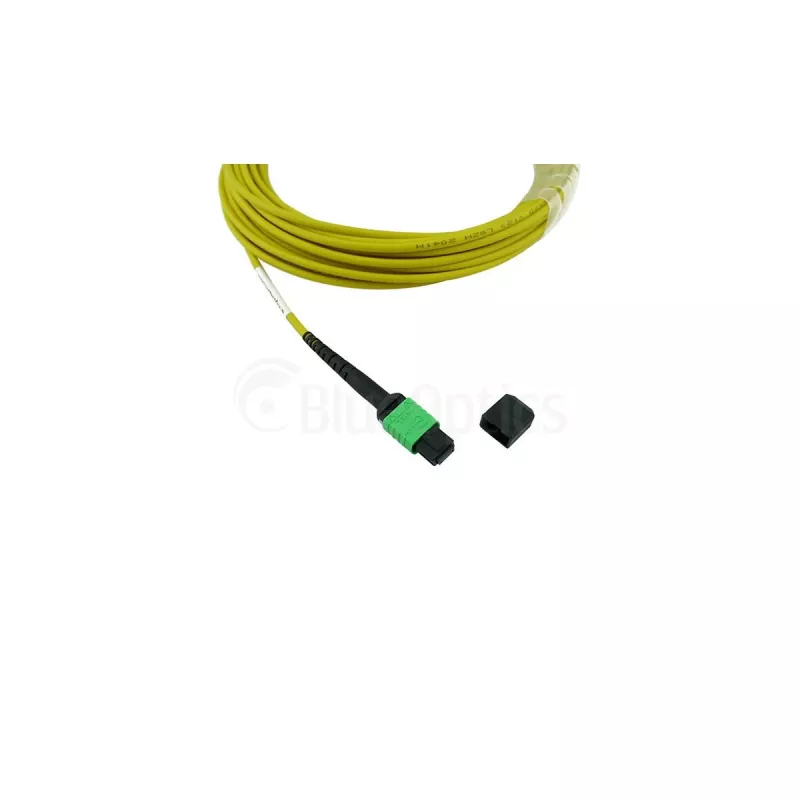

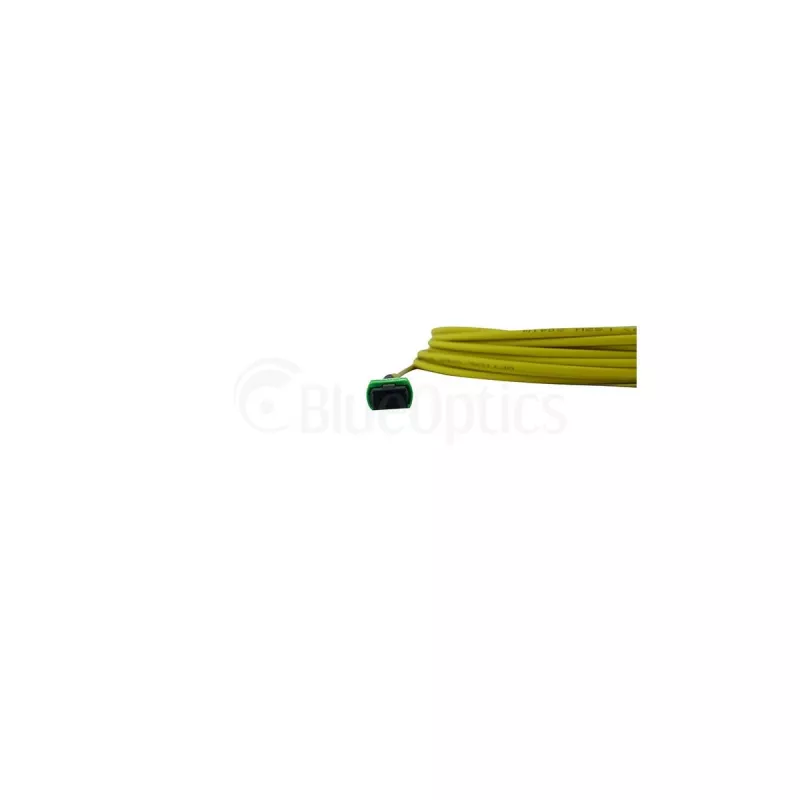

BlueOptics NVIDIA 980-9I559-00N002 MPO - MPO Singlemode OS2 -liitäntäkaapeli 2 metriä

The BlueOptics NVIDIA 980-9I559-00N002 is a high-performance MPO to MPO single-mode fiber optic patch cable designed for demanding data center, telecommunications, and enterprise network environments. With OS2 grade fiber and 12 fibers, this cable ensures reliable, high-speed data transmission over long distances.

Advantages

This patch cable offers low insertion loss and high return loss, ensuring minimal signal degradation and maximum network efficiency. The LSZH jacket provides safety in confined spaces, while the ceramic ferrule connectors guarantee durability and stable performance.

Suitable for

• Data center high-density cabling
• Telecommunications infrastructure
• Enterprise network backbone connections
• Single-mode fiber optic systems requiring MPO connectivity

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Single-mode (SM)
• Fiber Grade: OS2 (9/125µm)
• Connector Type A: MPO (Male with pins)
• Connector Type B: MPO (Male with pins)
• Connector Polarity: Type B (Cross-over)
• Fiber Count: 12 Fibers
• Cable Length: 2 Meter
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: Blue
• Insertion Loss (Typical): < 0.35 dB
• Return Loss (Typical): > 50 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3, IEC-61754-7
• Fiber Standard: ITU-T G.652.D / G.657.A1
• Connector Ferrule Material: Ceramic
• Cable Diameter: Approx. 3.0 mm

Recommendations

For optimal performance, ensure compatible MPO ports and proper polarity alignment. This cable is ideal for 40G/100G Ethernet and other high-speed single-mode applications.
