BlueOptics SFP3131FU10MK InfiniBand-kuitu kaapeli 10 m LC

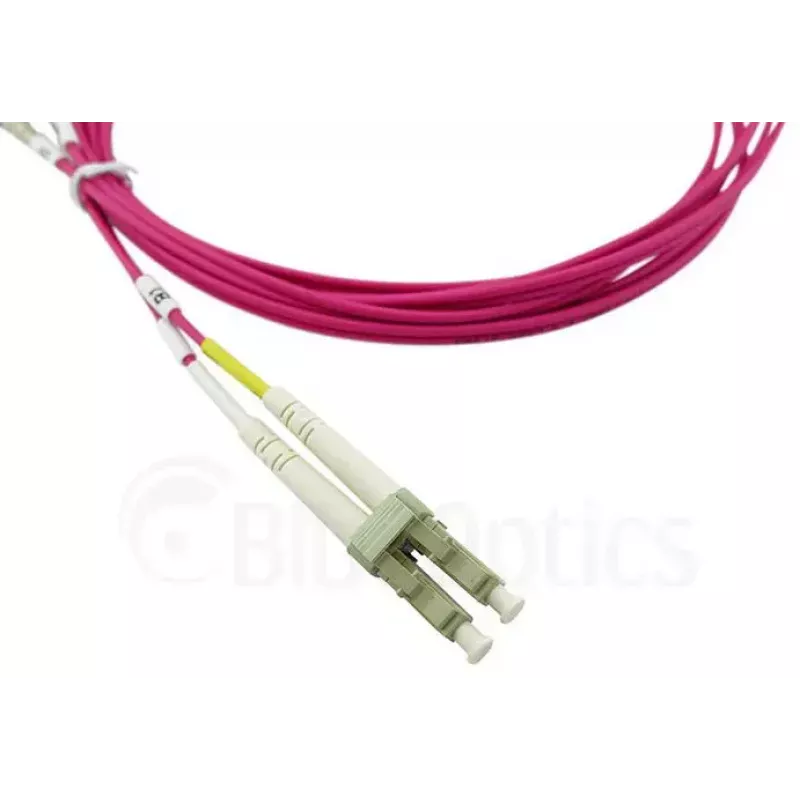

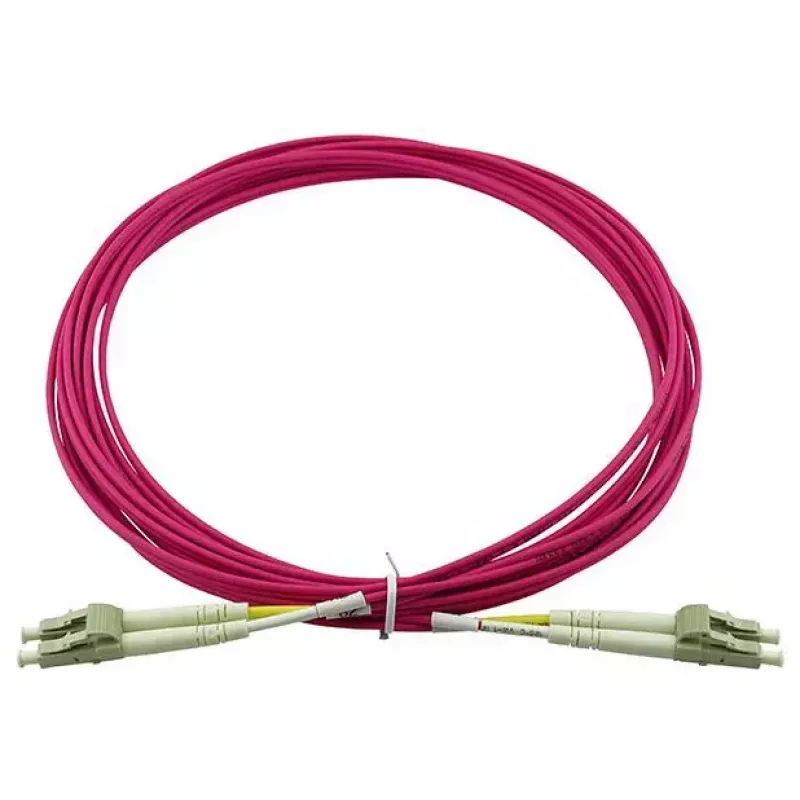

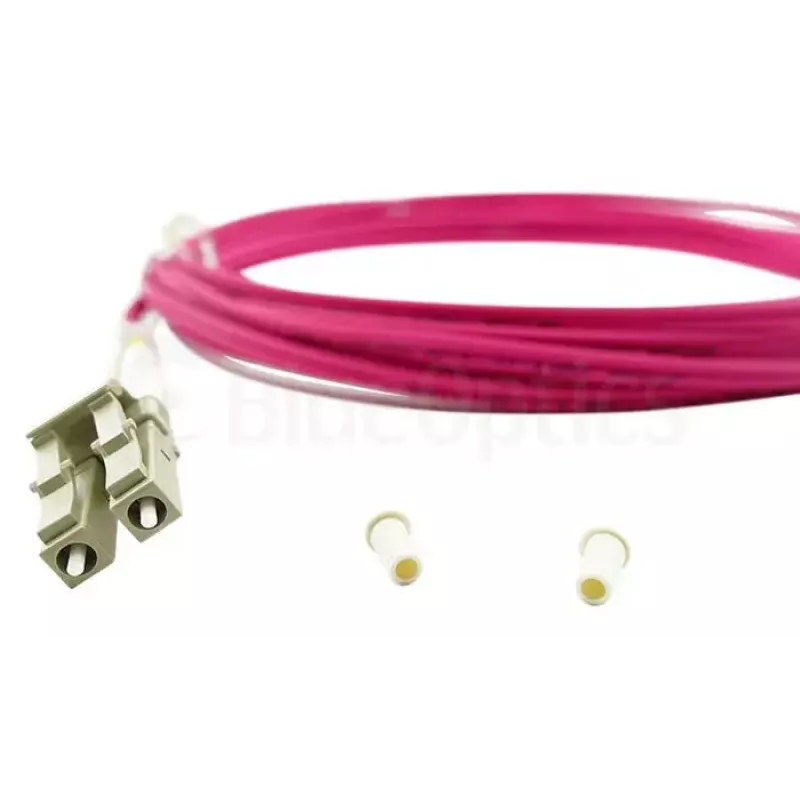

BlueOptics SFP3131FU10MK is a 10 meter InfiniBand fiber optic patch cord with duplex LC/UPC to LC/UPC connectors and laser-optimized multi-mode OM4 fiber (G50/125 µm) in magenta. The cable is designed for 850 nm transmission, supports full-duplex links and is suitable for connections between patch panels, transceivers and other networking equipment. The jacket is flame-retardant LSZH to reduce smoke and eliminate halogen release in case of fire.

Advantages

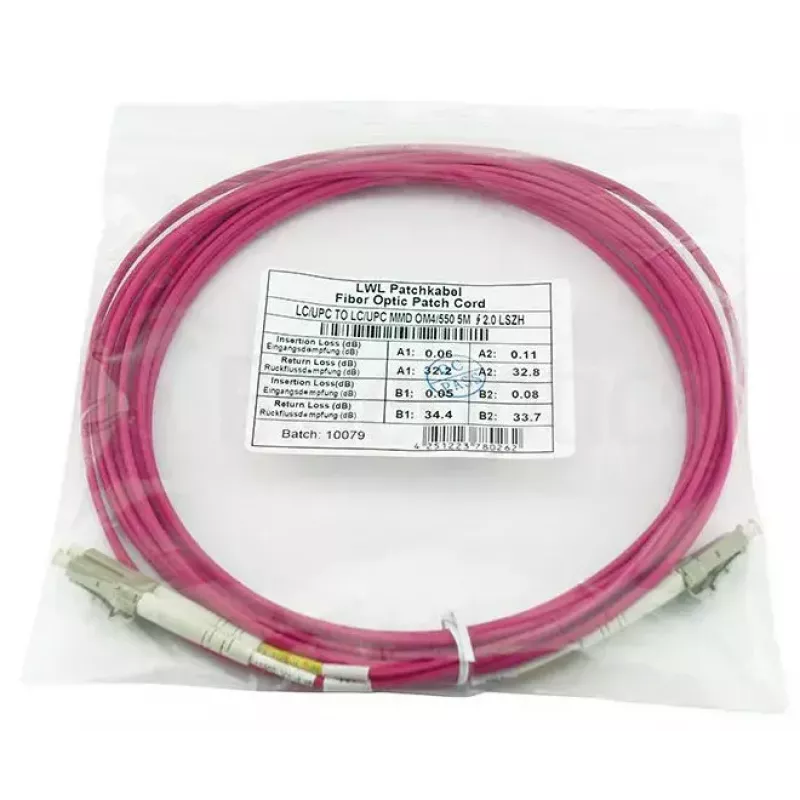

The OM4 multi-mode fiber provides low attenuation (2.5 dB/km) and low insertion loss with high return loss; connector polish options (UPC or 8° APC) allow further optimization. BlueOptics uses branded fiber from manufacturers such as Corning, Fujikura or YOFC and high-quality connectors with zirconia ceramic ferrules for reliable mating performance up to 1500 cycles. Each cable is tested with interferometer and OTDR and delivered with a measurement protocol for insertion loss and return loss. The cable family is available in multiple standard lengths and can be supplied in custom lengths on request.

Suitable for

Key specifications

How to use

Install the cable by plugging the LC connectors into compatible LC ports on transceivers, switches or patch panels, observing correct polarity for duplex links. Avoid tight bends and secure the cable to prevent strain on connectors. For best performance, verify connector end-face cleanliness before mating and follow standard handling procedures for multimode fiber to prevent damage and contamination.

Recommendations

Use the OM4 LC-LC duplex cable for short-reach multimode links in data centers and networking racks; choose appropriate cable length to avoid excess slack and verify measured insertion loss with the provided test report after installation.
