BlueOptics SFP3132FU20MK InfiniBand-kuituvalokaapeli 20 m LC

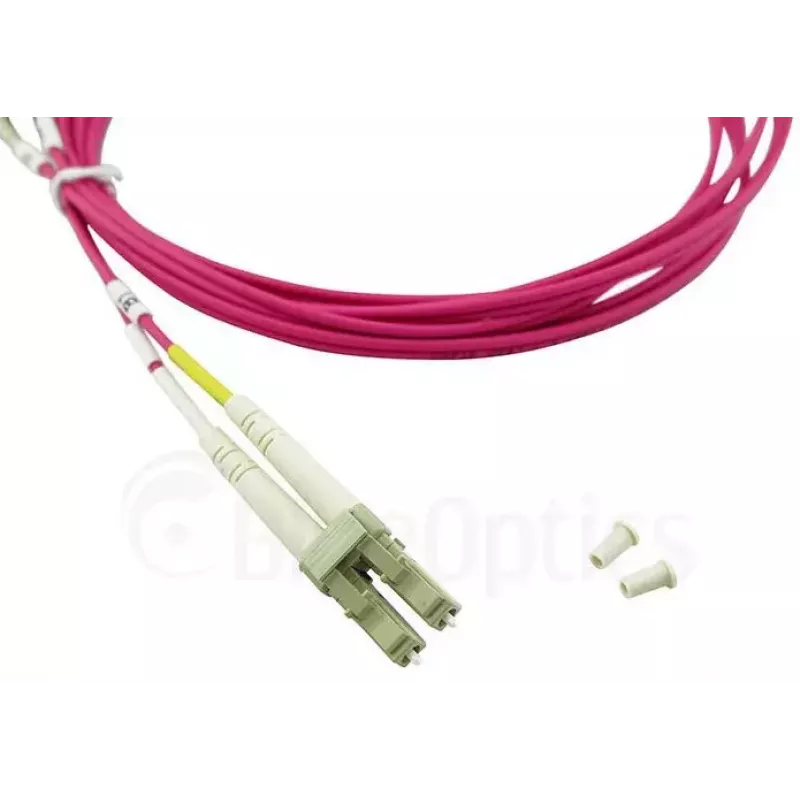

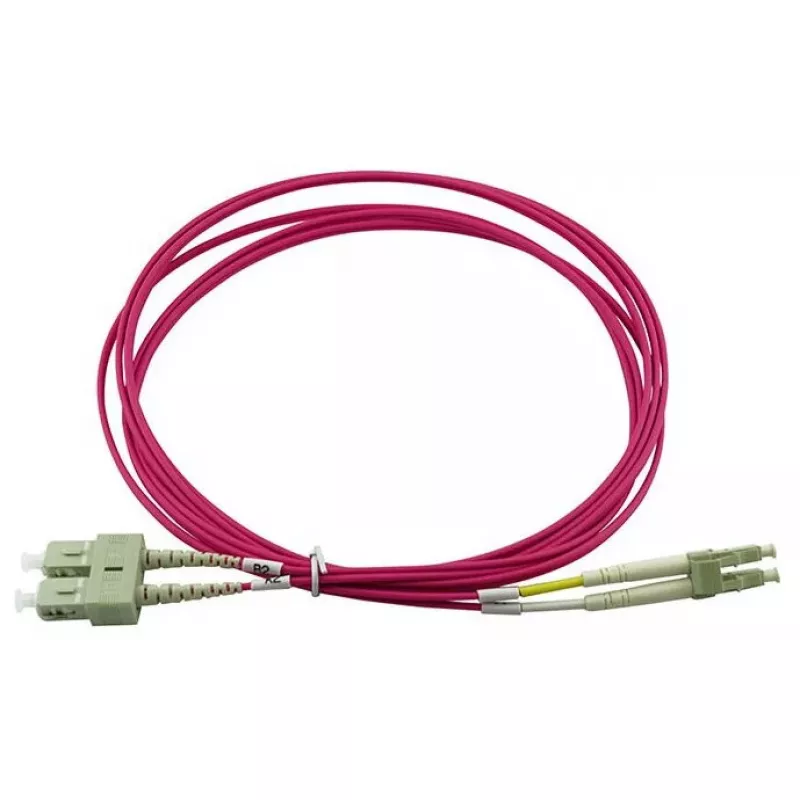

BlueOptics SFP3132FU20MK is a 20 meter duplex fiber optic patch cord with LC/UPC to SC/UPC connectors, laser-optimized multi-mode OM4 fiber (G50/125 µm) and a magenta LSZH jacket. It is designed for 850 nm transmission and supports connections between patch panels, optical transceivers and other network equipment requiring InfiniBand or multimode fiber links.

Advantages

The cable offers low attenuation (2.5 dB/km), low insertion loss and high return loss. Connectors use zirconia ceramic ferrules and branded fiber from manufacturers such as Corning, Fujikura or YOFC to ensure reliable, low-loss transmission. Cables are produced with LSZH jackets for reduced smoke and no halogen release in case of fire. Each unit is tested with interferometer and OTDR and shipped with a measurement protocol for insertion loss and return loss.

Suitable for

Key specifications

How to use

Route the BlueOptics LC–SC OM4 duplex cable between the devices to be connected, ensuring connectors are clean before mating. Insert the LC/UPC end into the device or transceiver and the SC/UPC end into the patch panel or corresponding port. Avoid tight bends, excessive pulling force and contact with sharp edges. Follow standard fiber-handling procedures and use dust caps when ports are unused.

Recommendations

For optimal performance, clean connector endfaces with appropriate fiber cleaning tools before each connection and verify insertion loss values if precise link budgets are required. Select custom lengths if fixed installations require reduced slack.
