BlueOptics SFPP-LR-BO verkkolähetin-vastaanotinmoduuli kuitu 10000 Mbit/s SFP+ 1310 nm

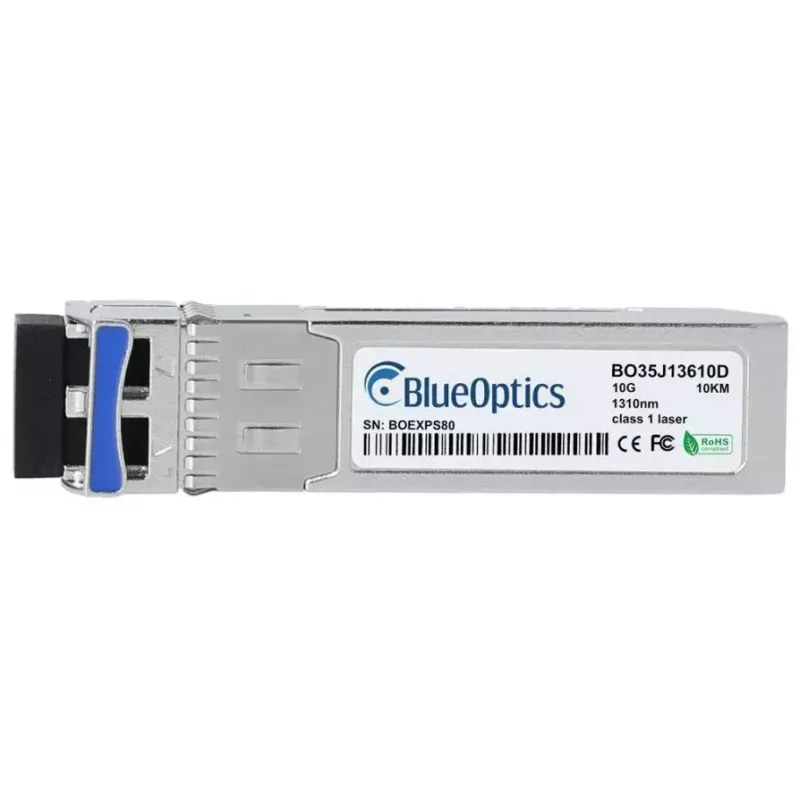

The BlueOptics SFPP-LR-BO is a fiber optic SFP+ transceiver module for 10 Gbit/s (10000 Mbit/s) data transmission over single-mode fiber. It operates at a wavelength of 1310 nm, features an LC duplex optical connector and comes in a durable metal housing with a compact, lightweight design. The module uses a 3.3 V supply and is designed for straightforward insertion into SFP+ ports on switches, routers and other compatible network equipment.

Advantages

The transceiver combines SFP+ interface compatibility with a standardized LC duplex connector and metal housing for mechanical robustness and thermal stability. Its 1310 nm transmit/receive wavelength and 10 Gbit/s data rate support long-reach links on single-mode fiber, while the lightweight design simplifies installation and swapping. The product follows MSA-compatible form factor conventions, enabling broad interoperability with SFP+ ports that accept 10GBASE-LR modules.

Suitable for

Key specifications

How to use

Ensure the host device supports SFP+ 10GBASE-LR modules and that the port is powered down or follows hot-plugging procedures recommended by the hardware vendor. Remove protective caps from the LC connector, align the module with the SFP+ cage and slide it in until it latches. Connect the LC duplex fiber patch cable with transmit/receive pairs correctly oriented. Verify link status via the host device LEDs or management interface and, if available, enable or check Digital Diagnostic Monitoring (DDM) features to monitor operating parameters.

Recommendations

For reliable long-distance performance use single-mode fiber and high-quality LC duplex patch cords; confirm DDM/DOM support on your host system to monitor supply voltage, laser bias, optical power and temperature. Store and handle the transceiver in clean, dry conditions and replace protective connector caps when not in use to avoid contamination of optical interfaces.
