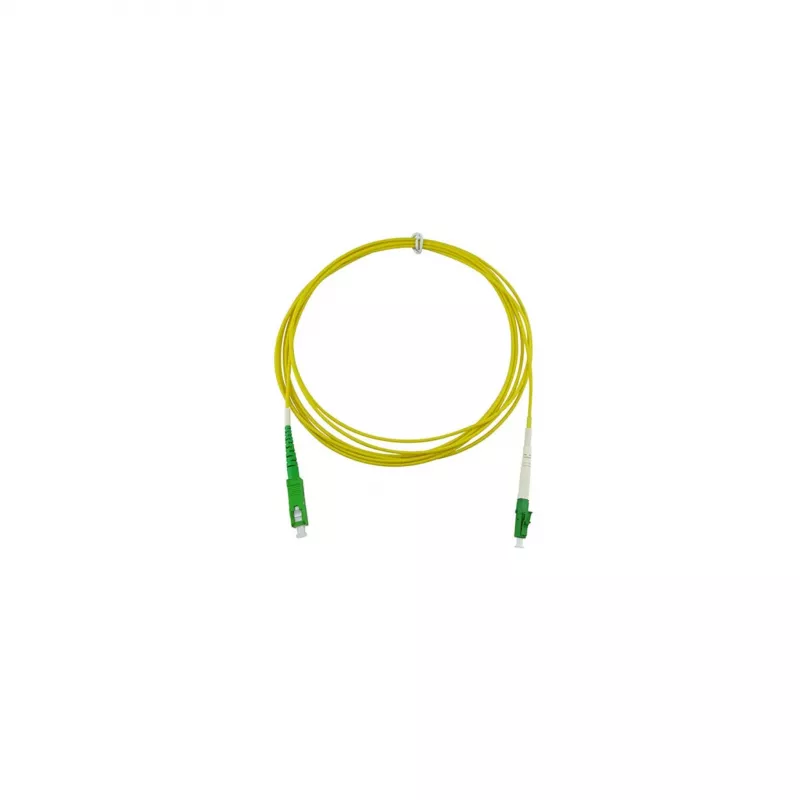

BlueOptics Simplex kuitu-patchkaapeli LC/APC–SC/APC Singlemode 3 m

The BlueOptics Simplex Fibre Optic Patch Cable LC/APC-SC/APC Single Mode 3 Metres is a high-performance, professional-grade fibre optic patch cable designed for reliable and low-loss single-mode connections. Manufactured to OS2 standards (ITU-T G.652.D), this cable ensures excellent signal integrity for demanding network applications. The LC/APC to SC/APC connectors feature an angled physical contact (APC) polish, providing superior return loss performance (>60 dB) and minimal insertion loss (<0.2 dB). The simplex configuration (1 fibre) is ideal for point-to-point links. The cable jacket is made of LSZH (Low Smoke Zero Halogen) material, coloured yellow for easy identification, and has a 3.0 mm diameter for flexibility and durability. With a minimum bend radius of 30 mm and robust construction rated for 500 mating cycles, this cable is built to last in both indoor and data centre environments.

Advantages

This BlueOptics patch cable offers exceptional optical performance with typical insertion loss below 0.2 dB and return loss greater than 60 dB, ensuring minimal signal degradation. The LSZH jacket provides enhanced safety by reducing toxic and corrosive emissions in case of fire. The 3-metre length offers flexibility in patching between equipment without excess slack. The APC polish reduces back reflection, making it ideal for high-precision applications such as FTTx and CATV.

Suitable for

• Data centre fibre patching
• Telecommunications networks
• FTTx (Fibre to the x) installations
• CATV and broadcast systems
• High-speed single-mode transmission up to 10 Gbps and beyond

Key specifications

• Product Type: Fibre Optic Patch Cable
• Fibre Type: Single Mode (OS2)
• Connector A: LC/APC
• Connector B: SC/APC
• Cable Length: 3 Metres
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Insertion Loss (Typical): <0.2 dB
• Return Loss (Typical): >60 dB
• Minimum Bend Radius: 30 mm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability: 500 Mating Cycles
• Core Diameter: 9 µm
• Cladding Diameter: 125 µm
• Standards: RoHS, CE, IEC 61754, TIA/EIA-604

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate cable management to maintain bend radius. This cable is compatible with all standard LC/APC and SC/APC interfaces.
