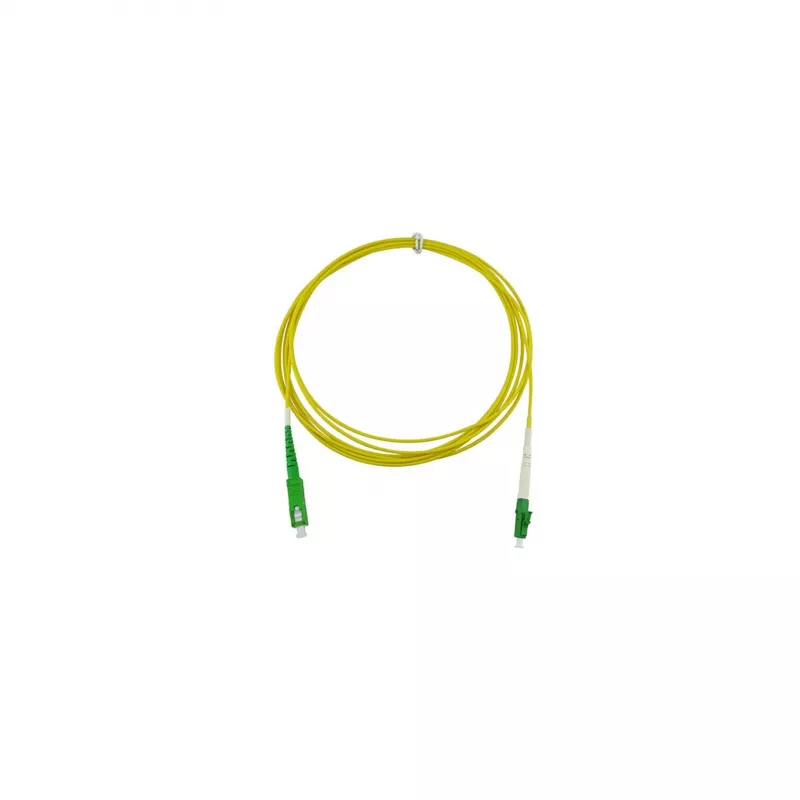

BlueOptics Simplex kuitu-patchkaapeli LC/APC–SC/APC Singlemode OS2 7,5 m keltainen

The BlueOptics Simplex fibre optic patch cable is a high-performance single mode OS2 cable designed for reliable data transmission in telecommunications and data networks. With LC/APC to SC/APC connectors and a length of 7.5 metres, it ensures low insertion loss and high return loss for critical applications.

Advantages

This patch cable offers exceptional signal integrity with typical insertion loss ≤0.3 dB and return loss ≥60 dB. The APC polish minimises back reflection, making it ideal for high-bandwidth and long-distance links. The LSZH jacket provides safety in enclosed spaces, reducing toxic fumes in case of fire.

Suitable for

• FTTx and PON networks
• Data centre interconnects
• Telecommunication rooms
• CATV and broadband systems
• Any single mode fibre application requiring low loss

Key specifications

• Fibre Mode: Single Mode OS2
• Connectors: LC/APC to SC/APC
• Length: 7.5 metres
• Core/Cladding: 9/125 µm
• Insertion Loss: ≤0.3 dB typical
• Return Loss: ≥60 dB typical
• Jacket: LSZH, Yellow
• Wavelengths: 1310nm, 1550nm
• Attenuation: ≤0.35 dB/km @1310nm, ≤0.25 dB/km @1550nm
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure connectors are clean before installation. Use appropriate cable management to avoid bending beyond the minimum bend radius. This cable is compatible with all standard LC/APC and SC/APC ports.
