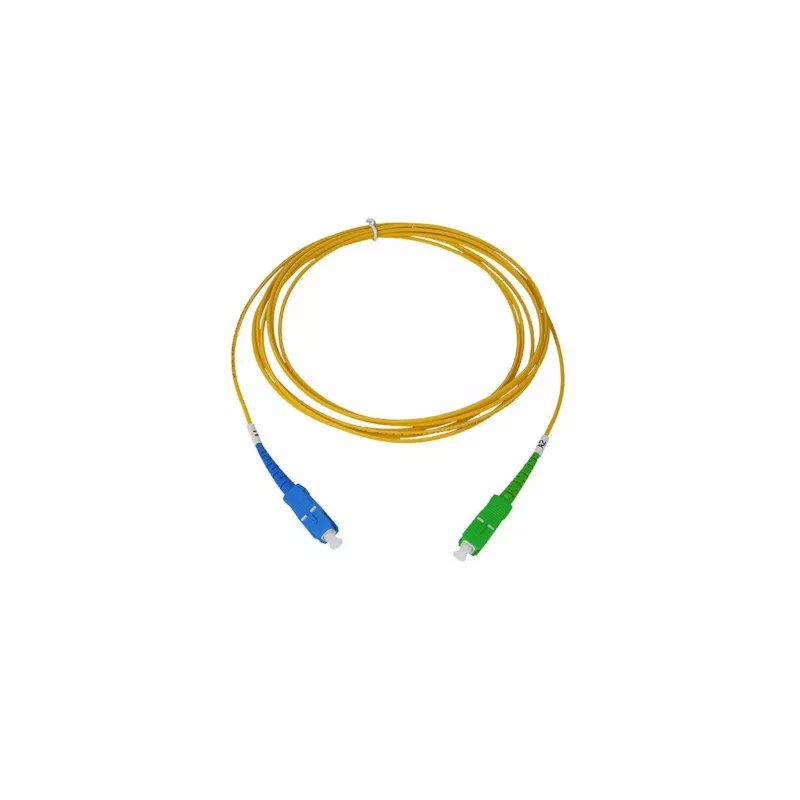

BlueOptics Simplex kuitu-patchkaapeli SC-UPC/SC-APC Singlemode 2 m

The BlueOptics Simplex Fibre Optic Patch Cable SC-UPC/SC-APC Singlemode 2 Metres is a high-performance fibre optic cable designed for reliable singlemode connections. With SC/UPC on one end and SC/APC on the other, it ensures low insertion loss and high return loss, making it ideal for FTTH, data centres, and telecommunication networks.

Advantages

This patch cable offers excellent signal integrity with insertion loss <0.3 dB and return loss >50 dB (UPC) and >60 dB (APC). The LSZH jacket provides safety in confined spaces, and the yellow colour ensures easy identification. Simplex design with 9/125 µm core/cladding meets OS2 standards.

Suitable for

• Fibre-to-the-Home (FTTH) installations
• Data centre patching
• Telecommunication networks
• Singlemode fibre optic connections

Key specifications

• Connector A: SC/UPC
• Connector B: SC/APC
• Fibre Mode: Singlemode OS2
• Cable Length: 2 Metres
• Core/Cladding: 9/125 µm
• Cable Diameter: 3.0 mm
• Jacket: LSZH, Yellow
• Insertion Loss: <0.3 dB
• Return Loss: >50 dB (UPC), >60 dB (APC)
• Operating Temperature: -20°C to +70°C

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate cable management to avoid bending beyond the minimum bend radius.
