BlueOptics simplex kuitupatchkaapeli LC-UPC/LC-APC yksimuoto OS2 5 m keltainen

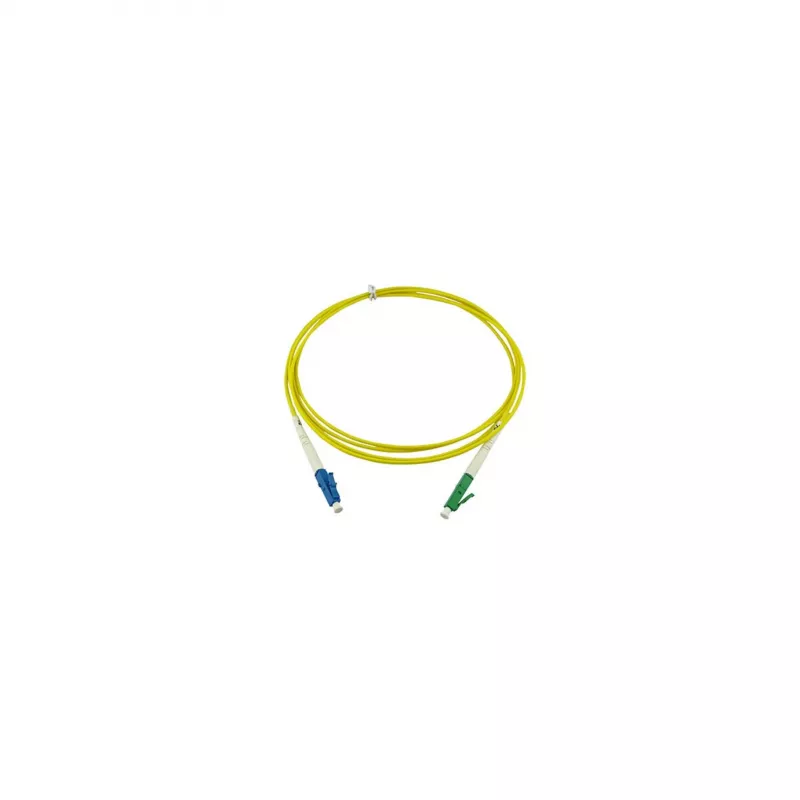

The BlueOptics SFP2121BU5MS is a high-quality simplex fibre optic patch cable designed for reliable single-mode connections. Featuring LC/UPC to LC/APC connectors, this 5-meter cable ensures low insertion loss and high return loss, making it ideal for FTTH, data centers, and telecommunications networks. The LSZH jacket provides safety in enclosed spaces, while the bend-insensitive G.657.A1 fibre allows for tight installations.

Advantages

This cable offers exceptional performance with typical insertion loss <0.25 dB and return loss >50 dB (UPC) and >60 dB (APC). The bend-insensitive fibre minimizes signal degradation in tight bends, and the LSZH jacket ensures low smoke and halogen-free operation for safety. Zirconia ceramic ferrules guarantee precise alignment and durability.

Suitable for

• FTTH (Fiber to the Home) installations
• Data center patching
• Telecommunications networks
• LAN and WAN connections
• Any single-mode fibre application requiring low loss

Key specifications

• Connector A: LC/UPC
• Connector B: LC/APC
• Fibre Mode: Single Mode (OS2)
• Fibre Core/Cladding: 9/125 µm
• Fibre Type: G.657.A1 (Bend-Insensitive)
• Cable Configuration: Simplex
• Length: 5 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Insertion Loss (Typical): <0.25 dB
• Return Loss (UPC): >50 dB
• Return Loss (APC): >60 dB
• Operating Temperature: -20°C to +70°C
• Minimum Bend Radius: 10 mm
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with all standard LC interfaces. For longer runs, consider BlueOptics OS2 cables in various lengths.
