BlueOptics simplex kuitupatchkaapeli SC-APC/SC-APC yksimuoto 3 metriä

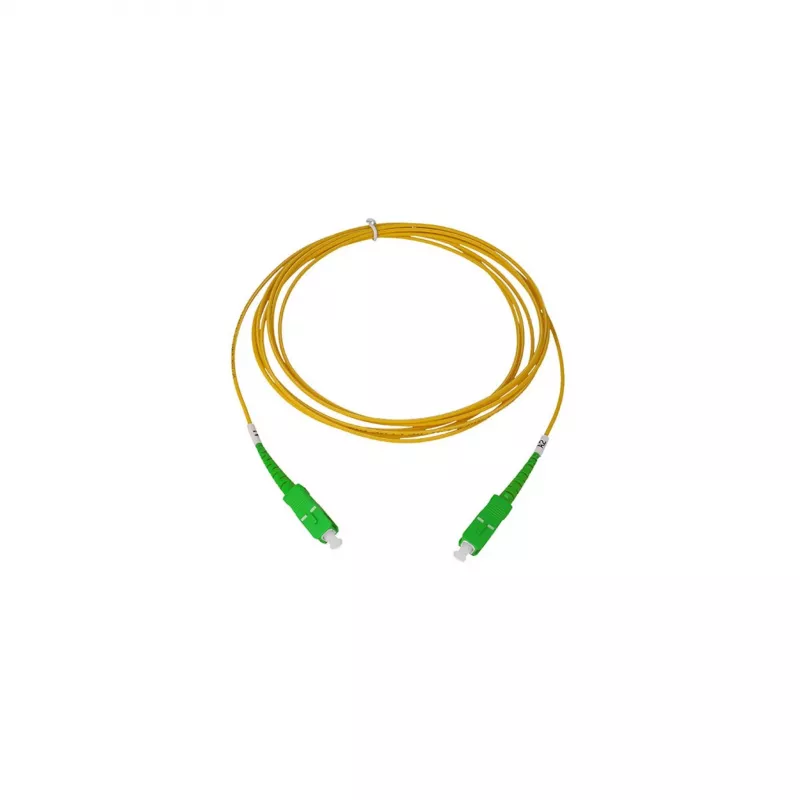

The BlueOptics Simplex Fibre Optic Patch Cable SC-APC/SC-APC Singlemode 3 Metres is a high-performance, singlemode fibre optic patch cable designed for reliable data transmission in telecommunications, data centres, and FTTH networks. Featuring SC-APC connectors on both ends, this cable ensures low insertion loss and high return loss, making it ideal for applications requiring minimal signal reflection.

Advantages

This cable offers exceptional signal integrity with an insertion loss of ≤0.2 dB and return loss of ≥60 dB, ensuring efficient and stable connections. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, reducing toxic fumes and smoke in case of fire. The 3.0 mm cable diameter and 9/125 µm core/cladding ensure compatibility with standard singlemode equipment.

Suitable for

• Telecommunications networks
• Data centres and server rooms
• FTTH (Fibre to the Home) installations
• LAN and WAN connections
• Test and measurement equipment

Key specifications

• Cable Type: Simplex
• Fibre Type: Singlemode (OS2)
• Connector Type 1: SC-APC
• Connector Type 2: SC-APC
• Cable Length: 3 Metres
• Core/Cladding Diameter: 9/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Insertion Loss (IL): ≤ 0.2 dB
• Return Loss (RL): ≥ 60 dB
• Operating Wavelengths: 1310 nm, 1550 nm
• Ferrule Material: Zirconia Ceramic
• Cable Diameter: 3.0 mm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Minimum Bend Radius (Dynamic): 30 mm
• Minimum Bend Radius (Static): 60 mm
• Standards Compliance: IEC 61754-4, TIA/EIA-604-3, RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard SC-APC interfaces and is suitable for both indoor and outdoor use when properly protected.
