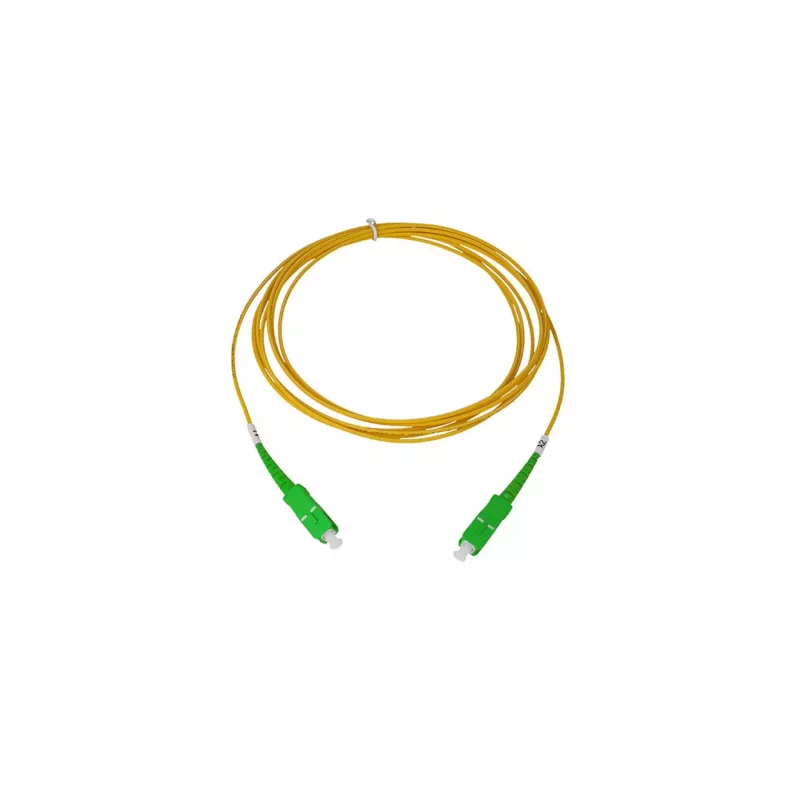

BlueOptics simplex kuitupatchkaapeli SC-APC/SC-APC yksimuoto 7,5 metriä

The BlueOptics Simplex Fibre Optic Patch Cable SC-APC/SC-APC Singlemode 7.5 Metres is a high-performance fibre optic cable designed for reliable data transmission in demanding network environments. Engineered with precision, this cable ensures low insertion loss and high return loss, making it ideal for critical applications in data centers, telecommunications, FTTH, and LAN networks.

Advantages

This patch cable offers exceptional signal integrity with typical insertion loss ≤0.2 dB and return loss ≥60 dB, ensuring minimal signal degradation. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, reducing toxic fumes and smoke in case of fire. The 9/125 µm core/cladding diameter supports singlemode transmission over long distances with high bandwidth.

Suitable for

• Data Centers requiring high-speed, reliable connections
• Telecommunications infrastructure
• FTTH (Fiber to the Home) installations
• Local Area Networks (LAN) with singlemode fiber

Key specifications

• Cable Type: Fibre Optic Patch Cable
• Fiber Mode: Singlemode (OS2)
• Fiber Count: Simplex (1 Fiber)
• Connector A: SC/APC
• Connector B: SC/APC
• Cable Length: 7.5 meters (24.6 ft)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Fiber Core/Cladding Diameter: 9/125 µm
• Insertion Loss (Typical): ≤ 0.2 dB
• Return Loss (Typical): ≥ 60 dB
• Ferrule Material: Zirconia Ceramic
• Cable Diameter: 3.0 mm
• Operating Wavelengths: 1310 nm, 1550 nm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, CE, IEC 61754-4, TIA/EIA-604-3A
• Polish Type: Angled Physical Contact (APC)
• Minimum Bend Radius: 30 mm

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard SC/APC interfaces and is suitable for both indoor and outdoor use when protected. Pair with BlueOptics transceivers for best results.
