BlueOptics simplex kuitupatchkaapeli SC/APC - SC/APC yksimuoto OS2 50 m vihreä

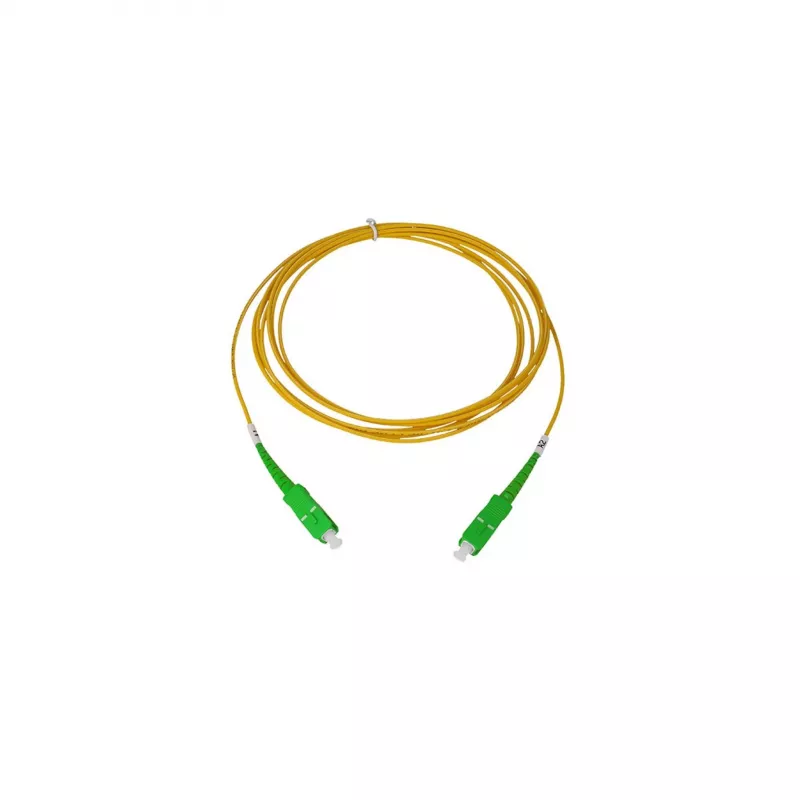

The BlueOptics SFP2222BU50MM is a high-quality simplex fibre optic patch cable designed for reliable single-mode connections. With SC/APC connectors on both ends and a length of 50 metres, this cable is ideal for FTTH, telecommunications, and data centre applications where low insertion loss and high return loss are critical.

Advantages

This cable offers exceptional performance with typical insertion loss ≤0.3 dB and return loss ≥60 dB, ensuring minimal signal degradation. The LSZH jacket provides safety in enclosed spaces, while the 3.0 mm diameter and 10 mm minimum bend radius allow for flexible installation.

Suitable for

• Fibre-to-the-home (FTTH) networks
• Telecommunications infrastructure
• Data centre interconnects
• CATV and broadband systems

Key specifications

• Connector Type: SC/APC to SC/APC
• Fibre Mode: Single Mode (OS2)
• Core/Cladding: 9/125 µm
• Length: 50 m
• Jacket Colour: Green
• Jacket Material: LSZH
• Insertion Loss: ≤0.3 dB (typical)
• Return Loss: ≥60 dB (typical)
• Operating Temperature: -20°C to +70°C
• Standards: ITU-T G.657.A1, RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with all standard SC/APC ports. Pair with BlueOptics transceivers for guaranteed compatibility.
