BlueOptics X66211B-1-BL InfiniBand-kaapeli 1 m QSFP28 musta

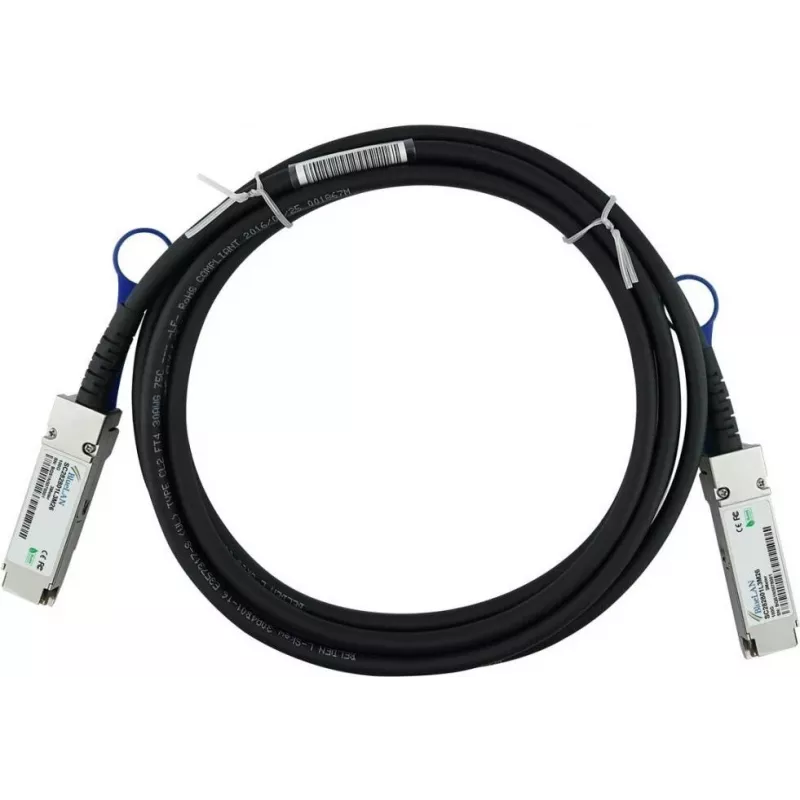

The BlueOptics X66211B-1-BL is a high-performance InfiniBand Direct Attach Copper (DAC) cable designed for demanding data center and high-performance computing environments. With a length of 1 meter and QSFP28 connectors on both ends, this passive copper cable delivers reliable 100 Gb/s EDR connectivity while maintaining low power consumption and excellent signal integrity.

Advantages

This cable offers a cost-effective and energy-efficient solution for short-range InfiniBand connections. Its passive design ensures zero power consumption for signal conditioning, and the copper construction provides durability and low latency. The 30 AWG wire gauge and PVC jacket make it flexible yet robust for rack installations.

Suitable for

• High-Performance Computing (HPC) clusters
• Data center interconnects
• Enterprise networking
• Storage Area Networks (SAN)

Key specifications

• Cable Type: InfiniBand Direct Attach Copper (DAC)
• Connector Type: QSFP28 to QSFP28
• Length: 1 meter (3.3 feet)
• Data Rate: 100 Gb/s (EDR)
• Passive/Active: Passive
• Conductor Material: Copper
• Wire Gauge: 30 AWG
• Impedance: 100 Ohm
• Jacket Material: PVC
• Color: Black
• Compliance: IBTA Compliant, RoHS Compliant
• Hot-Swappable: Yes
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Power Consumption: < 0.5W

Recommendations

For optimal performance in high-speed InfiniBand networks, ensure that both connected devices support QSFP28 interfaces and EDR data rates. This cable is ideal for short rack-to-rack or server-to-switch connections where low latency and high bandwidth are critical.
