Bopla CN 45 AK-SET DIN-kiskokotelo 45 x 75 x 109,5 mm ABS vaaleanharmaa RAL 7035 65004510.HMT1

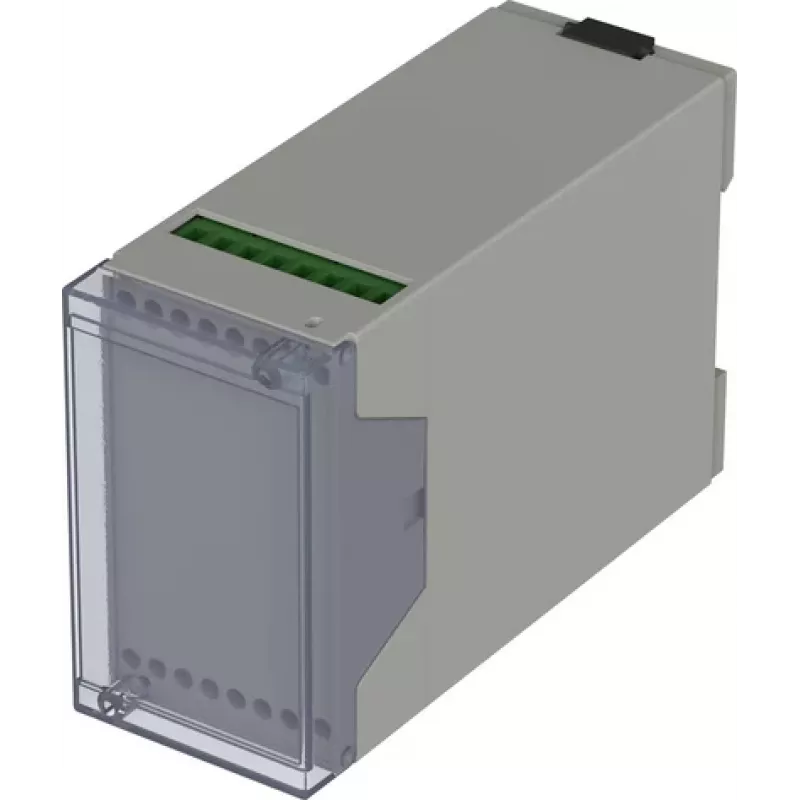

DIN rail enclosure for electronic components, control systems, and automation applications. The CN 45 AK-SET features a compact 45 mm width, 75 mm height, and 109.5 mm depth, constructed from light grey ABS (RAL 7035) for durability and easy integration into control cabinets.

Advantages

ABS housing provides impact resistance and electrical insulation. Light grey RAL 7035 colour blends with standard industrial equipment. DIN rail mounting per EN 60715 allows quick installation without additional hardware.

Suitable for

• Terminal blocks and small controllers
• Interface electronics and signal conditioners
• Automation modules and IoT gateways

Key specifications

• Material: ABS
• Colour: Light grey (RAL 7035)
• External dimensions: 45 x 75 x 109.5 mm (W x H x D)
• Mounting: DIN rail (EN 60715)
• Series: CN 45
• Model designation: AK-SET

Recommendations

Verify internal clearances for your PCB and components before ordering. For outdoor or harsh environments, consider additional sealing or a different enclosure material.
