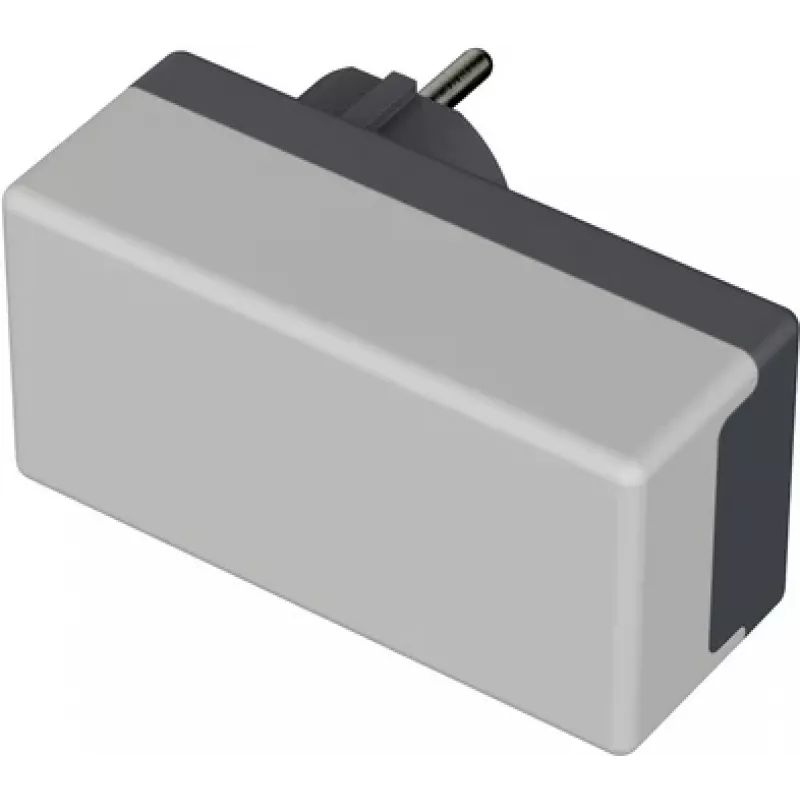

Bopla CombiNorm-Connect yleiskotelo 100 x 50 x 40 mm, ABS, vaaleanharmaa, IP65 43420104

IP65-rated protection in a compact 100 x 50 x 40 mm enclosure made from light grey ABS (RAL 7035). The screw-on lid with polyurethane gasket seals out dust and water jets, while internal bosses provide secure mounting for PCBs or mounting plates.

Overview

The Bopla 43420104 is part of the CombiNorm-Connect series, designed for electronics, connectors, and industrial control applications. Its ABS housing offers a balance of impact resistance and light weight, with a UL 94 HB flammability rating. The enclosure operates reliably from -40 °C to +80 °C, making it suitable for demanding environments.

What stands out

• IP65 ingress protection against dust and water jets
• Durable ABS construction with light grey finish (RAL 7035)
• Four lid screws ensure a secure, gasketed seal
• Internal bosses for easy PCB or plate mounting
• Wide operating temperature range: -40 °C to +80 °C

Technical details

• External dimensions: 100 mm (L) x 50 mm (W) x 40 mm (H)
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light Grey (RAL 7035)
• Ingress protection: IP65
• Flammability rating: UL 94 HB
• Lid fastening: 4 screws
• Gasket material: Polyurethane
• Nominal wall thickness: 2.5 mm

Our verdict

A versatile and robust enclosure for industrial electronics, combining IP65 sealing with easy mounting and a wide temperature tolerance.
