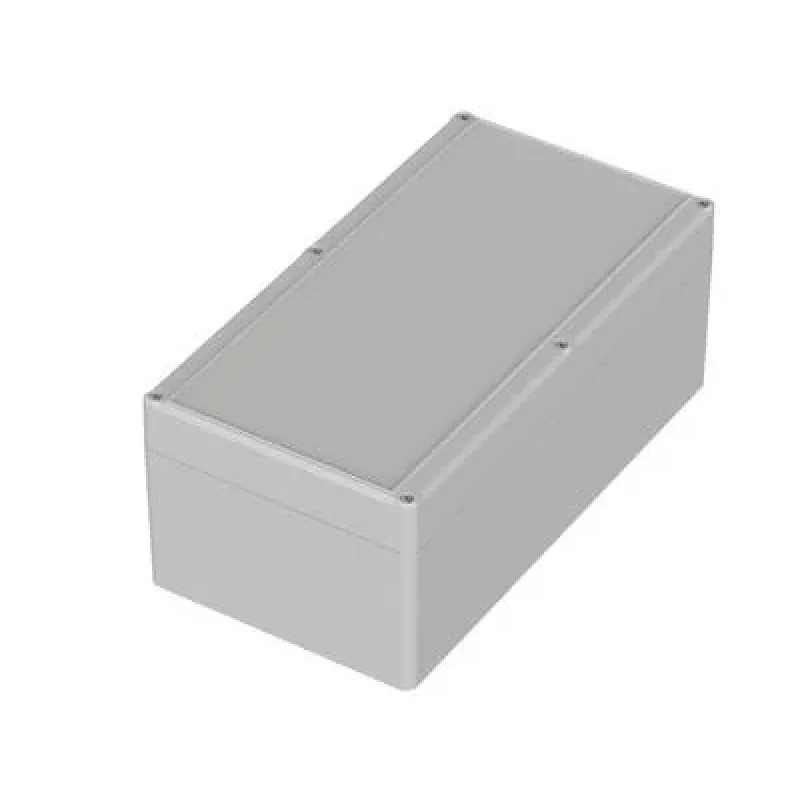

Bopla EUROMAS EM 247 F yleiskotelo, polykarbonaatti, vaaleanharmaa, 300 x 160 x 120 mm 62247400

When electronics need protection in harsh environments, a robust enclosure is essential. The Bopla EUROMAS EM 247 F provides a secure housing for electrical and electronic components, safeguarding them from dust, water, and mechanical impact.

Who is it for

This enclosure is ideal for industrial control systems, IoT devices, and outdoor electronics that require reliable protection and easy access for maintenance.

Main features

• Made from polycarbonate, offering high impact resistance and UV stability.
• Light grey colour (RAL 7035) for a clean, professional appearance.
• External dimensions: 300 x 160 x 120 mm, providing ample space for components.
• IP65 rated, ensuring protection against dust and water jets.
• IK07 impact resistance, suitable for demanding environments.
• Operating temperature range from -40 °C to +80 °C, allowing use in extreme conditions.
• Flammability rating UL 94 V-0, meeting strict fire safety standards.
• Lid secured with six stainless steel screws for a tight seal.
• Polyurethane foam gasket ensures reliable sealing.
• Halogen-free and RoHS compliant.
• Wall mountable via integrated mounting channels.

Specifications

• Enclosure type: Universal enclosure
• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• External dimensions (L x W x H): 300 x 160 x 120 mm
• Protection class: IP65
• Impact resistance: IK07
• Operating temperature: -40 °C to +80 °C
• Flammability rating: UL 94 V-0
• Lid fastening: Stainless steel screws
• Gasket material: Polyurethane (PU) foam
• UV resistance: Yes
• Halogen-free: Yes
• RoHS compliant: Yes
• Mounting type: Wall mountable
• Number of lid screws: 6
• Product series: EUROMAS

Tips

For optimal sealing, ensure the gasket is clean and undamaged before closing the lid. Tighten the screws evenly to maintain the IP65 rating.
