Bopla EUROMAS T 219 yleiskotelo 160 x 80 x 60 mm ABS vaaleanharmaa IP65 03219000

IP65-rated protection in a compact 160 x 80 x 60 mm ABS enclosure. The EUROMAS T 219 combines dust-tight sealing with impact resistance up to IK07, making it a reliable housing for electronics in demanding environments.

Overview

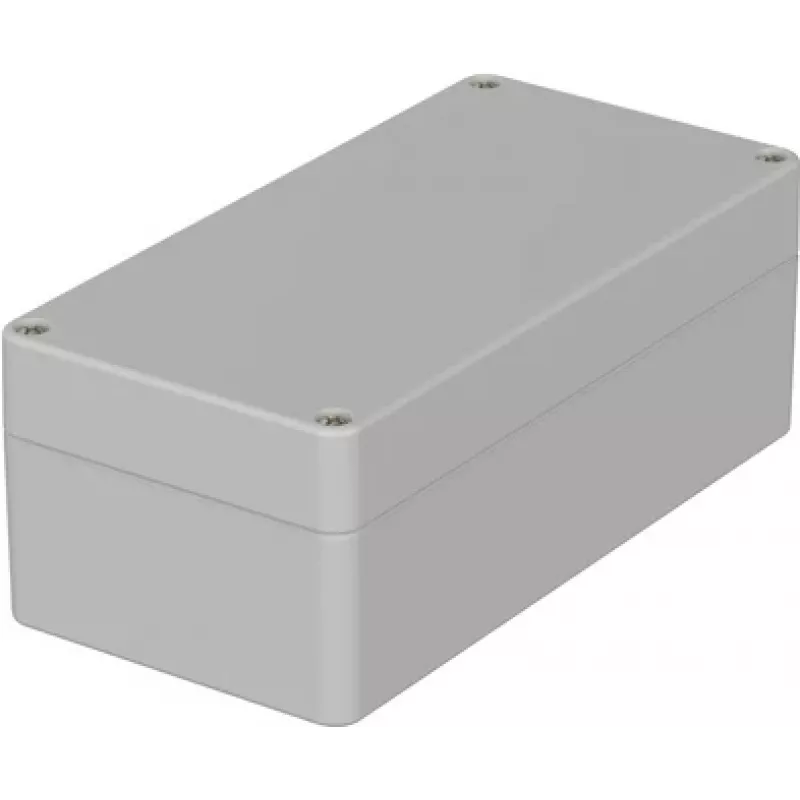

The Bopla EUROMAS T 219 is a universal enclosure designed for versatile mounting of PCBs and electronic components. Its light grey ABS body (RAL 7035) offers a clean, professional appearance while providing robust protection. The enclosure features a polyurethane gasket and captive stainless steel screws for a secure, tool-accessible seal.

What stands out

• IP65 protection against dust and water jets
• Impact resistance rated IK07
• UL 94 V-0 flammability rating for enhanced safety
• Wide operating temperature range: -40 °C to +80 °C
• Integrated bosses for easy PCB or mounting plate installation

Technical details

• External dimensions: 160 mm length, 80 mm width, 60 mm height
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Lid fastening: captive stainless steel screws
• Gasket material: polyurethane (PUR)
• Mounting: wall mountable via screw channels

Our verdict

A solid choice for industrial electronics needing reliable sealing and easy customization. The EUROMAS T 219 balances durability with a clean design, ideal for control units, sensors, and interface boxes.
