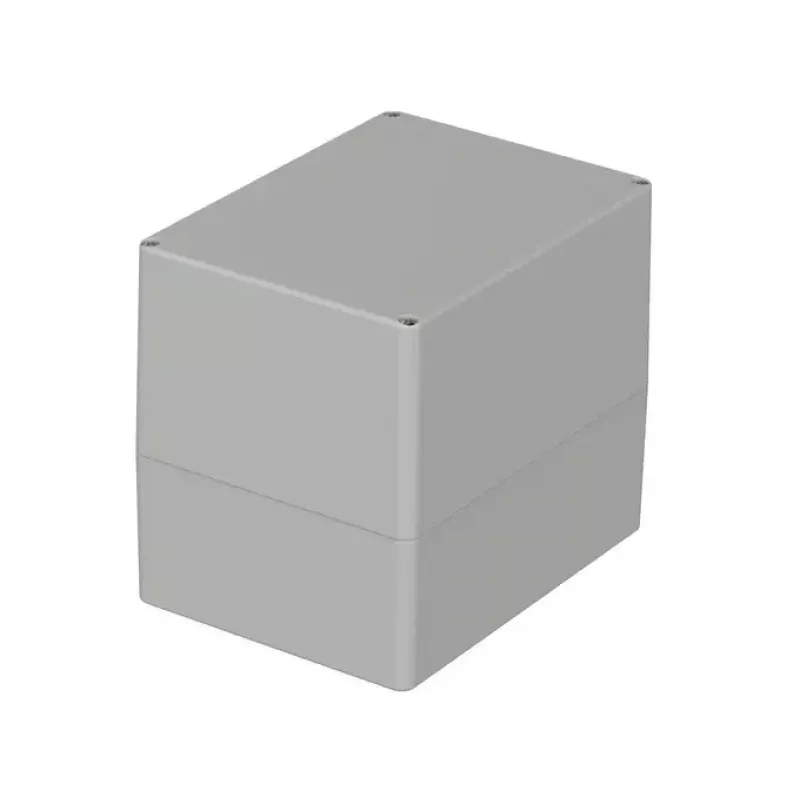

Bopla EUROMAS T 246 yleiskotelo 160 x 120 x 140 mm ABS vaaleanharmaa IP65 03246000

IP65-rated protection in a compact 160 x 120 x 140 mm ABS housing — the Bopla EUROMAS T 246 keeps electronics safe from dust and water jets.

Overview

The Bopla EUROMAS T 246 is a universal enclosure crafted from light grey ABS (RAL 7035). With external dimensions of 160 mm length, 120 mm width, and 140 mm height, it offers a practical volume for control electronics, sensors, or connection interfaces. The screw-on lid is secured with four polyamide screws and sealed with a polyurethane foam gasket, ensuring reliable protection in demanding environments.

What stands out

• IP65 ingress protection against dust and low-pressure water jets
• Impact resistance rated IK07 for mechanical robustness
• Halogen-free ABS material with UL 94 HB flammability rating
• Integrated mounting bosses for easy installation
• Operating temperature range from -40°C to +70°C

Technical details

• Series: EUROMAS T
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light Grey (RAL 7035)
• External dimensions: 160 x 120 x 140 mm (L x W x H)
• Lid fastening: Screw-on lid with 4 polyamide screws
• Gasket material: Polyurethane (PU) foam
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 HB
• Halogen-free: Yes
• RoHS compliant: Yes

Our verdict

A versatile enclosure for industrial and outdoor applications where reliable sealing and durability are essential.
