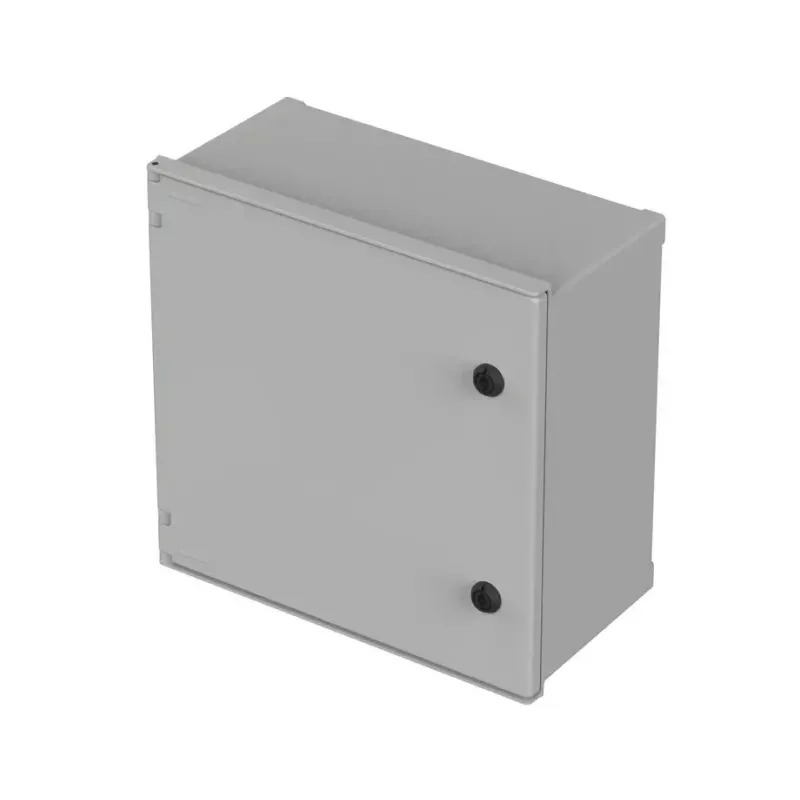

Bopla PS 442 seinäkotelo 400 x 400 x 200 mm vaaleanharmaa (RAL 7035) 42144200

Industrial and electrical installations often demand a robust enclosure that protects sensitive components from dust, moisture, and mechanical impact. The Bopla PS 442 wall-mount enclosure provides a secure housing solution with its spacious interior and durable polystyrene construction.

Who is it for

This enclosure is intended for system integrators, panel builders, and maintenance engineers who need a reliable enclosure for automation, control systems, and electrical distribution in demanding environments.

Main features

• Wall-mount design with external mounting brackets for easy installation
• Light grey (RAL 7035) polystyrene body for corrosion resistance
• External dimensions: 400 mm height, 400 mm width, 200 mm depth
• Screw-on lid with stainless steel screws for secure closure
• Polyurethane foam gasket for enhanced sealing
• Integrated mounting bosses for DIN rails or mounting plates
• Halogen-free and silicone-free

Specifications

• Material: Polystyrene (PS)
• Colour: Light Grey (RAL 7035)
• Protection class: IP66
• Impact resistance: IK07
• Operating temperature range: -40 °C to +70 °C
• Flammability rating: UL 94 V-2
• Lid type: Screw-on lid
• Lid screws material: Stainless steel
• Gasket material: Polyurethane (PU) foam
• Mounting type: External mounting brackets/lugs
• Internal mounting features: Integrated mounting bosses for DIN rails/mounting plates
• Halogen-free: Yes
• Silicone-free: Yes

Tips

When installing, ensure the mounting surface is flat and capable of supporting the enclosure's weight. Use appropriate cable glands to maintain the IP66 protection rating.
