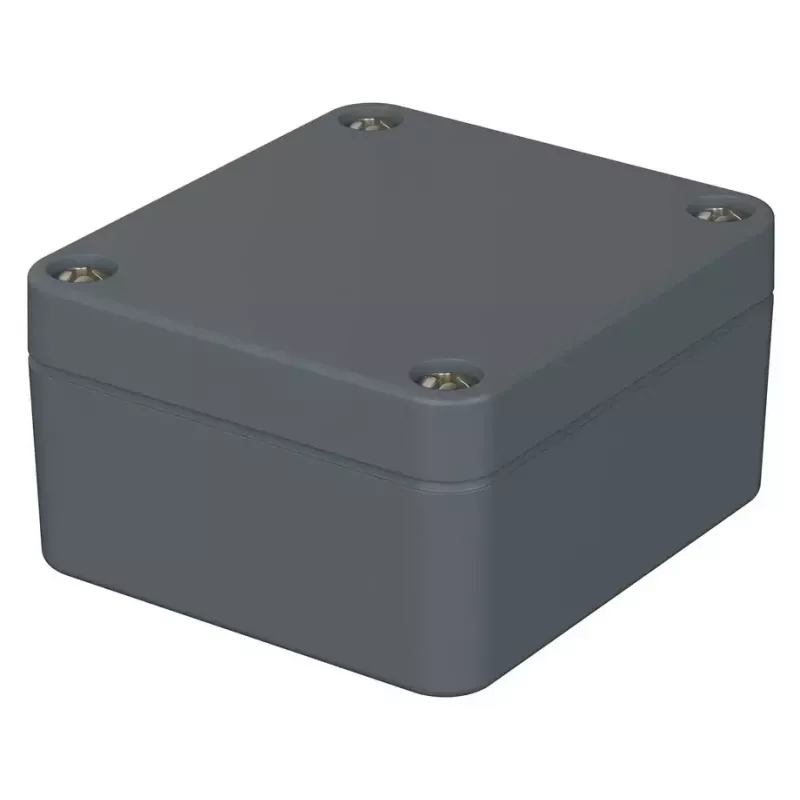

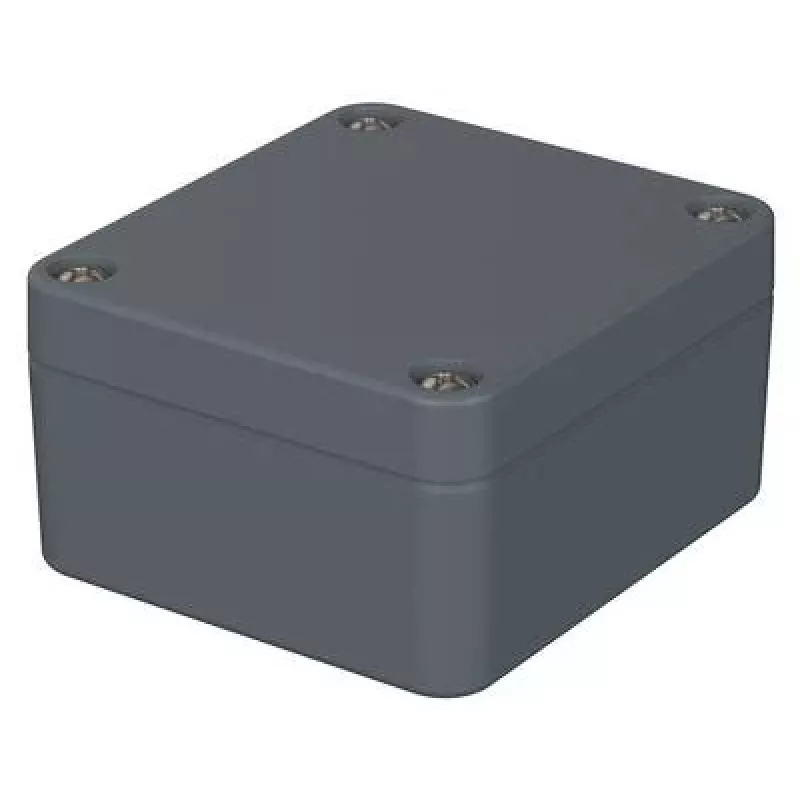

BOPLA yleiskotelo polyamidi hopeanharmaa (RAL 7001) 58 x 64 x 34 PK 101

When electronics need protection from dust, moisture, and mechanical impact, a reliable enclosure is essential. The BOPLA PK 101 universal enclosure in silver grey (RAL 7001) offers a robust housing solution for a wide range of applications, from industrial controls to IoT devices.

Who is it for

This enclosure is ideal for engineers, technicians, and hobbyists who require a durable, IP65-rated enclosure for mounting PCBs and electronic components in demanding environments.

Main features

• Made from high-quality polyamide (PA) for excellent impact resistance and durability.
• Silver grey colour (RAL 7001) with a clean, professional appearance.
• External dimensions: 58 mm width, 64 mm length, 34 mm height.
• IP65 protection against dust and water jets.
• IK07 impact resistance for added mechanical robustness.
• Flammability rating UL 94 V-2 for safety.
• Operating temperature range from -40 °C to +80 °C.
• Lid secured with four stainless steel screws.
• Polyurethane (PUR) gasket ensures a tight seal.
• Integrated screw channels for wall mounting.
• Internal mounting bosses for PCBs and components.
• Halogen-free and RoHS compliant.
• Good UV resistance for outdoor use.

Specifications

• Enclosure Type: Universal Enclosure
• Material: Polyamide (PA)
• Colour: Silver Grey (RAL 7001)
• External Length: 64 mm
• External Width: 58 mm
• External Height: 34 mm
• Protection Class: IP65
• Impact Resistance: IK07
• Flammability Rating: UL 94 V-2
• Operating Temperature Range: -40 °C to +80 °C
• Lid Fastening: 4x Stainless Steel Screws
• Gasket Material: Polyurethane (PUR)
• Mounting Type: Wall mounting via integrated screw channels
• Internal Mounting: Integrated mounting bosses for PCBs/components
• Halogen-free: Yes
• RoHS Compliant: Yes
• UV Resistance: Good

Tips

For outdoor applications, consider additional sealing or a sun shield if prolonged UV exposure is expected. The enclosure's wall mounting channels simplify installation on flat surfaces.
