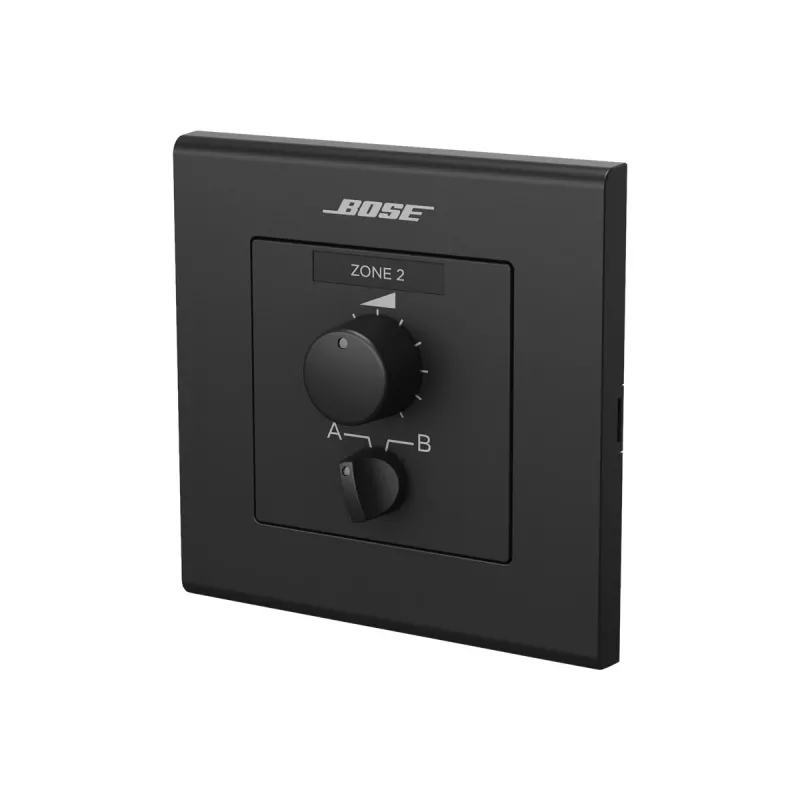

Bose ControlCenter CC-2 vyöhykeohjain - musta

The Bose ControlCenter CC-2 Zone Controller is a professional-grade remote control panel designed for use with Bose ControlSpace processors and amplifiers. It provides intuitive volume and source selection for a single zone, making it ideal for commercial audio installations such as restaurants, retail spaces, and conference rooms.

Advantages

Easy to install in a standard single-gang electrical box, the CC-2 is powered directly via CAT5 cable from the host device, eliminating the need for a separate power supply. The rotary volume knob and A/B source select button offer simple, reliable control for end users.

Suitable for

• Commercial audio systems requiring local zone control
• Integration with Bose ControlSpace ESP-00, ESP-01, FreeSpace DXA 2120, and PowerMatch amplifiers
• Applications where remote volume and source selection are needed

Key specifications

• Controls: Rotary volume knob, A/B source select push button with LED indicator
• Connectivity: RJ-45 Ethernet port for CAT5/CAT6 UTP cable
• Maximum cable length: 152 m (500 ft)
• Power: Powered by host device via CAT5
• Mounting: Standard single-gang electrical box
• Housing material: High-impact plastic
• Color: Black
• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Operating relative humidity: 0% to 90% RH, non-condensing

Recommendations

For optimal performance, use with Bose ControlSpace processors and ensure CAT5/6 cable runs do not exceed 152 meters. The CC-2 is designed for indoor use only.
