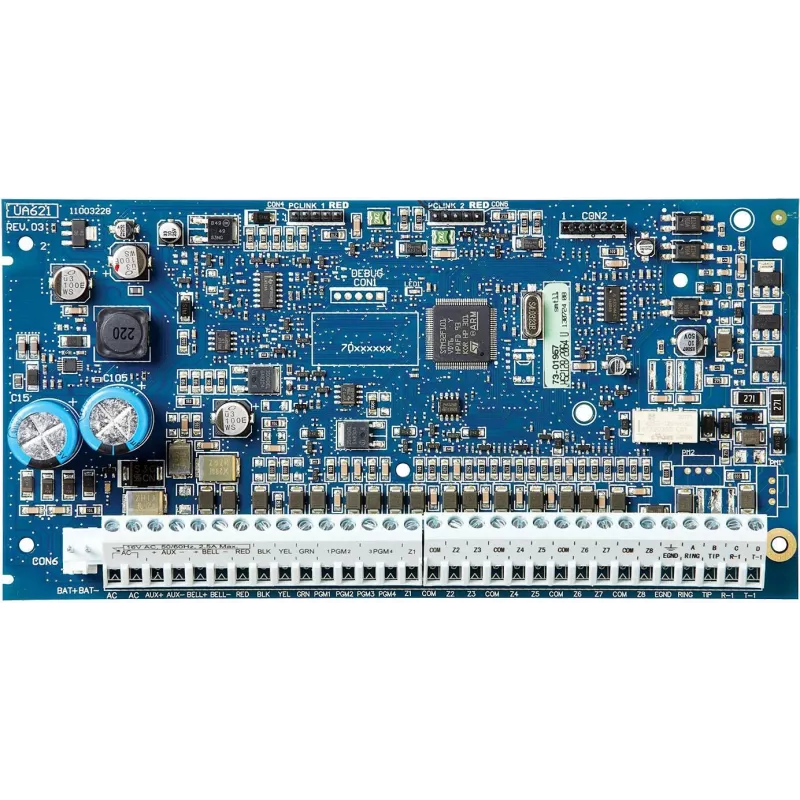

Ohjauspiirilevy DSC HS2128 EU (vain piirilevy, ilman käsikirjaa) MPN 45003

Replacement control panel board for the DSC HS2128 EU security system supplied as board only, without manual or accessories. This printed circuit board is intended to replace the main control board in compatible DSC HS2128 installations and is suitable for technicians or experienced users who perform repairs or board-level replacements. The product is delivered without enclosure, keypad, batteries or documentation and requires correct electrical connections and system configuration after installation.

Advantages

The board-only supply allows quick replacement of a faulty control board without the need to replace the entire enclosure or peripheral components. As a direct-fit replacement for compatible DSC HS2128 systems, it provides the original layout and connector locations for straightforward swapping by a qualified technician. Shipping the component without manuals or extras reduces cost and provides a compact spare part for maintenance purposes.

Suitable for

• Repairing a malfunctioning DSC HS2128 EU alarm control panel where the main board has failed
• Replacing a damaged PCB during on-site servicing by a trained installer
• Use as a spare part in service vehicles or inventory for alarm system maintenance

Key specifications

• Form: replacement printed circuit board for DSC HS2128 series
• Compatibility: designed to match the physical layout and connectors of DSC HS2128 EU control panels
• Supply content: board only, no enclosure, keypad, batteries, wiring harnesses, or printed documentation included
• Installation: requires wiring to power supply, zone inputs, outputs and any communication modules per system requirements
• Intended users: technicians and experienced installers with knowledge of alarm system wiring and configuration

How to use

Power down the system and remove all power sources, including backup batteries, before attempting replacement. Verify compatibility with the existing DSC HS2128 installation, then disconnect all connectors and mounting hardware from the old board. Mount the replacement board in the original location, reconnect all wiring to the corresponding terminals and connectors, and restore main and backup power. After powering up, perform any required system programming, diagnostics, and functional tests to ensure zones, outputs, and communication links operate correctly. If unsure about wiring or configuration procedures, use a qualified service technician.

Recommendations

Only qualified personnel should install or configure this control board. Observe electrostatic discharge (ESD) precautions and use appropriate tools. Test the system thoroughly after installation and follow local regulations for alarm system servicing and electrical work.
