DSC PG8312 PowerG langaton ulko-oven kosketusanturi – IP66, valkoinen/harmaa

With a wireless range of up to 2,000 metres in open air and robust IP66-rated housing, the DSC PG8312 is a professional-grade outdoor contact sensor engineered for reliable perimeter protection. It uses PowerG™ technology, delivering encrypted, interference-resistant communication that keeps your security system responsive in demanding environments.

Overview

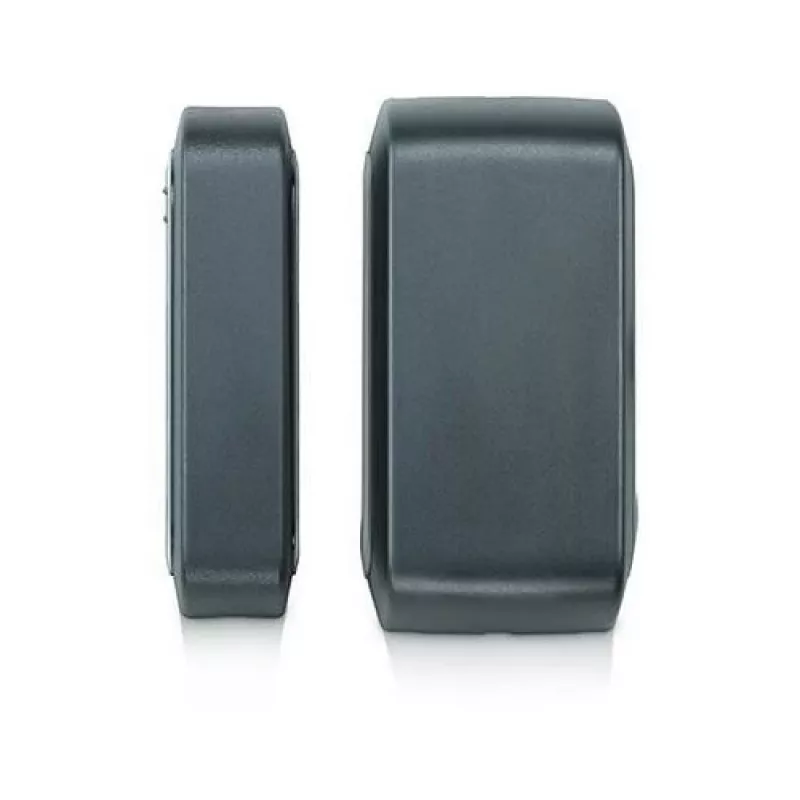

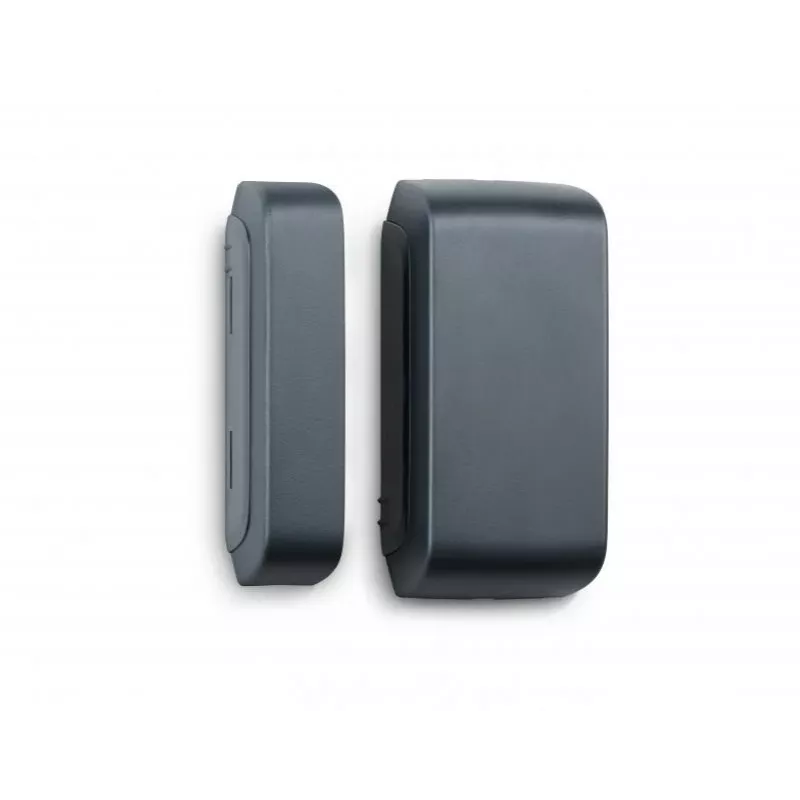

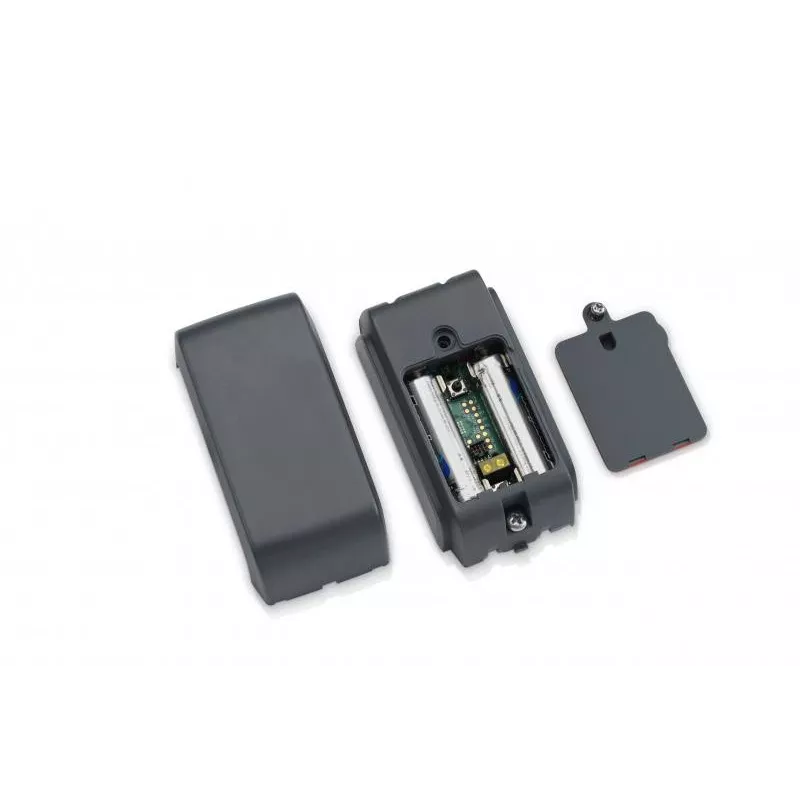

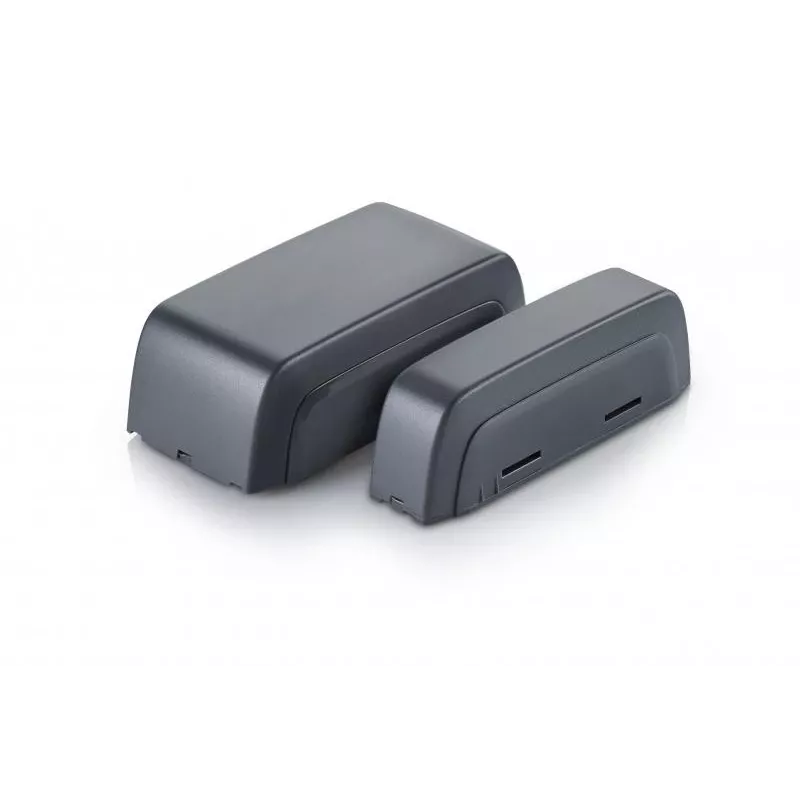

The DSC PG8312 is a battery-powered, surface-mounted magnetic contact designed specifically for outdoor use. It detects the opening and closing of doors, gates, windows, and other movable structures, transmitting alerts instantly to compatible PowerG control panels. Its rugged weatherproof construction ensures dependable operation in rain, snow, dust, and extreme temperatures, making it an ideal choice for residential, commercial, and industrial security installations.

What stands out

• PowerG wireless technology: 128-bit AES encryption, TDMA and FHSS for reliable, secure communication.
• Exceptional range of up to 2,000 m line of sight (700 m in residential environments).
• IP66 ingress protection for use in harsh outdoor conditions.
• Long battery life – up to 5 years from a single CR123A lithium battery.
• Tamper protection on front cover and wall mount.
• Wide gap tolerance of up to 45 mm for flexible mounting.
• Supports an optional wired input for additional monitoring.
• Supervised with regular check-in signals to ensure connectivity.

Technical details

• Operating frequency: 868 MHz
• Wireless range: up to 2000 m line of sight / 700 m residential
• Battery type: 1 x CR123A lithium battery
• Battery life: up to 5 years
• Ingress protection: IP66
• Operating temperature: -30°C to 60°C
• Sensor type: magnetic contact (reed switch)
• Auxiliary input: 1 x wired input (NC/NO)
• Tamper protection: front cover and wall tamper
• Gap tolerance: up to 45 mm
• Compatibility: DSC PowerG enabled control panels (e.g., PowerSeries Neo, Iotega, Qolsys IQ Panel 2+)
• Encryption: 128-bit AES encryption
• Mounting type: surface mount
• Colour: white/grey
• Supervision: yes, regular supervision signals

Our verdict

A top-tier outdoor contact sensor that combines exceptional range, robust weatherproofing, and PowerG security. Perfect for protecting gates, sheds, and perimeter doors in any climate.
