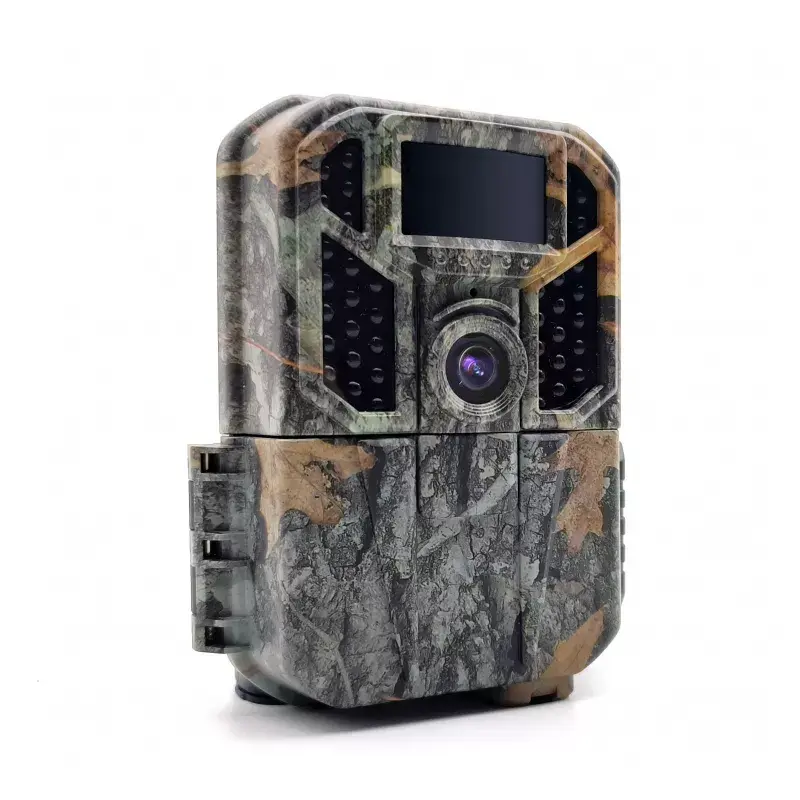

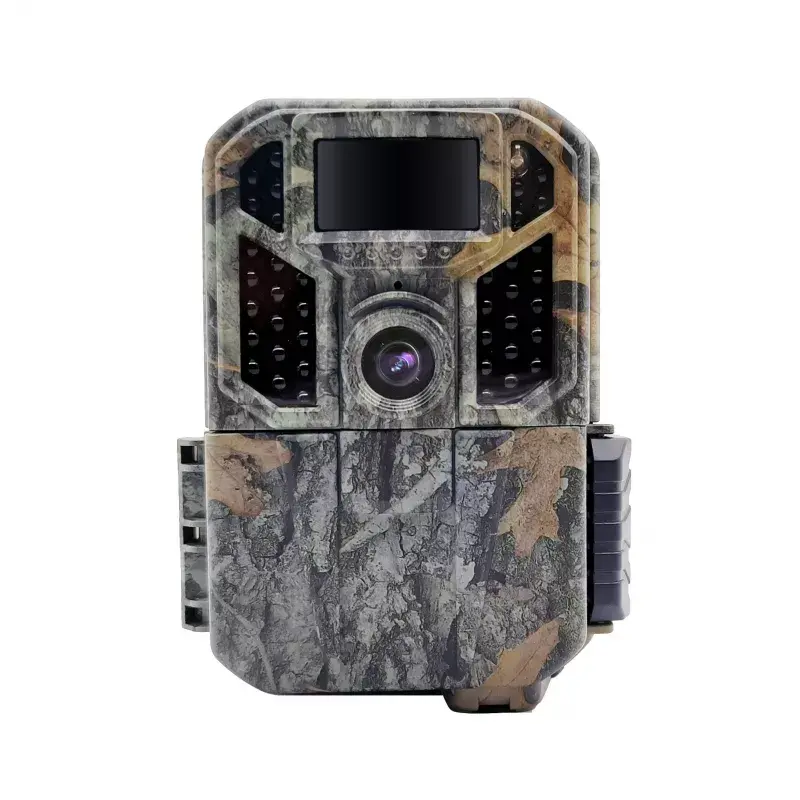

Valvontakamera Braun Photo Technik Schwarz400 Dual WiFi IP66

The Braun Photo Technik Black400 Dual WiFi surveillance camera is a weatherproof (IP66) trail and property monitoring camera with dual-band Wi‑Fi, a 48 MP image option and video recording up to 1440P. It supports live preview, remote control and file transfer via a free smartphone app using either 2.4 GHz for extended range or 5 GHz for faster transfers. The camera stores media on a microSD card (up to 256 GB) and can also connect to PC or TV via USB‑C. It is powered by six AA batteries with an approximate standby time of eight months and can optionally run from a 9 V/1 A mains adapter.

Advantages

The Black400 Dual WiFi offers flexible wireless access with selectable 2.4 GHz and 5 GHz Wi‑Fi bands for direct smartphone connection, plus app control for viewing, downloading and deleting recordings without removing the memory card. Day and night capture is supported by infrared LEDs and a 4 MP CMOS sensor for night sensitivity while images can be recorded up to 48 MP and video at up to 1440P. On‑device operation is possible using the control panel and 2.0" TFT colour display, and the unit is built to withstand outdoor conditions (IP66) with a wide operating temperature range.

Suitable for

• Wildlife monitoring and photo trapping
• Remote property and building surveillance
• Perimeter checks and access route observation
• Long-term outdoor monitoring installations

Key specifications

• Image resolution: up to 48 MP (selectable down to 4 MP)
• Video resolution: up to 1440P (also 1080P and 720P at 30 fps)
• Night vision: infrared LEDs with detection range up to 20 m
• Motion sensor: passive infrared (PIR) with three sensitivity levels, 90° detection angle, trigger time ≈ 0.6 s
• Storage: microSD card support up to 256 GB
• Connectivity: dual‑band Wi‑Fi (2.4 GHz / 5 GHz), USB‑C for PC/TV
• Display: built‑in 2.0" TFT colour screen for local setup and review
• Power: six AA batteries (standby ~8 months) or optional 9 V / 1 A adapter
• Environmental protection and range: IP66 rating, operating temperature −20 °C to +60 °C
• Additional features: integrated microphone and speaker, time‑lapse mode, password protection, date/time/moon phase and temperature display

How to use

Install batteries or connect the 9 V/1 A adapter, insert a microSD card (max. 256 GB) and mount the camera using the supplied strap or tree mount. Power on the device and configure main settings either on the 2.0" colour display or via the smartphone app after creating a direct Wi‑Fi connection (choose 2.4 GHz for longer range or 5 GHz for faster transfer). Use the app for live preview, manual photo/video capture and to download or delete files; recording resolution and other parameters can be adjusted from the app or directly on the camera menu.

Recommendations

For reliable detection and image quality, position the camera with a clear line of sight within the PIR detection range (up to 20 m) and select the appropriate Wi‑Fi band based on distance to your smartphone. Use a weather‑rated microSD card and check battery level periodically; for long deployments consider the mains adapter. Secure the device with a strap or mount and enable password protection in the app to prevent unauthorized access.
