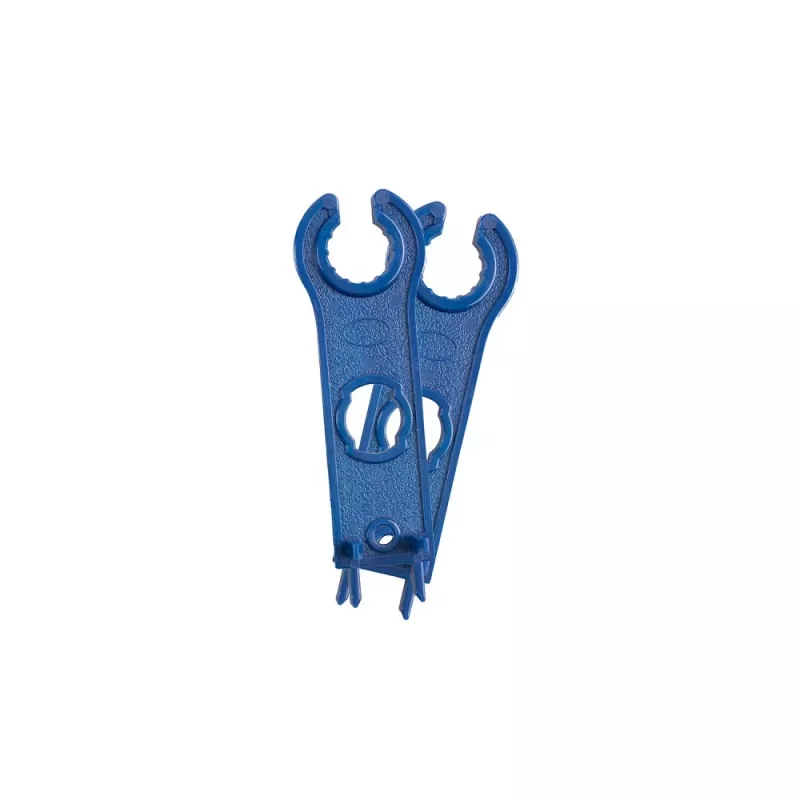

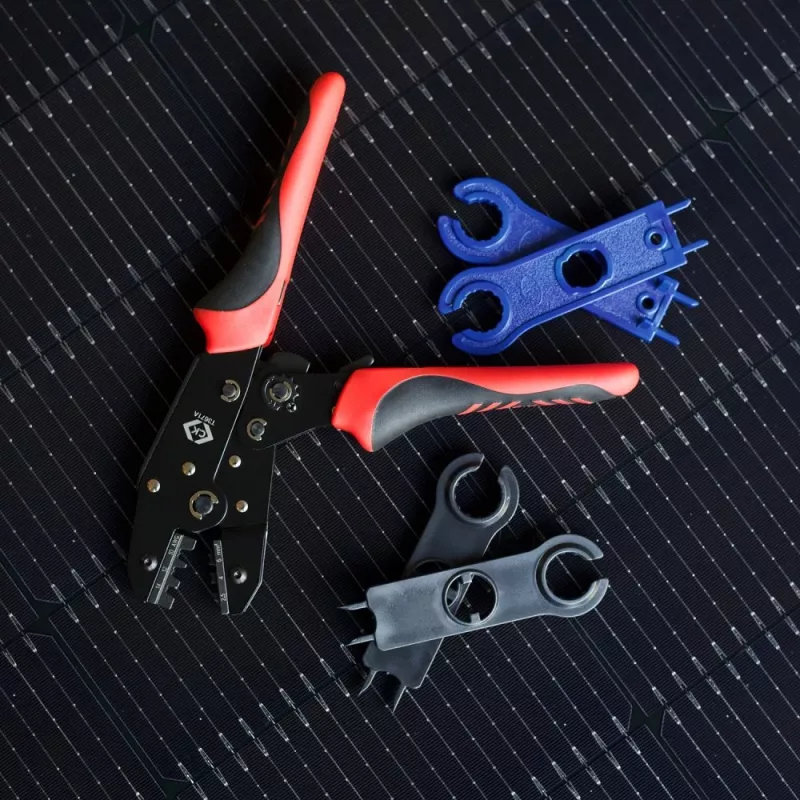

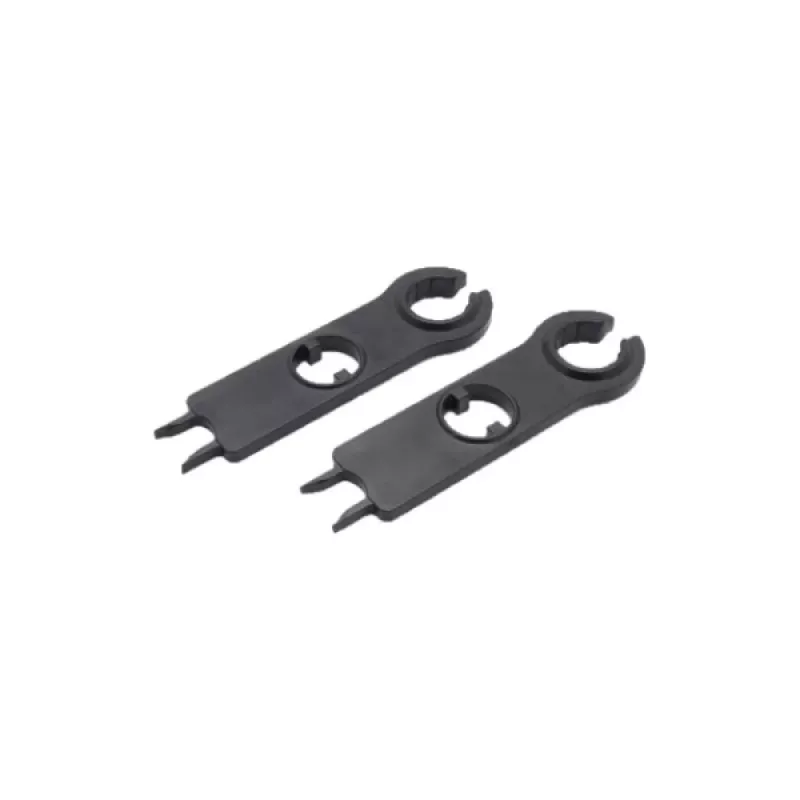

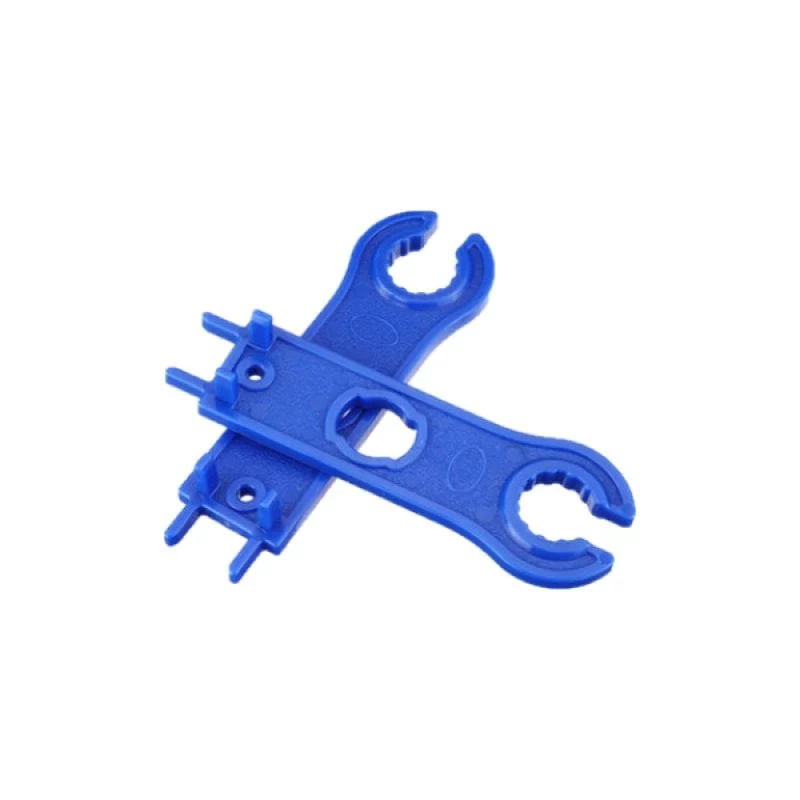

C.K Tools T4348 MC4 aurinkopaneeliliitin-avainsarja 1000V (2 kpl)

Working with MC4 solar connectors often means dealing with tight locking nuts and cable glands that are awkward to grip with standard pliers. The C.K Tools T4348 spanner set is made specifically for assembling and disassembling MC4 connectors, giving you a secure hold without damaging the connector body.

Who is it for

Solar installers and maintenance technicians who regularly connect or disconnect photovoltaic panels. The set is also useful for anyone building or servicing solar arrays where MC4 connectors are the standard.

Main features

• Open-end jaw fits MC4 locking nuts and cable glands
• Insulated to 1000V AC / 1500V DC for safe working on live DC circuits
• VDE certified for electrical safety
• High-grade insulating polyamide construction
• Ergonomic non-slip grip
• UV and chemical resistant
• Set of two spanners (red and black for easy identification)

Specifications

• Tool type: MC4 solar connector spanner
• Application: Assembly and disassembly of MC4 connectors
• Insulation rating: 1000V AC / 1500V DC
• Safety standard: VDE certified
• Quantity: 2 pieces
• Material: High-grade insulating polyamide
• Connector compatibility: MC4 (Multi-Contact 4)
• Colour: Red/Black
• Operating temperature range: -20°C to +70°C
• Weight per spanner: approx. 50g

Tips

Always check the insulation for damage before use on live circuits. The two colours help you keep track of which spanner is used for the male or female connector if you choose to assign them that way.
