Chief RXT3 TV-teline/jalusta 2,49 m (98") musta

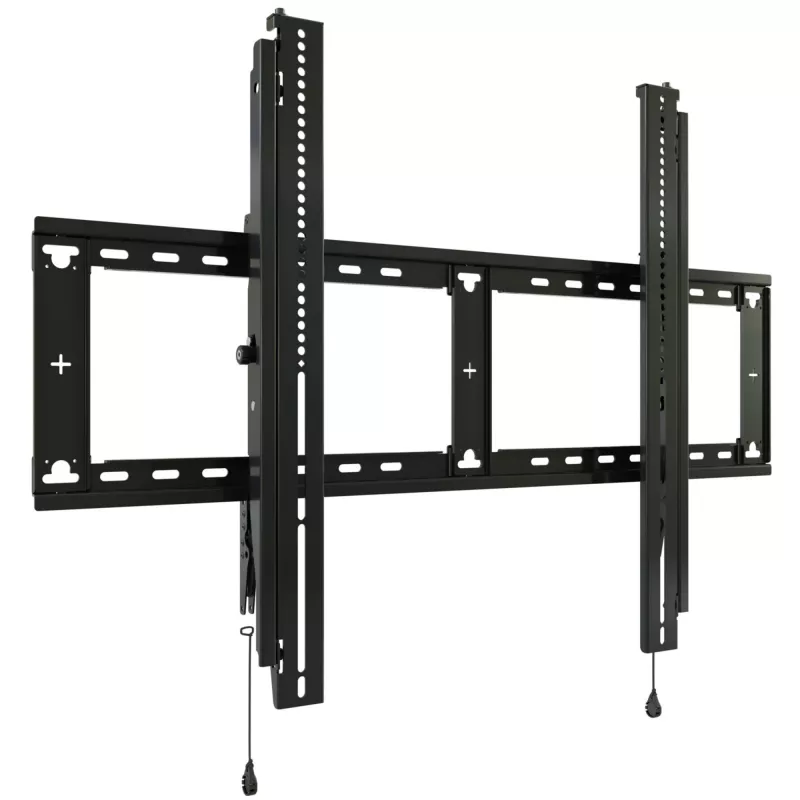

The Fit series RXT3 is an extra-large tilt display wall mount designed for 49" to 98" screens and supports VESA patterns up to 915 x 650 mm. It provides a low-profile installation with a maximum load capacity of 113.4 kg and complies with UL and TUV safety standards.

Advantages

The Chief RXT3 mount offers post-installation leveling of up to 19 mm (0.75"), a robust wall plate able to support up to 113.4 kg (250 lbs), a slim 64 mm (2.5") depth for a neat appearance, and a tilt range up to 12° to reduce glare and optimize viewing angle. The mount is certified to UL and TUV standards for added safety assurance.

Suitable for

• Large-format displays in conference rooms and auditoriums
• Digital signage in retail and public spaces
• Home theater installations with 49"–98" screens
• Single-display professional AV setups

Key specifications

• Model: Chief RXT3 (Fit series)
• Supported screen sizes: 49"–98"
• Maximum VESA: 915 x 650 mm
• Maximum weight capacity: 113.4 kg (250 lbs)

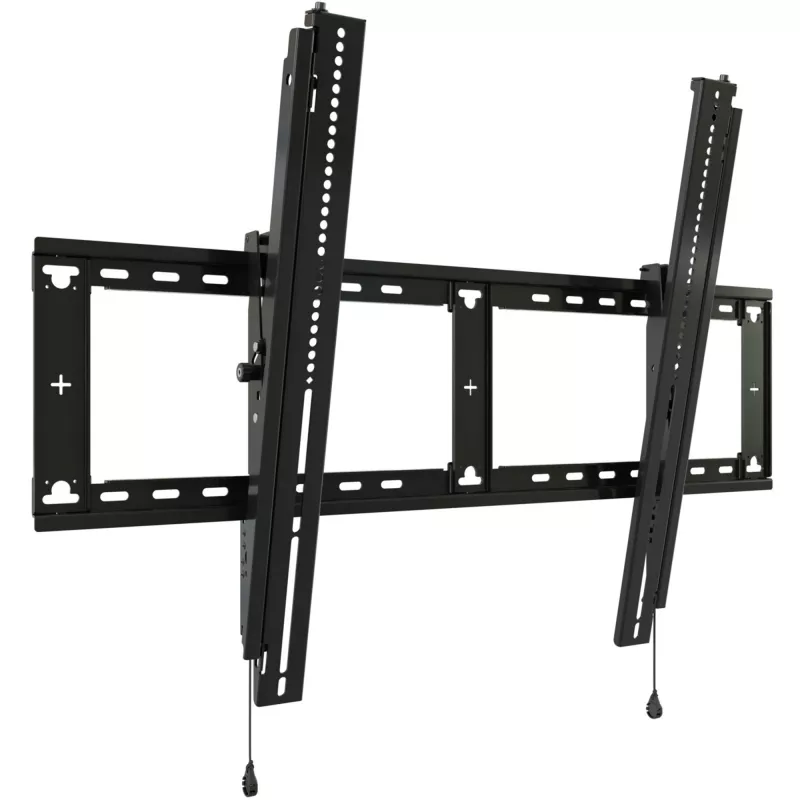

• Tilt range: up to 12° (−12° to 0°)
• Post-installation leveling: 19 mm (0.75")
• Profile depth: 64 mm (2.5")
• Color: Black
• Certifications: UL and TUV approved

How to use

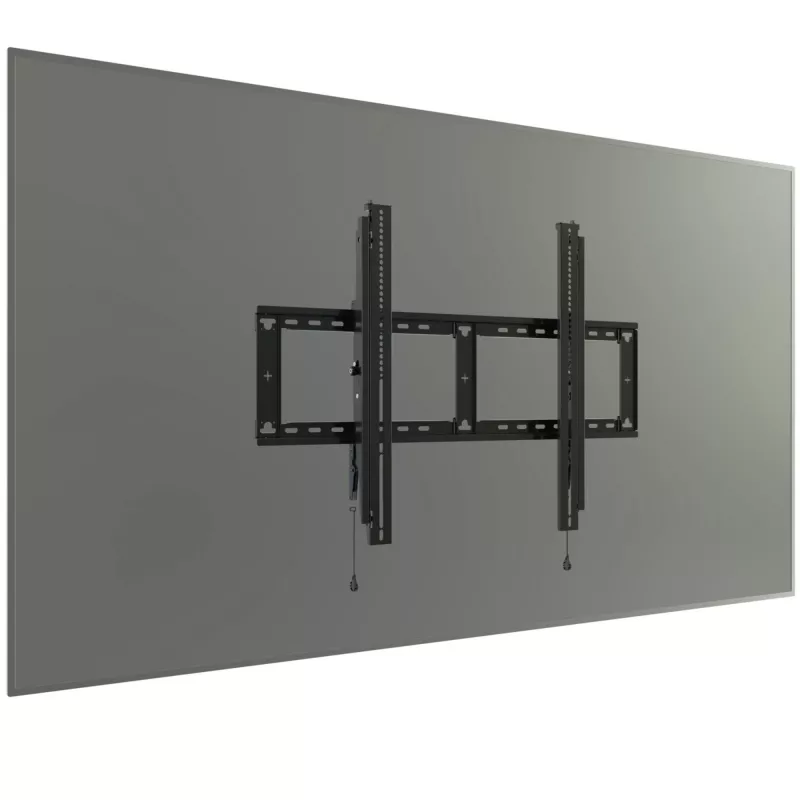

Attach the wall plate to a suitable structural surface following local building codes and the manufacturer’s mounting instructions. Mount the display to the RXT3 adapter plate using the compatible VESA holes (up to 915 x 650 mm) and secure all fasteners. Use the built-in post-installation leveling adjustment (up to 19 mm) to level the display and set the desired tilt (up to 12°). Verify all connections and load capacity before regular use.

Recommendations

Ensure the wall structure and fasteners are rated to support the combined weight of the mount and display (up to 113.4 kg). For safety and warranty compliance, follow Chief installation instructions and applicable local codes; consider professional installation for heavy or high-mounted displays.
