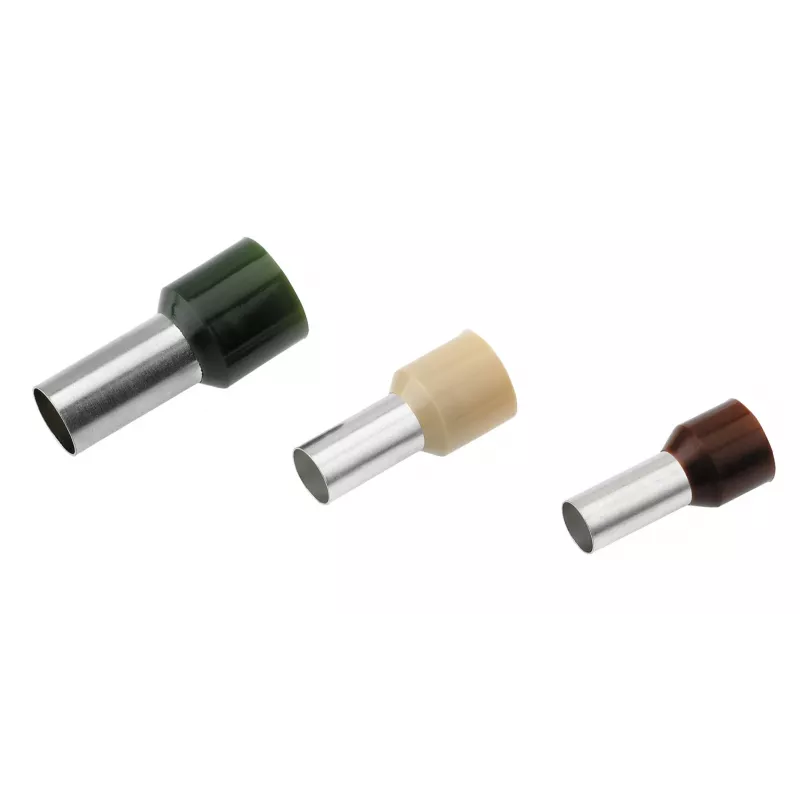

Cimco 187101 johdinpääteholkki 0,14 mm² osittain eristetty ruskea 100 kpl

For terminating fine-stranded conductors, a reliable wire end sleeve prevents fraying and ensures a secure connection. The Cimco 187101 provides a clean, professional finish for 0.14 mm² conductors, with partial insulation in brown for easy identification.

Who is it for

Electricians, panel builders, and maintenance technicians who work with fine-stranded wires in control cabinets, terminal blocks, and industrial installations.

Main features

• Partially insulated design with brown polypropylene insulation for colour coding
• Electrolytic copper sleeve, tin-plated for corrosion resistance and reliable conductivity
• Designed for fine-stranded conductors with a cross-section of 0.14 mm² (26 AWG equivalent)
• Pack of 100 pieces in a bag, ready for high-volume use

Specifications

• Product type: Wire end sleeve (ferrule)
• Insulation type: Partially insulated
• Conductor cross-section: 0.14 mm²
• Insulation colour: Brown
• Sleeve material: Electrolytic copper, tin-plated
• Insulation material: Polypropylene (PP)
• Sleeve length (metal part): 8 mm
• Total length: 14 mm
• Operating temperature: -40 °C to +105 °C
• Rated voltage: 600 V
• Flammability rating: UL94 V-0
• Compliance: DIN 46228 Part 4
• Packaging: Bag, 100 pieces

Tips

Use a crimping tool designed for wire end sleeves to achieve a gas-tight connection. The brown colour indicates the 0.14 mm² size, helping to avoid mix-ups in multi-conductor wiring.
