Cinch (RCA)-liitäntämoduuli DELOCK 90964 kullattu

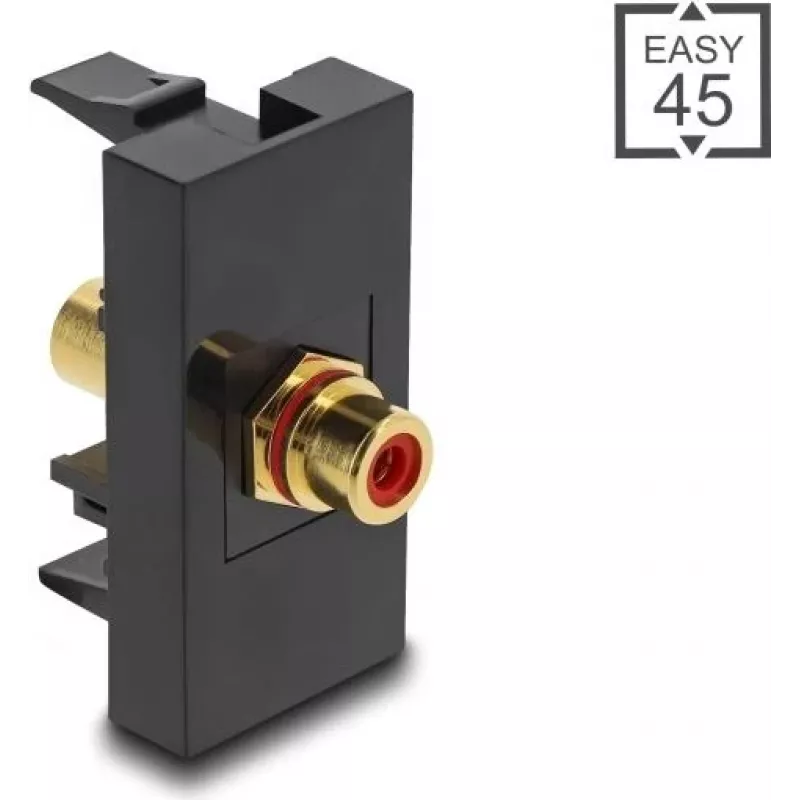

The DELOCK Cinch (RCA) Socket Module 90964 Gold Plated is a panel-mount RCA connector designed for integration into wall plates, custom enclosures and AV equipment panels. With gold-plated contacts and a standard RCA interface, the module provides a durable connection point for analogue audio and composite video signals. Its form factor is intended for secure mounting and straightforward wiring in home audio/video systems, installations and repair tasks.

Advantages

The gold-plated contacts reduce oxidation and maintain low-resistance signal paths over time, supporting consistent audio and video quality. The panel-mount design offers mechanical stability and a clean installation appearance. The module is compatible with standard RCA plugs, enabling broad interoperability with consumer and professional AV equipment. Materials and finish are selected for reliable long-term use in residential and light-commercial installations.

Suitable for

Key specifications

How to use

Install the socket module into the prepared cutout on the wall plate or equipment panel and secure it according to the mounting method provided. Connect the internal wiring to the socket terminals ensuring correct polarity for audio channels or proper signal/ground connections for video. After wiring, verify mechanical security and test with RCA cables and connected equipment to confirm signal transmission and channel integrity.

Recommendations

For best long-term performance, tighten mounting fasteners securely but avoid over-torquing. Use properly shielded RCA cables and maintain clean mating surfaces on plugs and sockets. If the module is installed in an environment prone to humidity or dust, consider additional protection behind the panel or periodic inspection to ensure consistent contact quality.
