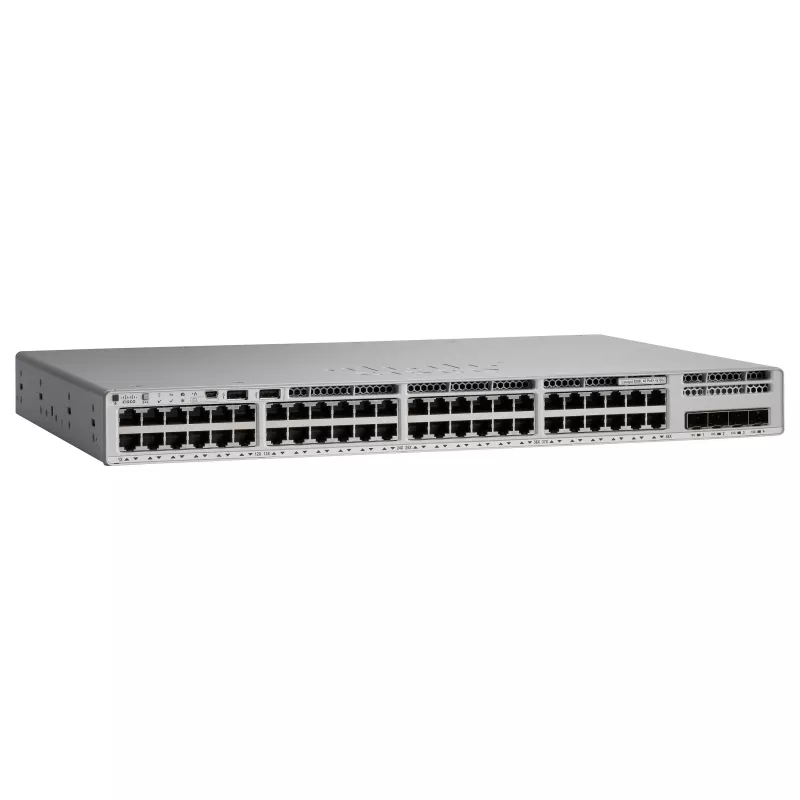

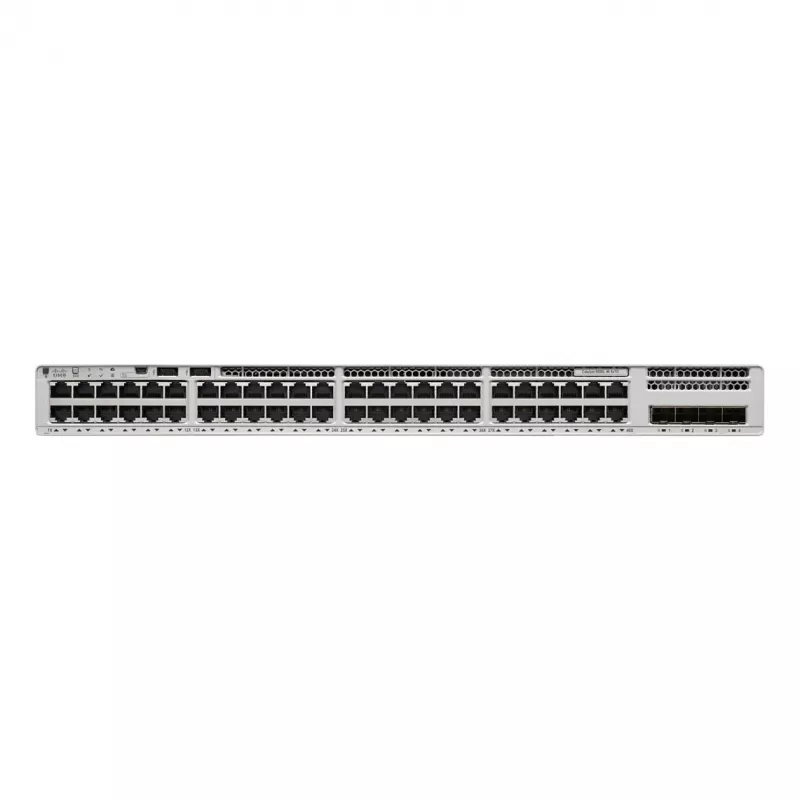

Cisco Catalyst 9200L 48-porttinen PoE+ 4x1G Network Essentials -kytkin

The Cisco Catalyst 9200L 48-Port PoE+ switch stands out with its 740 W PoE budget, allowing you to power dozens of devices without extra injectors. It combines fixed enterprise-class switching with optional stacking and advanced security in a 1U form factor.

Highlights

• 48 Gigabit Ethernet ports with PoE+ (IEEE 802.3at) and 740 W total power budget
• 4 x 1G SFP uplink ports for fiber connectivity
• Layer 3 features with Network Essentials software
• 104 Gbps switching capacity and 154.76 Mpps forwarding rate
• 16K MAC address table and 1024 VLANs
• 8 GB RAM and 16 GB flash for reliable performance
• Optional StackWise-160 stacking for simplified management

In daily use

Deploy this switch in access closets or branch offices where PoE devices like IP phones, cameras, and access points need centralized power. The four SFP uplinks connect to distribution switches or routers, while advanced QoS and security features keep traffic flowing smoothly. With Cisco IOS XE, you get a familiar CLI and programmability for automation.

Full specifications

• Device type: L3 managed network switch
• Form factor: Rack-mountable 1U
• Ports: 48 x 10/100/1000Base-T (PoE+)
• Uplink ports: 4 x 1 Gigabit Ethernet SFP
• PoE standard: IEEE 802.3at (PoE+)
• PoE power budget: 740 W
• Switching capacity: 104 Gbps
• Forwarding rate: 154.76 Mpps
• MAC address table size: 16000 entries
• Jumbo frame support: 9198 bytes
• VLANs supported: 1024
• Routing protocols: OSPF, EIGRP, RIP, PIM-SM, PIM-DM, PBR, RIPng
• Management protocols: SNMP, RMON, Telnet, HTTP, HTTPS, SSH, CLI
• Advanced features: QoS, ACL, DHCP snooping, STP, RSTP, MSTP, LACP, EEE, FNF, 802.1X, MACsec, SD-Access
• RAM: 8 GB
• Flash memory: 16 GB
• Software package: Network Essentials
• Operating system: Cisco IOS XE
• Power supply: Internal AC 120/230 V (50/60 Hz)
• Stacking: Yes (Optional StackWise-160)

Final note

The Catalyst 9200L 48P delivers enterprise-grade switching with high PoE density, ideal for modern workspaces that demand reliability and scalability.
