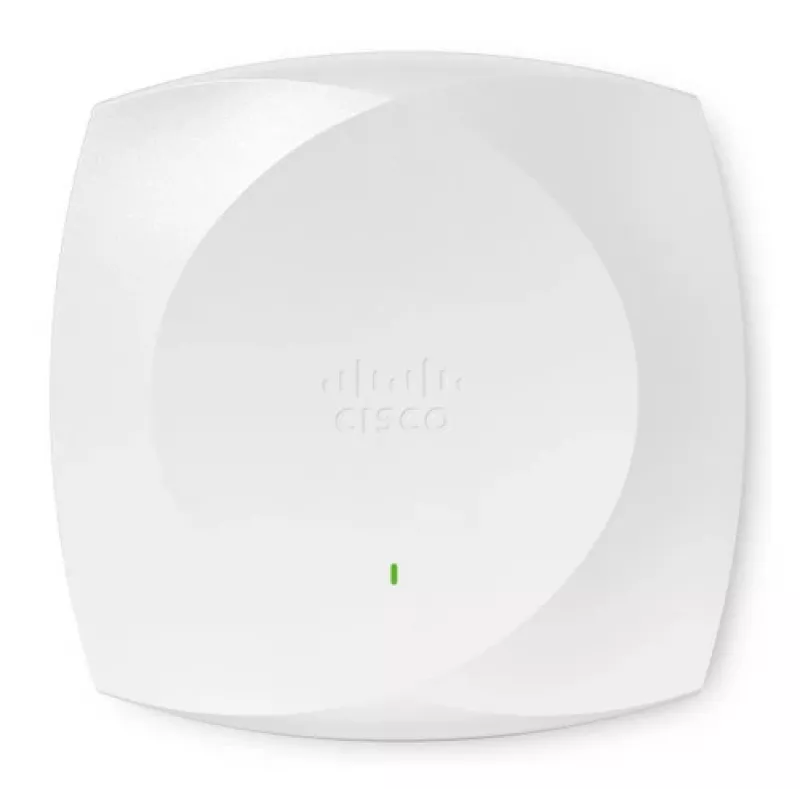

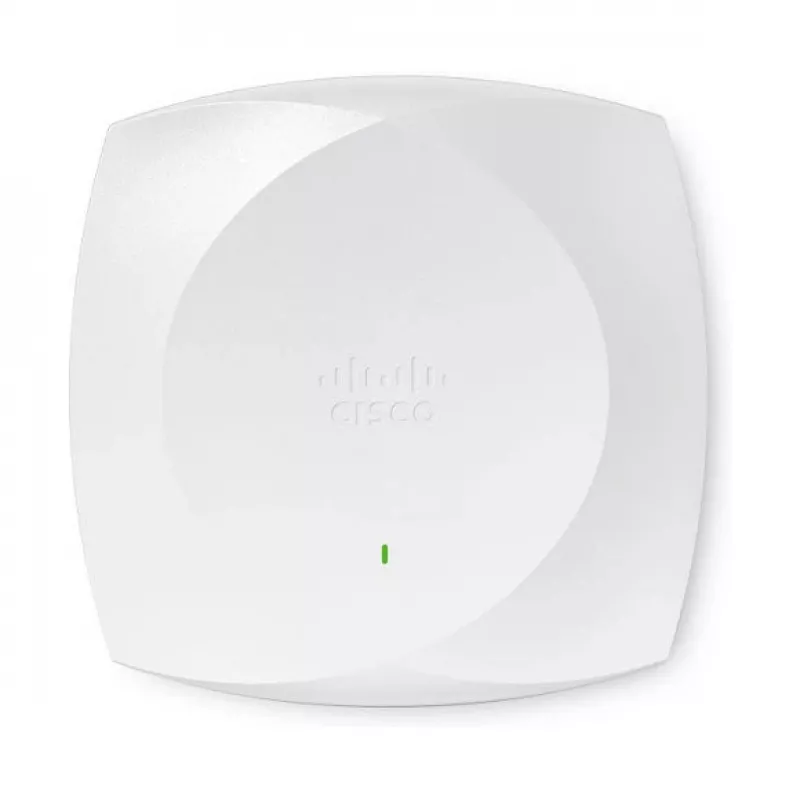

Cisco Catalyst CW9172i langaton tukiasema - Wi-Fi 7, Tri-Band, 2x2 MIMO, globaalisti konfiguroitava

The Cisco Catalyst CW9172i is a high-performance Wi-Fi 7 access point engineered for the most demanding enterprise environments. With its tri-band architecture and 2x2 MIMO configuration across 2.4 GHz, 5 GHz, and 6 GHz bands, it delivers exceptional throughput and reliability, making it ideal for high-density offices, campuses, and industrial settings. This global model is configurable, allowing you to tailor its operation to your specific network requirements.

Highlights

• Wi-Fi 7 (802.11be) technology for next-generation wireless speeds
• Tri-band operation: 2.4 GHz, 5 GHz, and 6 GHz
• Aggregate data rate up to 5.4 Gbps
• 2x2:2 MIMO on each band for robust performance
• Integrated 5 Gigabit Ethernet and 1 Gigabit Ethernet ports
• Support for PoE+ and PoE++ power options
• Internal omnidirectional antennas for simplified deployment
• Enhanced security with WPA3 and 802.1X

In daily use

Deploy the CW9172i to deliver seamless, high-speed connectivity for bandwidth-intensive applications like 4K/8K video streaming, virtual reality, and large-scale IoT deployments. Its tri-band design reduces interference and ensures consistent performance even in congested environments. The configurable nature of this global model allows network administrators to adapt the access point to regional requirements and specific use cases, ensuring optimal operation out of the box.

Full specifications

• Wireless Standard: Wi-Fi 7 (802.11be)
• Frequency Band: Tri-Band (2.4 GHz, 5 GHz, 6 GHz)
• MIMO Configuration: 2x2:2 (each band)
• Max Aggregate Data Rate: 5.4 Gbps
• 2.4 GHz Max Data Rate: 573.5 Mbps
• 5 GHz Max Data Rate: 2401.9 Mbps
• 6 GHz Max Data Rate: 2401.9 Mbps
• Ethernet Ports: 1x 5GBASE-T, 1x 1000BASE-T
• PoE Support: IEEE 802.3at (PoE+), IEEE 802.3bt (UPOE/PoE++)
• Antenna Type: Internal Omnidirectional
• Security Algorithms: WPA3, 802.1X, AES, TKIP
• Management: Cisco DNA Center, Cisco Catalyst 9800 Series Wireless Controllers
• USB Port: 1x USB 2.0 Type A
• Console Port: 1x RJ-45
• Processor: Quad-core CPU
• Memory: 2 GB DRAM, 1 GB Flash
• Mounting: Ceiling, Wall
• Power Consumption: Up to 30W (802.3bt)

Final note

Elevate your wireless infrastructure with the Cisco Catalyst CW9172i. Its cutting-edge Wi-Fi 7 technology, combined with flexible deployment options and robust security, makes it a future-proof investment for any organization. This configurable global model ensures you get the exact performance and compliance you need.
