Aktiivinen adapteri CLUB3D Mini DisplayPort 1.2 - HDMI 2.0 UHD

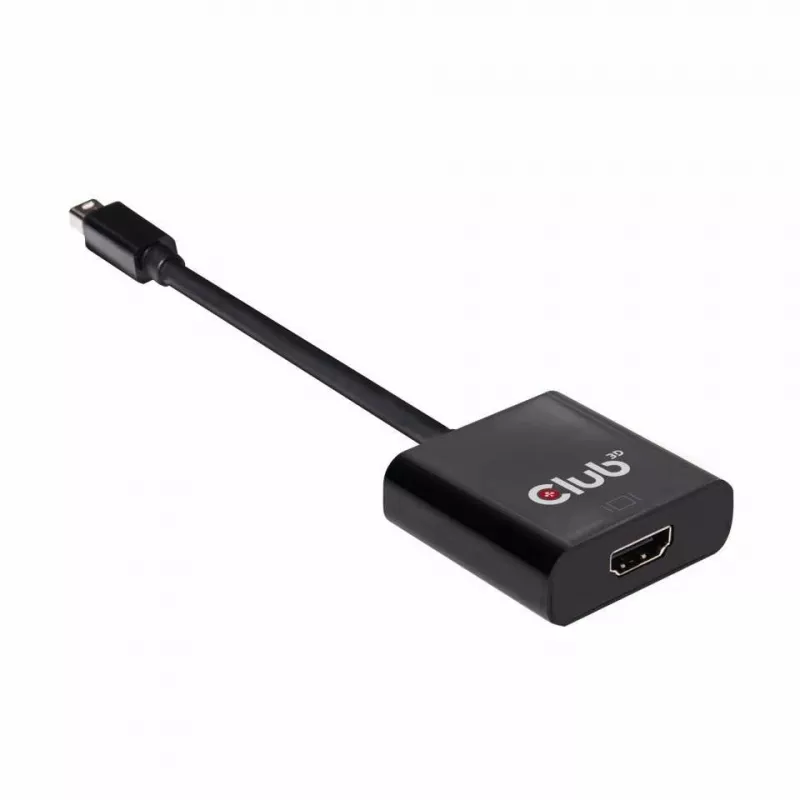

The CAC-2170 The Club 3D Mini DisplayPort 1.2 to HDMI 2.0 UHD Active Adapter is an active signal converter that connects Mini DisplayPort 1.2 sources (such as gaming PCs or laptops) to HDMI-enabled 4K UHD TVs, monitors or projectors. The adapter complies with the HDMI 2.0 specification and provides a total TMDS throughput of 18 Gbps via three lanes, supporting high-bandwidth video and audio transmission.

Advantages

This active Mini DisplayPort to HDMI 2.0 adapter supports up to 4K UHD (4096 x 2160) at 60 Hz and delivers smooth 60 frames-per-second video. It carries up to 8 channels of digital audio and preserves Ultra High Definition audio and video quality. The compact adapter is suitable for users who need HDMI 2.0 functionality but whose systems only have a Mini DisplayPort 1.2 output.

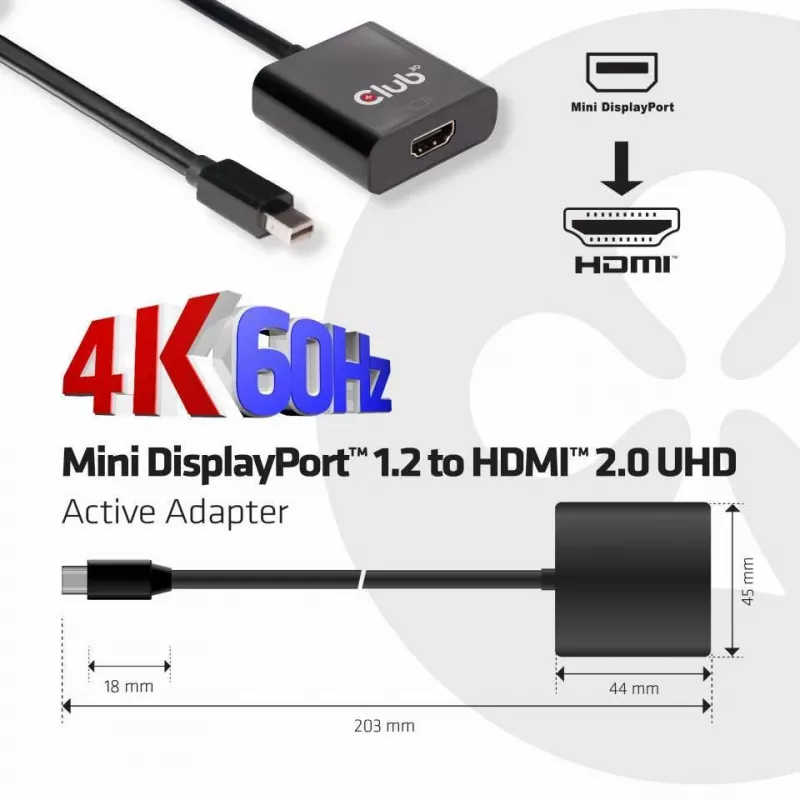

Key specifications

• Model: CAC-2170
• Input: Mini DisplayPort 1.2
• Output: HDMI 2.0
• Maximum resolution: 4096 x 2160 @ 60 Hz (4K UHD)
• TMDS throughput: 18 Gbps (3 lanes × 6 Gbps)
• Audio: up to 8 channels digital audio
• Type: Active signal converter / adapter

How to use

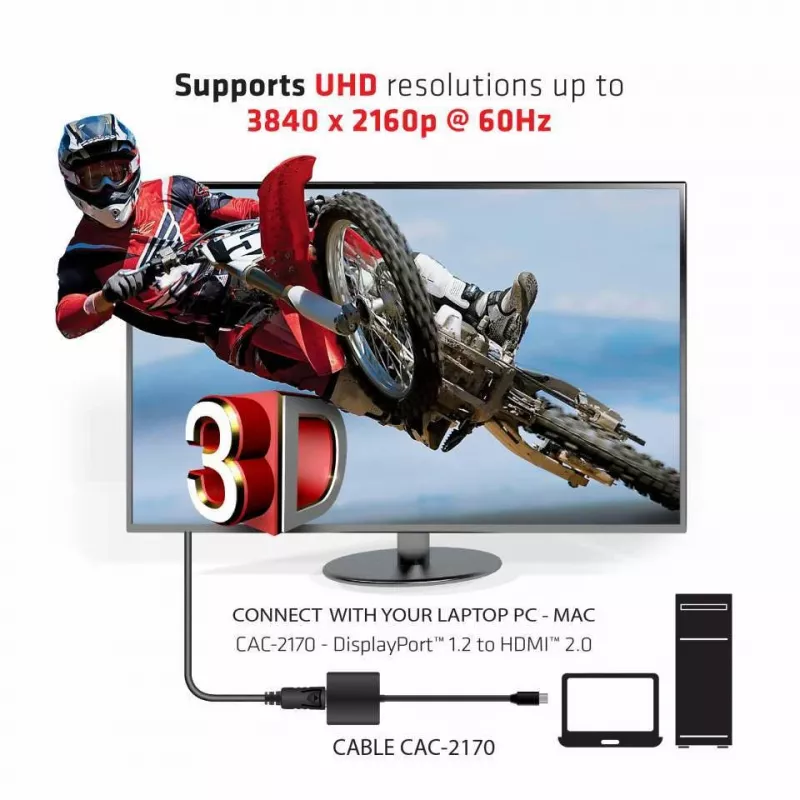

Connect the adapter's Mini DisplayPort plug to the Mini DisplayPort 1.2 output on your PC or laptop, then connect an HDMI cable from the adapter to your HDMI-enabled TV, monitor or projector. Ensure the display device is set to the correct HDMI input and configure the source device's display settings for 4K@60Hz if supported. No additional drivers are typically required for standard operating systems.

Recommendations

For best results use high-quality HDMI 2.0 or better cables and verify that both the source device and display support 4K@60Hz. If you experience issues, check cable connections, update graphics drivers on the source device, and confirm Mini DisplayPort 1.2 output capabilities.
