CLUB3D HDMI - USB Type-C aktiivinen sovitin 4K60Hz M/F

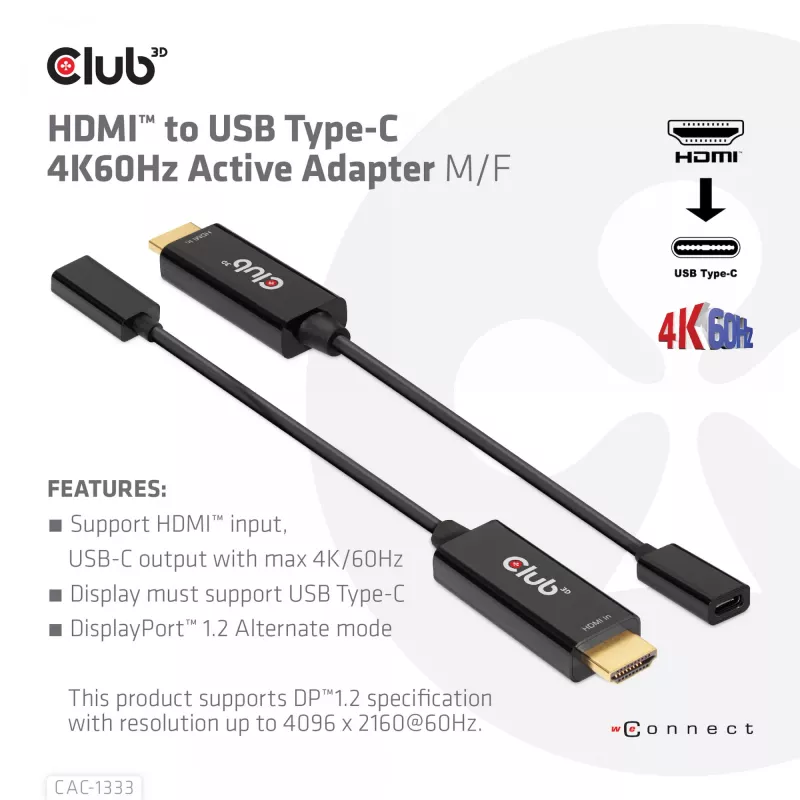

The Club 3D CAC-1333 is an HDMI™ to USB-C adapter that transmits video and audio from an HDMI™ source (laptop, tablet, PC, etc.) to USB-C display devices (TV, monitor, projector) using a USB-C to USB-C cable. The adapter is uni-directional and works only from an HDMI™ source to a USB-C display that supports DisplayPort™ 1.2 Alternate Mode. It supports DisplayPort™ 1.2 with resolutions up to 4096 x 2160 at 60 Hz.

Advantages

The adapter enables connection of HDMI™ devices to modern USB-C displays without changing the source device. It supports up to 4K UHD at 60 Hz and carries both video and audio over a single USB-C connection. The uni-directional design simplifies setup by ensuring a clear signal path from HDMI™ source to USB-C display.

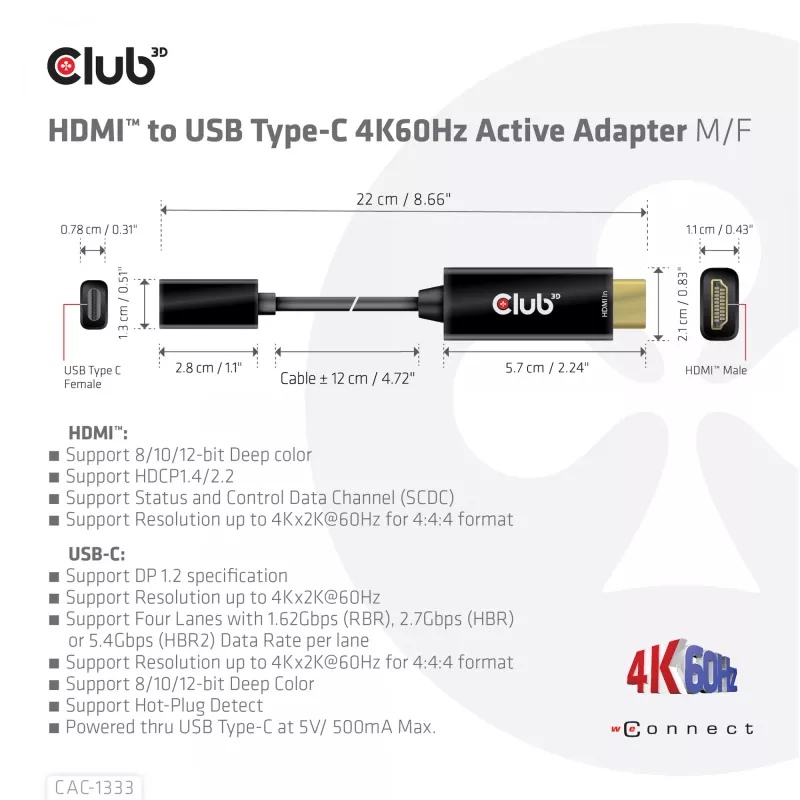

Key specifications

• Model: Club 3D CAC-1333

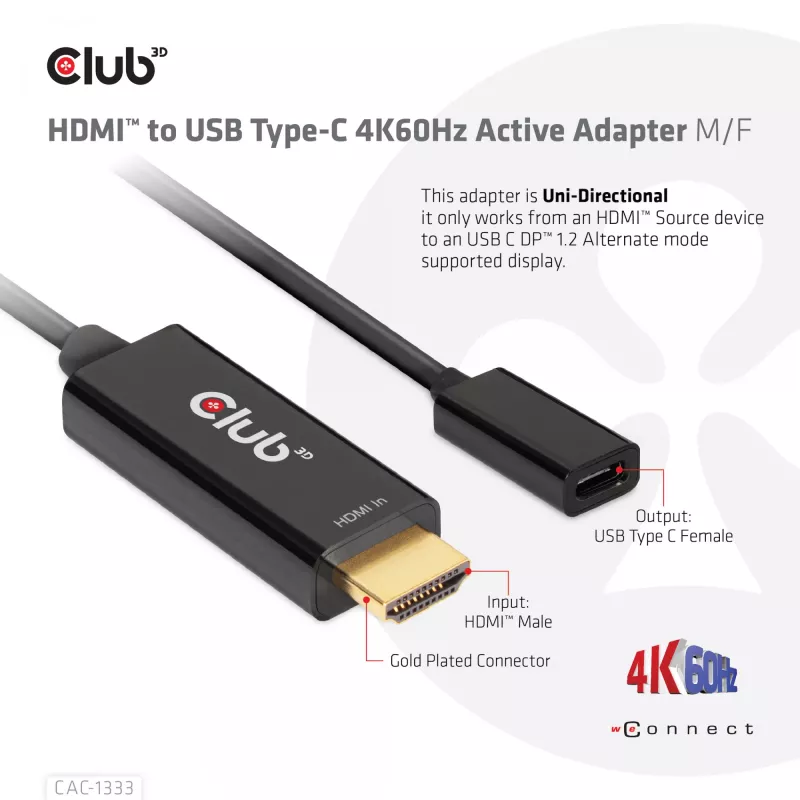

• Function: HDMI™ (source) to USB-C (display) adapter, uni-directional
• Supported standard: DisplayPort™ 1.2 Alternate Mode
• Maximum resolution: 4096 x 2160 @ 60 Hz
• Audio: supported over the USB-C connection
• Cable: requires Type-C M/M cable (not included)

How to use

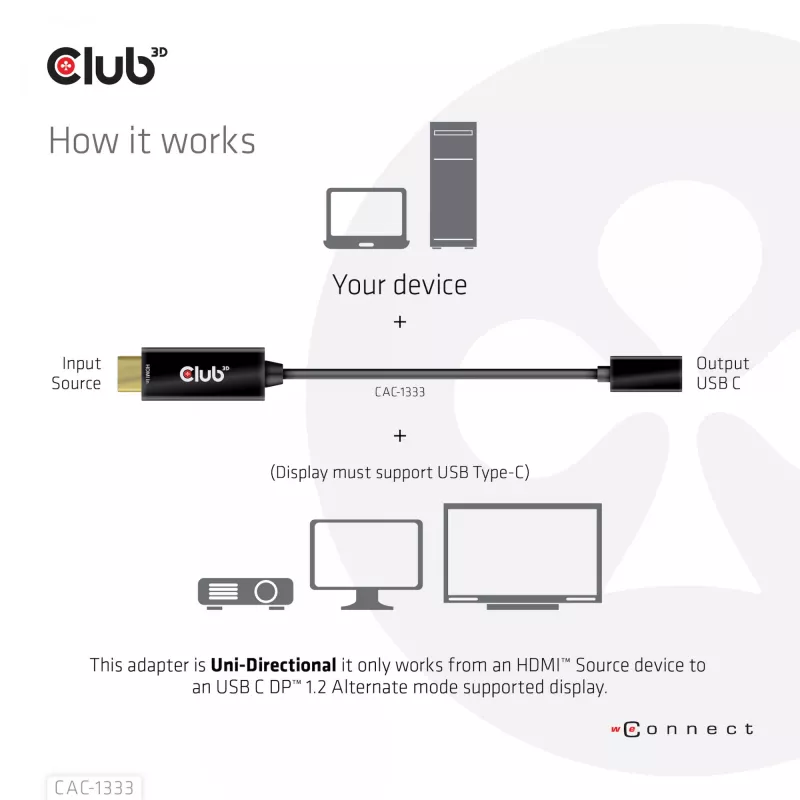

Connect an HDMI™ cable from the HDMI™ output of your laptop, PC or other source device to the HDMI™ input of the adapter. Then connect the adapter to the USB-C port on the display using a USB-C to USB-C cable that supports DisplayPort™ Alt Mode. Power the display and select the correct input if necessary. The adapter only sends signal from the HDMI™ source to the USB-C display; it does not work in the opposite direction.

Recommendations

Use a high-quality USB-C to USB-C cable rated for DisplayPort™ Alternate Mode and ensure the display’s USB-C port supports DP™1.2 Alt Mode. Verify source device HDMI™ output settings match the desired resolution and refresh rate.
