CONOTECH NS-14 F-tyypin liitin liittimeen barrel-liitossovitin

With a shielding effectiveness exceeding 90 dB and a frequency range up to 3 GHz, this F-type barrel coupler ensures your satellite, cable TV, or antenna signals remain clean and strong. The nickel-plated brass body and PTFE insulator deliver low insertion loss under 0.5 dB, making it a reliable link for RG6 and RG59 coaxial runs.

Overview

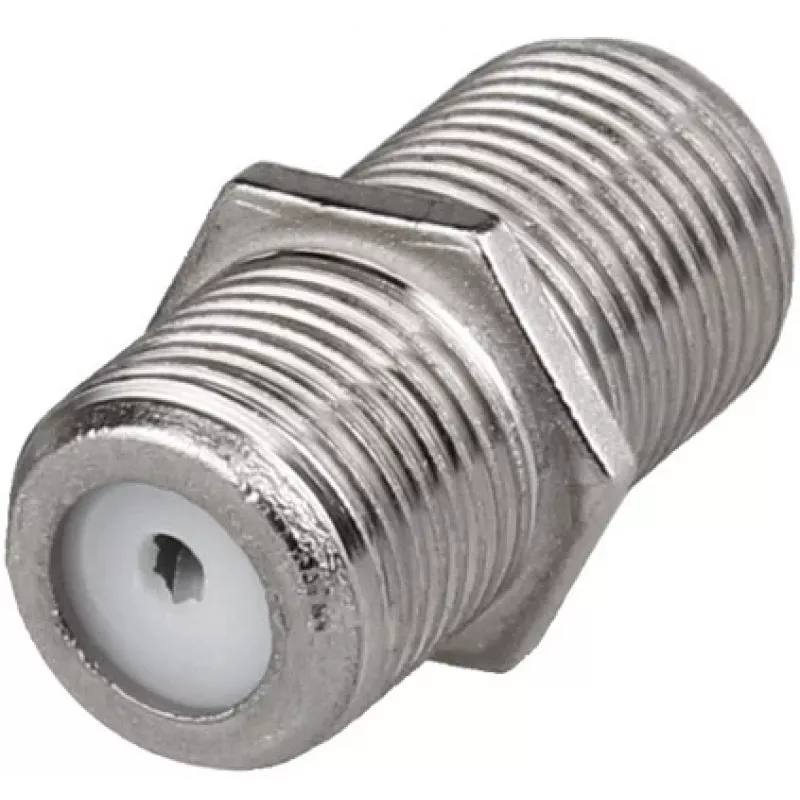

The CONOTECH NS-14 is a straight F-type female-to-female coupler designed to join two coaxial cables with F connectors. Its 75-ohm impedance matches standard video and data distribution systems, while the durable construction supports up to 500 mating cycles. Operating from -20°C to +60°C, it suits indoor and protected outdoor installations.

What stands out

• Nickel-plated brass housing resists corrosion and maintains signal integrity.
• PTFE insulator provides stable dielectric performance across the full DC–3 GHz range.
• Return loss better than 20 dB minimizes reflections in long cable runs.
• Compact barrel design fits tight spaces behind wall plates and equipment racks.

Technical details

• Connector type: F-type female to F-type female
• Impedance: 75 Ohm
• Frequency range: DC to 3 GHz
• Insertion loss: < 0.5 dB
• Return loss: > 20 dB
• Shielding effectiveness: > 90 dB
• Material: Nickel-plated brass body, PTFE insulator
• Operating temperature: -20°C to +60°C
• Durability: 500 mating cycles
• Compatible with RG6 and RG59 coaxial cables

Our verdict

A dependable, low-loss coupler that keeps your coaxial connections secure and your signal quality high—ideal for satellite, cable TV, and antenna extensions.
