CORAB FAGOR AD620 PLUS antennivahvistin 1 tulo 2 lähtöä

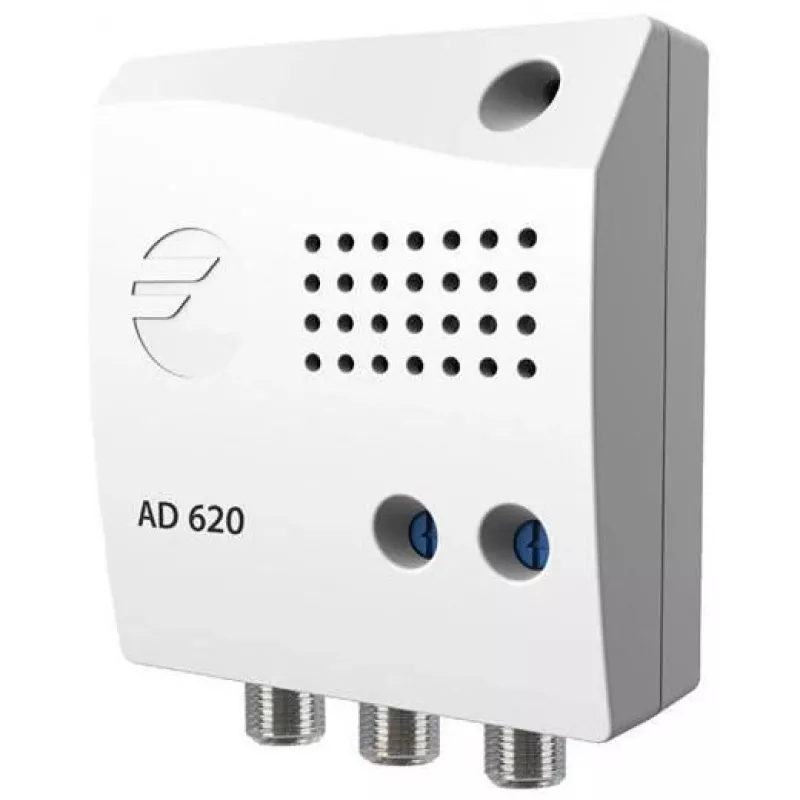

The CORAB FAGOR AD620 PLUS is a high-performance indoor antenna amplifier designed to boost weak TV and radio signals. With 1 input and 2 outputs, it distributes amplified signals to multiple devices, ensuring clear reception for DVB-T/T2, analog TV, and FM radio. Built-in power supply and adjustable gain make it a versatile solution for home entertainment systems.

Advantages

Enhances weak signals for stable reception; adjustable gain (0-15 dB) to optimize signal strength; low noise figure (<4 dB) for minimal interference; supports VHF and UHF bands; compact indoor design with F-type connectors.

Suitable for

• Home TV and radio setups
• DVB-T/T2 digital terrestrial television
• Analog TV and FM radio reception
• Single antenna distribution to two devices

Key specifications

• Product Type: Antenna Amplifier
• Installation: Indoor
• Frequency Range: 47-862 MHz
• VHF Gain: 16 dB
• UHF Gain: 20 dB
• Gain Adjustment: 0-15 dB
• Inputs: 1
• Outputs: 2
• Connectors: F-type
• Impedance: 75 Ohm
• Noise Figure: <4 dB
• Max Output Level: 105 dBµV
• Power Supply: 230V AC, 50Hz (Built-in)
• Power Consumption: 3 W
• Return Loss: >10 dB

Recommendations

For optimal performance, use high-quality F-type cables and ensure proper grounding. Ideal for areas with weak signal strength or when splitting signal to multiple rooms.
