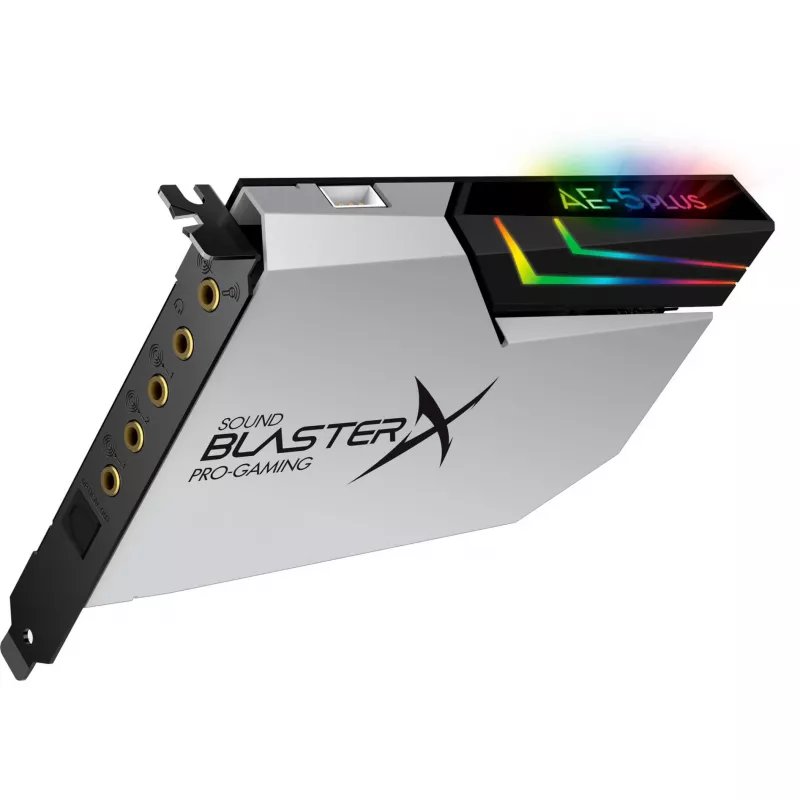

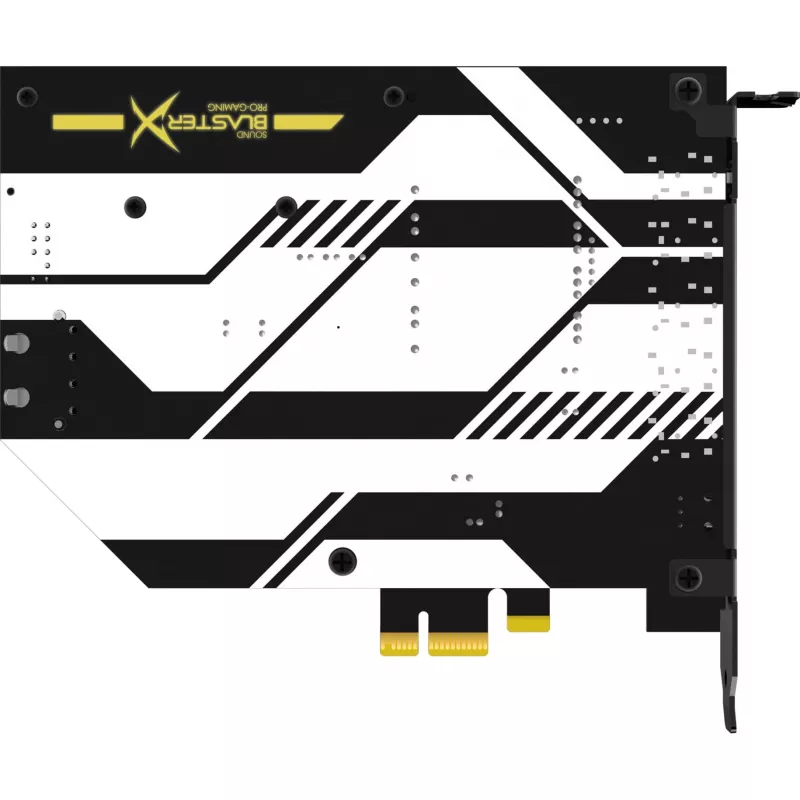

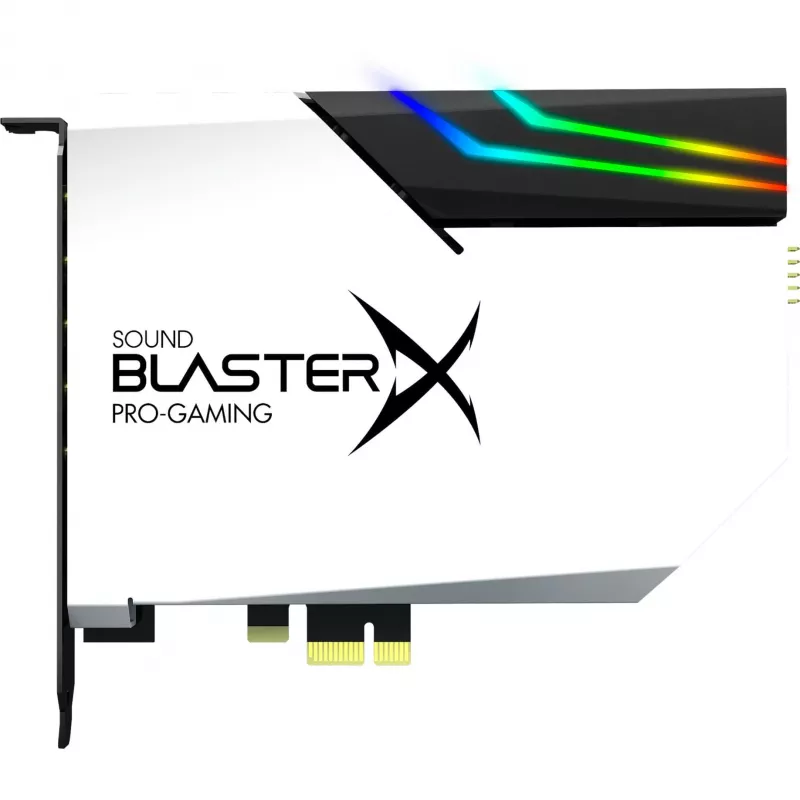

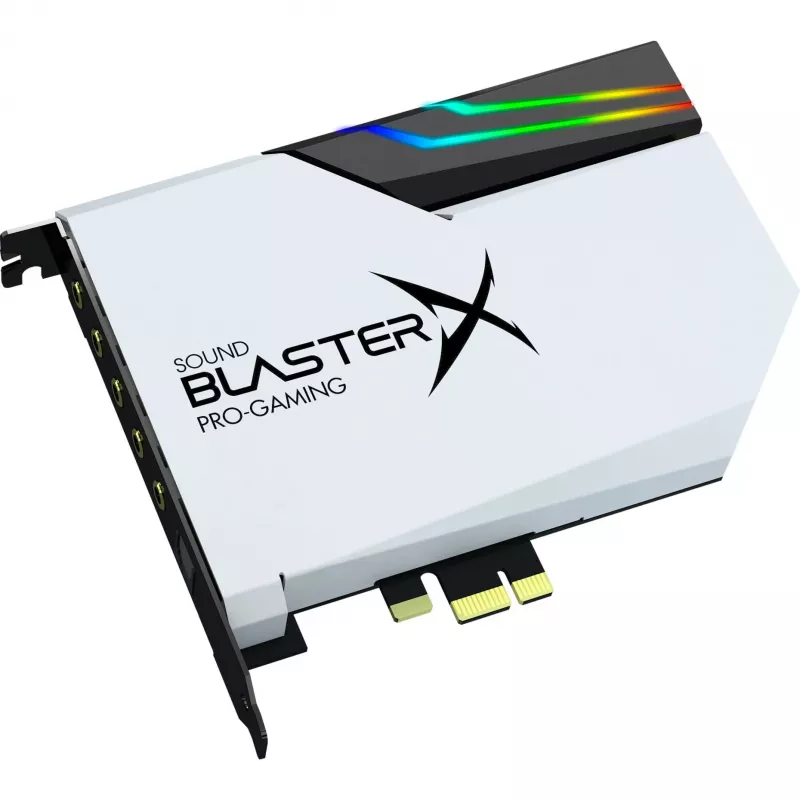

Creative Labs Sound BlasterX AE-5 Plus Pure Edition PCIe peliäänikortti

Most gaming sound cards settle for adequate conversion and weak headphone drive, but the Sound BlasterX AE-5 Plus Pure Edition pairs an audiophile-grade ESS SABRE32 Ultra DAC with Creative's discrete Xamp headphone bi-amplifier. The result is pristine 32-bit/384 kHz playback and a 122 dB signal-to-noise ratio that reveals every sonic detail. Unlike integrated motherboard audio, this PCIe card drives headphones from 16 to 600 ohms with authority, while its Aurora Reactive lighting adds a customizable glow to your build.

Highlights

• ESS SABRE32 Ultra DAC (ES9016K2M) for reference-class digital-to-analog conversion
• Xamp discrete headphone bi-amp with support for 16–600 ohm headphones
• 122 dB SNR and 0.00032% THD+N for ultra-clean audio
• 32-bit/384 kHz playback in Direct Mode, 24-bit/96 kHz recording
• Aurora Reactive RGB lighting with 4 onboard LEDs and included LED strip
• BlasterX Acoustic Engine, Scout Mode, and CrystalVoice technologies

In daily use

Install the AE-5 Plus into a free PCIe x1 slot and connect the 6-pin power for full RGB strip brightness. The Sound Blaster Command software lets you switch between 5.1 discrete and 7.1 virtual surround, fine-tune the acoustic engine, or enable Scout Mode to hear enemy footsteps before they hear you. Whether you're mixing music, watching movies, or gaming competitively, the card's low noise floor and high output ensure your headphones perform at their best.

Full specifications

• Audio Processor: Sound Core3D
• Interface: PCIe x1
• Signal-to-Noise Ratio (SNR): 122 dB
• Max Playback Resolution: 32-bit / 384 kHz (Direct Mode)
• Max Recording Resolution: 24-bit / 96 kHz
• Digital-to-Analog Converter (DAC): ESS SABRE32 Ultra DAC (ES9016K2M)
• Headphone Amplifier: Xamp Discrete Headphone Bi-amp
• Supported Headphone Impedance: 16 – 600 Ohms
• Audio Channels: 5.1 Discrete, 7.1 Virtual
• Connectivity (Outputs): 3x 3.5mm Line Out (Front, Rear, C/Sub), 1x TOSLINK Optical Out
• Connectivity (Inputs): 1x 3.5mm Line-in/Mic-in
• Front Panel Connectivity: 1x HD Audio Front Panel Header
• RGB Lighting: Aurora Reactive Lighting System (4 onboard LEDs, 1 included RGB LED strip)
• Software Suite: Sound Blaster Command
• Supported Operating Systems: Windows 10, Windows 11
• Audio Technologies: BlasterX Acoustic Engine, Scout Mode, CrystalVoice
• Form Factor: Internal PCIe Card
• THD+N: 0.00032%
• ASIO Support: Yes (ASIO 2.3)
• Power Connector: 1x 6-pin PCIe Power (for RGB strip)

Final note

The AE-5 Plus Pure Edition delivers reference-class audio and powerful headphone amplification, making it an ideal upgrade for discerning gamers and audio enthusiasts.
