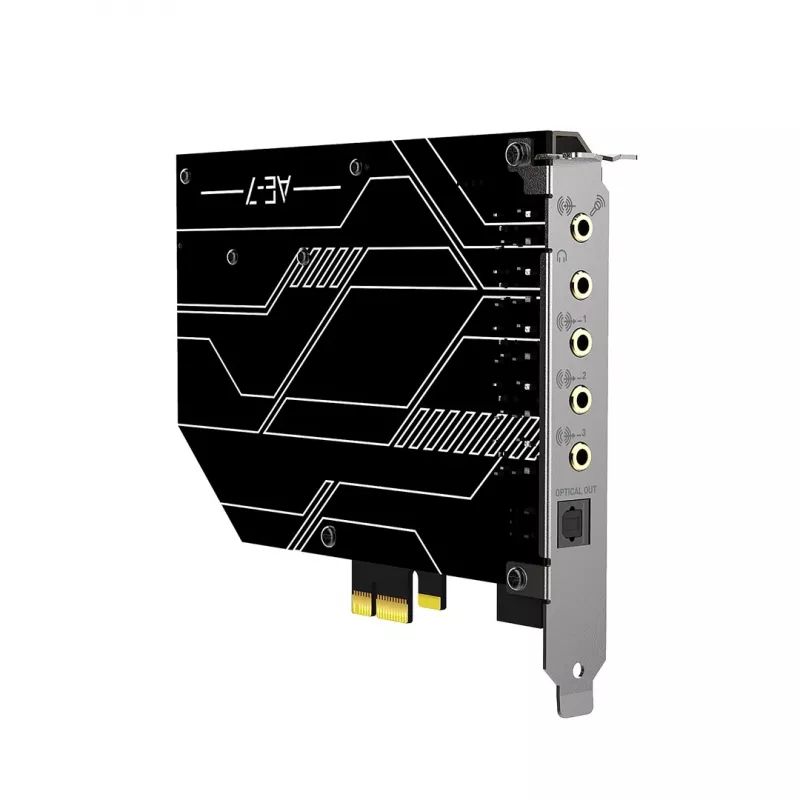

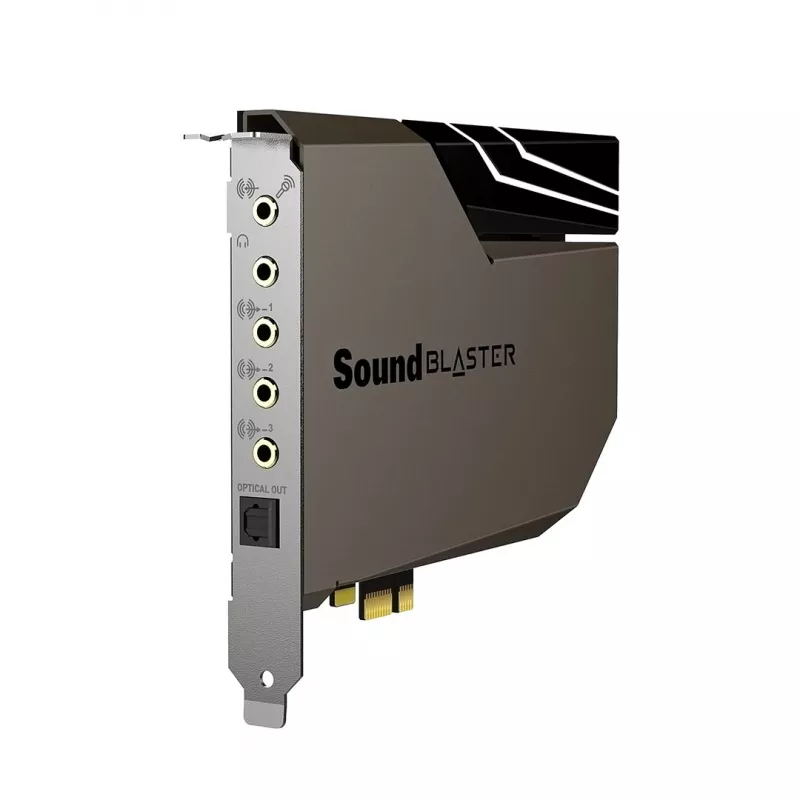

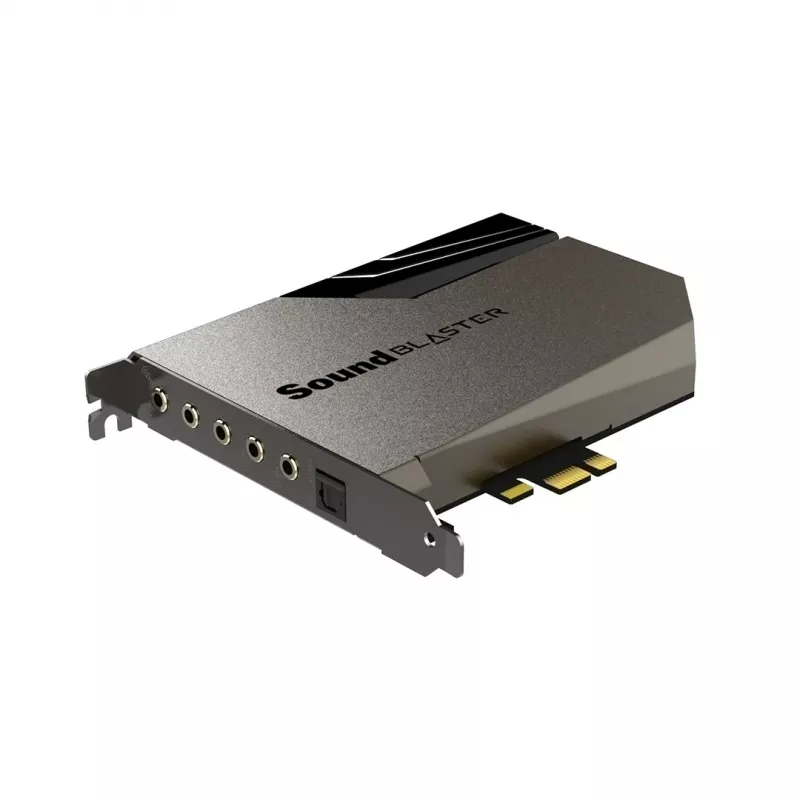

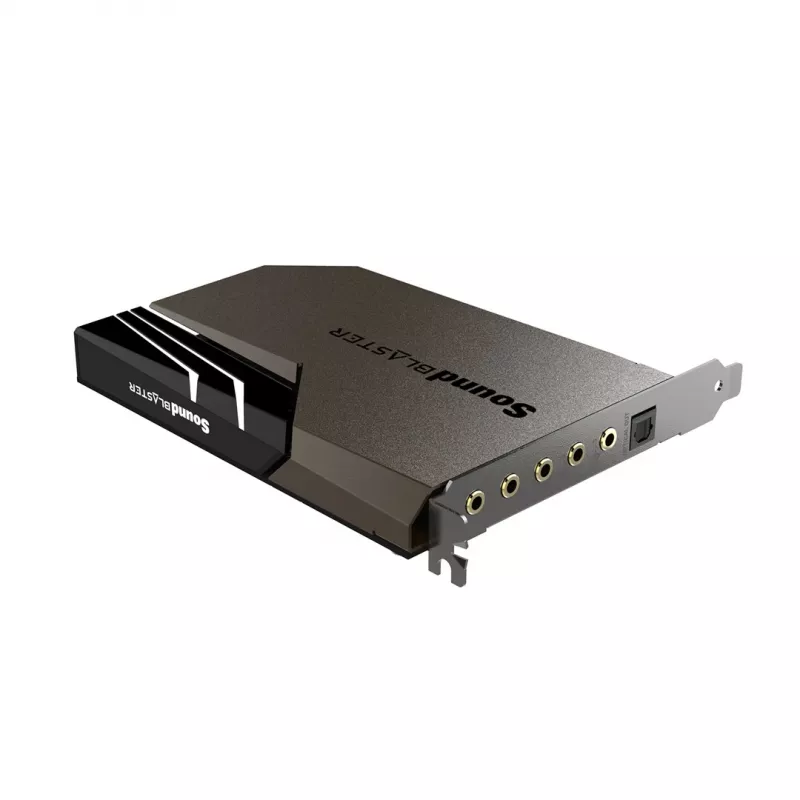

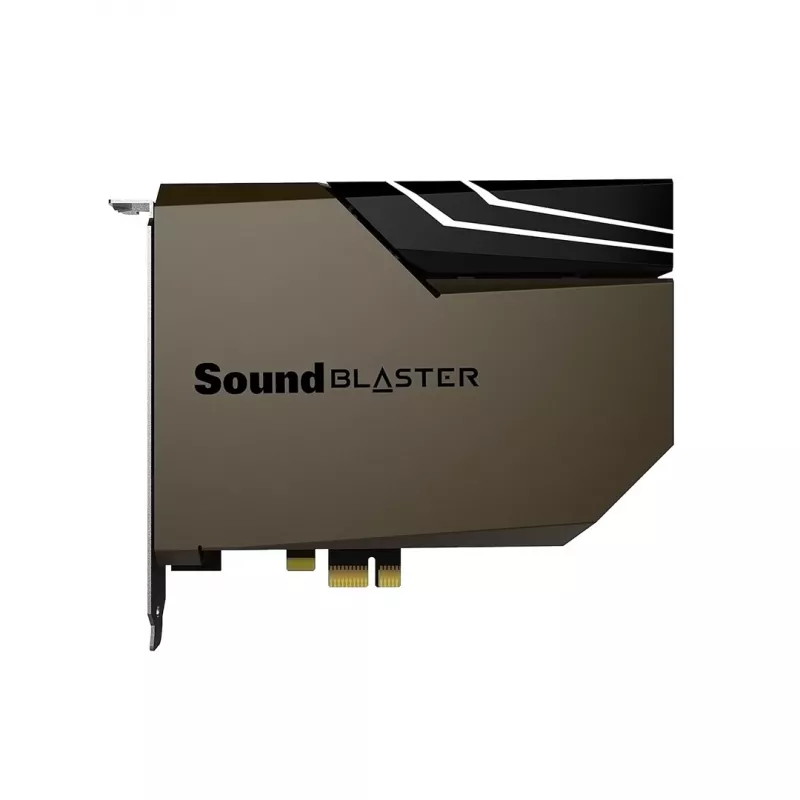

Sisäinen äänikortti Creative Labs Sound Blaster AE-7

The Creative Labs Sound Blaster AE-7 is an internal PCI‑E sound card designed for high-fidelity desktop audio. It integrates an ESS SABRE-class 9018 DAC, supports 32‑bit / 384 kHz PCM and DSD64 playback, and delivers a 127 dB SNR. The card includes a discrete Xamp headphone bi-amplifier with ultra-low 1 Ω output impedance, supporting headphones from 16 Ω up to 600 Ω, and offers hardware-accelerated audio processing via an on-board quad-core audio processor to reduce CPU load.

Advantages

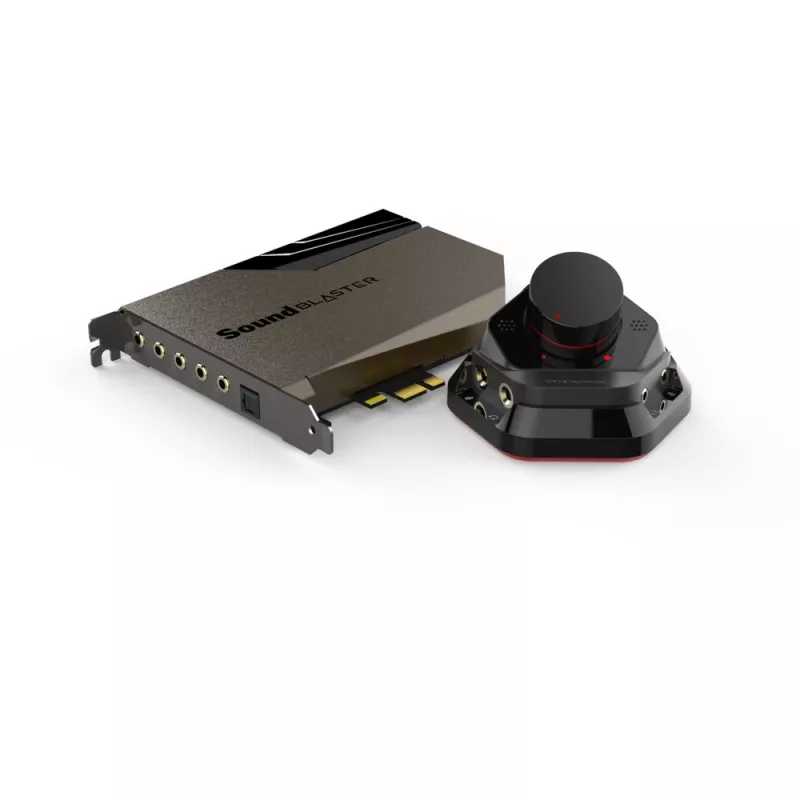

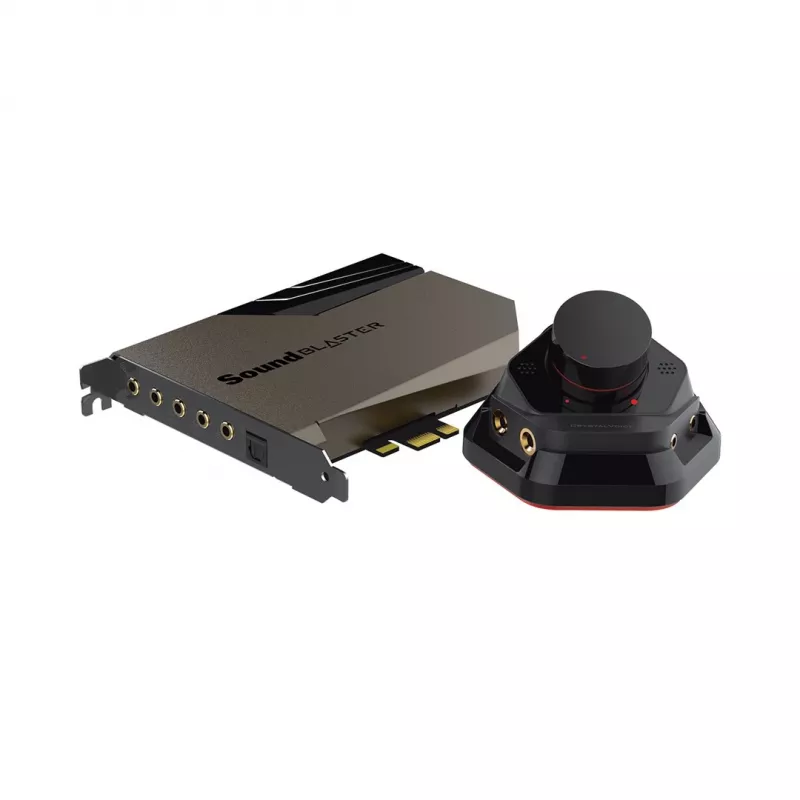

The AE-7 provides pristine audio clarity and very low distortion (THD+N up to -120 dB / 0.0001%), discrete 5.1 speaker output plus up to 7.1 virtual surround for headphones, and supports Dolby Digital Live and DTS Connect encoding. It includes an Audio Control Module with volume knob, 6.3 mm and 3.5 mm I/O and a built-in microphone array for convenient front-desk access. Sound Blaster Command software enables detailed customization of EQ, surround, Crystalizer, Bass, Smart Volume, Dialog Plus and Scout Mode, with a quick toggle to enable or disable processing.

Suitable for

• PC audio enthusiasts seeking high-fidelity playback and low noise
• Gamers who need virtual surround and Scout Mode for positional audio cues
• Users driving high-impedance studio or planar-magnetic headphones (up to 600 Ω)
• Home theater setups requiring discrete 5.1 speaker output and Dolby/DTS encoding

Key specifications

• Host interface: PCI‑E
• Audio quality: 32‑bit / up to 384 kHz PCM, DSD64 support
• DAC: ESS SABRE-class 9018, 127 dB SNR
• THD+N: up to -120 dB (0.0001%)
• Headphone output impedance: 1 Ω (supports 16 Ω – 600 Ω)
• Channels: discrete 5.1 speaker output, virtual 7.1 for headphones
• Encoding: Dolby Digital Live, DTS Connect
• On-board audio processor: quad-core dedicated audio processing
• Audio Control Module: volume knob, 6.3 mm and 3.5 mm I/O, built-in mic array
• Compatibility: Windows 10 (minimum system requirements stated by manufacturer)
• Weight: 0.215 kg
• Colour: Grey

How to use

Install the AE-7 into an available PCI‑E slot on a compatible Windows PC. Connect speaker outputs or headphones to the rear panel outputs and use the included Audio Control Module for quick access to headphone and microphone jacks and volume control. Install the Sound Blaster Command software to configure audio profiles, enable or disable hardware and software processing, and adjust EQ, surround, and other audio enhancements. For optimal results, select the appropriate playback format (32‑bit/384 kHz or DSD64) in your audio application or driver where supported.

Recommendations

Use high-quality shielded cables for speaker connections, update drivers and Sound Blaster Command software to the latest version, and set the Windows audio bit depth/sample rate to match your source material. For critical listening, disable unnecessary processing in the software to enjoy native DAC performance; enable Scout Mode or enhancements when gaming or when a specific effect is required.
