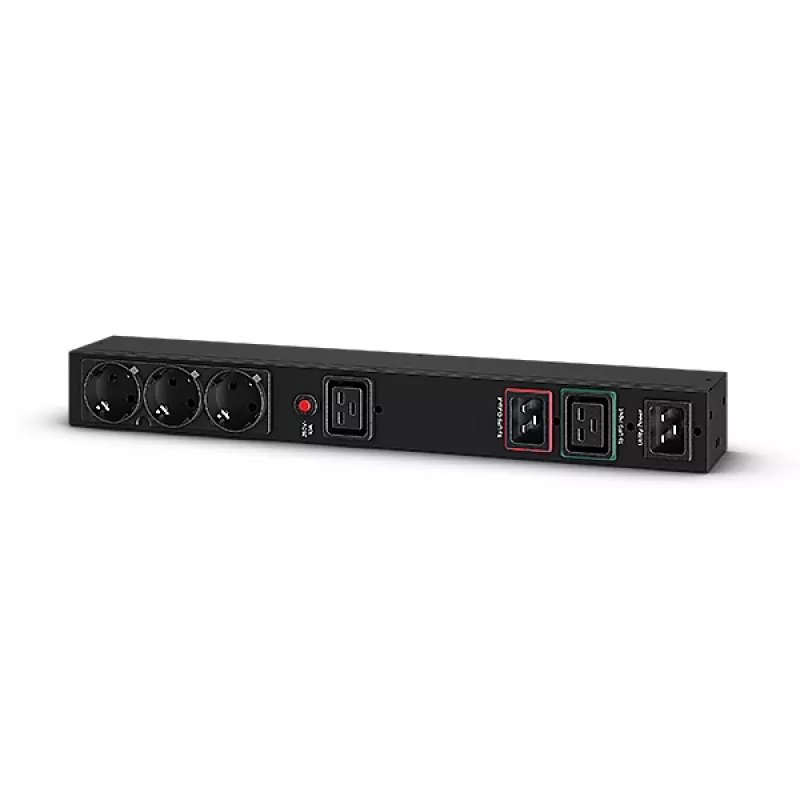

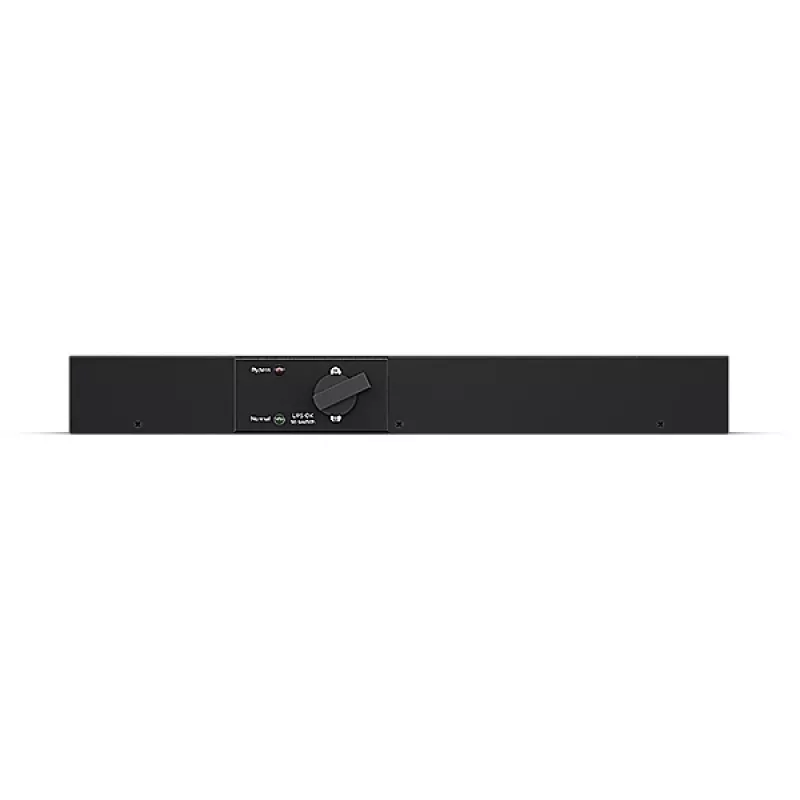

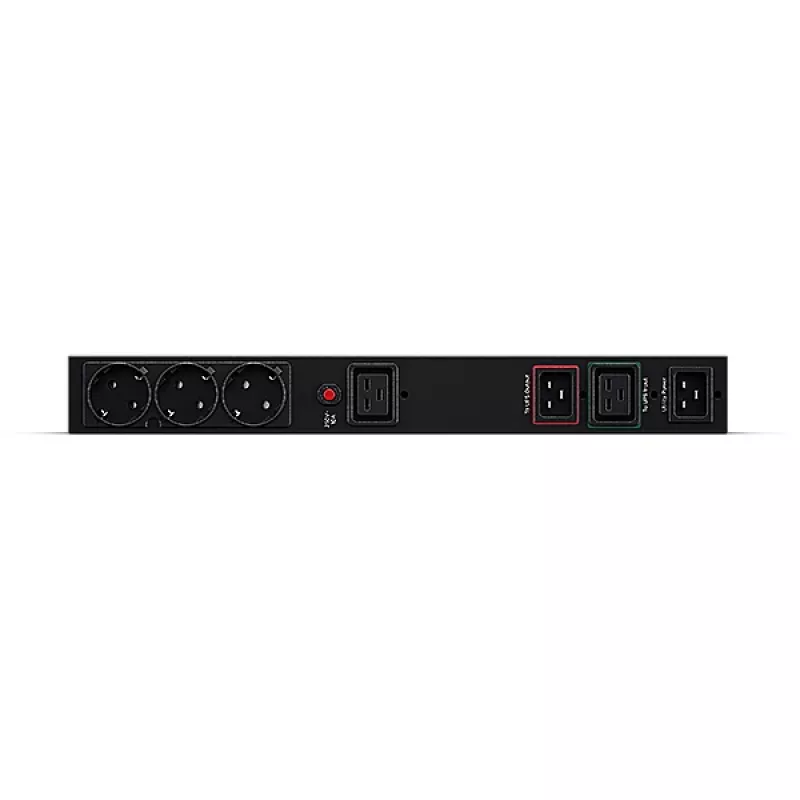

CyberPower MBP20HVDE3A UPS-lisävaruste

The CyberPower MBP20HVDE3A rack-mount bypass switch allows safe maintenance of a UPS by providing a direct path to utility power. It is designed to switch power seamlessly from the UPS to the mains during service and includes additional outlets and a compact, rack-friendly form factor for use in server environments. The unit is CE and RoHS certified and operates at 200–240 V, 16 A.

Advantages

The MBP20HVDE3A provides uninterrupted load transfer to mains during UPS maintenance, reducing downtime risk. Its extra outlets enable connection of multiple devices and the compact black rack-mount design saves space in server cabinets. Certification to CE and RoHS ensures compliance with relevant safety and environmental standards.

Suitable for

• Server racks and small data centre cabinets
• Maintenance and servicing of UPS systems
• IT equipment and network devices requiring temporary bypass

Key specifications

• Model: MBP20HVDE3A
• Brand: CYBERPOWER
• Input voltage: 200–240 V
• Input current: 16 A
• Dimensions (W×D×H): 433 × 76 × 51 mm
• Weight: 1.3 kg
• Colour: Black
• Certifications: CE, RoHS

How to use

Mount the MBP20HVDE3A in a standard 19-inch rack or suitable shelf space following the rack-mount instructions. Connect the UPS output to the bypass input and connect the bypass output to the equipment or distribution panel. During UPS maintenance, operate the bypass mechanism to transfer load to the utility supply, ensuring the UPS is isolated for safe servicing. After maintenance, return the switch to normal operation to restore power through the UPS.

Recommendations

Use this bypass switch only with compatible UPS systems rated within the specified voltage and current (200–240 V, 16 A). Ensure installation and switching are performed by qualified personnel and that local electrical regulations are followed.
