CyberPower MBP20HVIEC6A UPS-lisävaruste

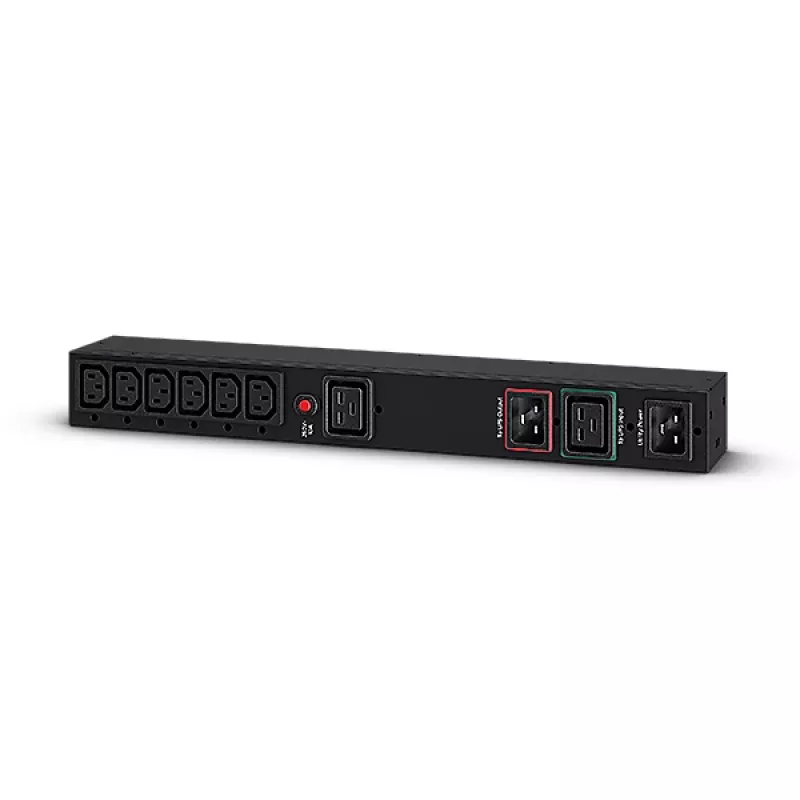

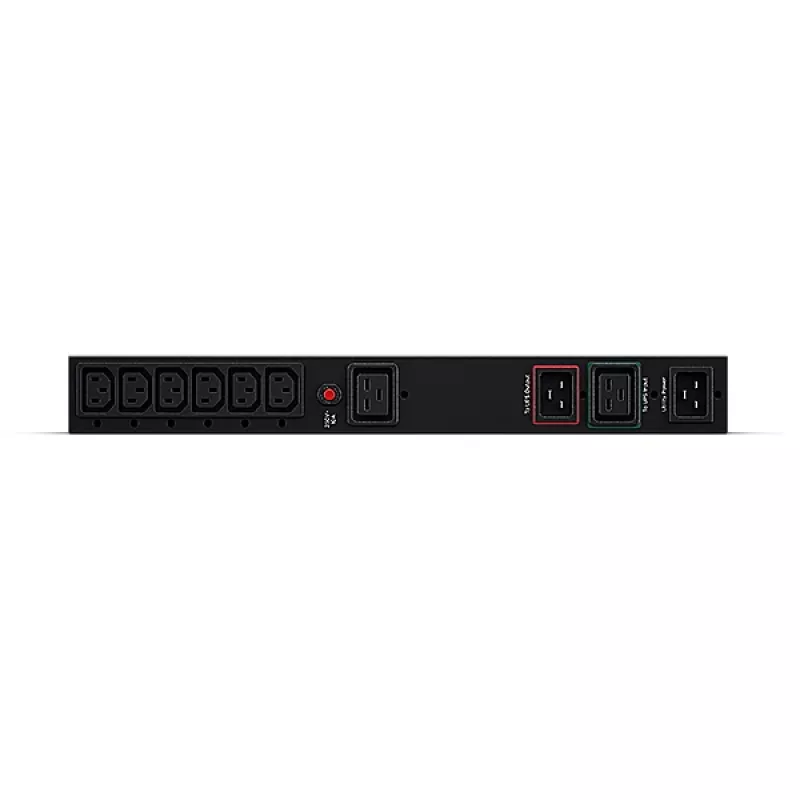

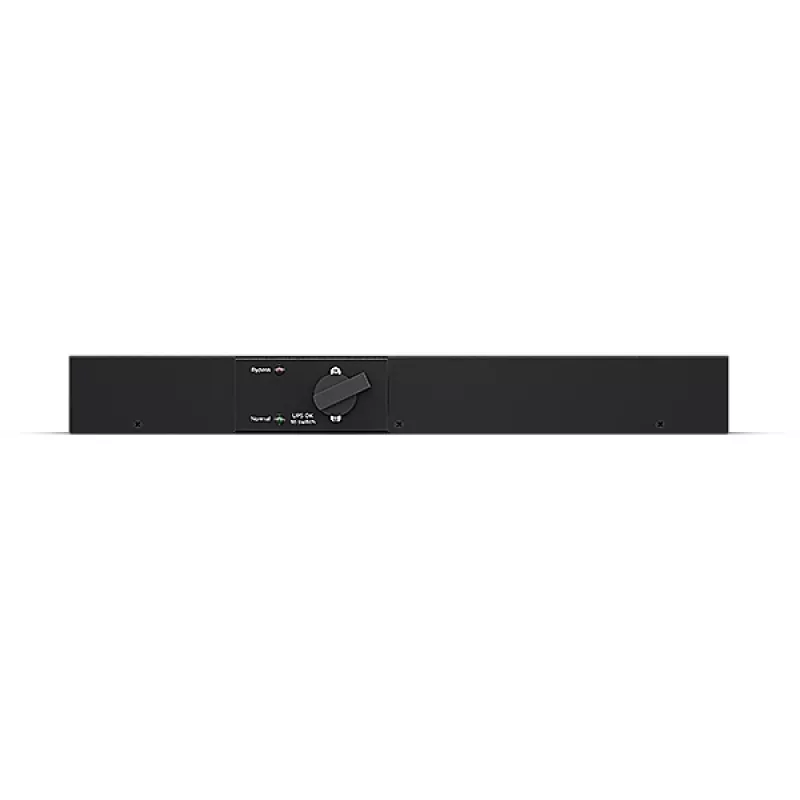

The CyberPower MBP20HVIEC6A is a rack-mount bypass switch designed to provide maintenance bypass functionality for UPS systems. It allows technicians to transfer load from a UPS to the utility supply without interrupting connected equipment. The unit is compact and designed for installation in standard racks, with a black finish and a weight of 1.3 kg.

Advantages

The MBP20HVIEC6A supports seamless transfer of power from UPS to mains during maintenance and includes extra outlets to connect multiple devices. It is CE and RoHS compliant, operates at 200–240 V and 16 A, and offers flexible installation options to fit different rack spaces.

Suitable for

• Data centre and server rack maintenance
• IT closets and network cabinets
• Small office UPS maintenance and service
• Environments requiring uninterrupted equipment power during UPS servicing

Key specifications

• Model: MBP20HVIEC6A
• Input voltage: 200–240 V
• Current: 16 A
• Compliance: CE, RoHS
• Dimensions (W×D×H): 433 × 76 × 51 mm
• Weight: 1.3 kg
• Colour: Black

How to use

Install the bypass switch in a compatible rack location and connect the MBP20HVIEC6A between the UPS output and the protected equipment. When UPS maintenance is required, operate the bypass mechanism to transfer the load to the utility supply, perform service on the UPS, and then return the load to the UPS following the manufacturer's procedures. Ensure all connections are secure and that the installation complies with local electrical codes.

Recommendations

Use the MBP20HVIEC6A only with compatible UPS models and ensure qualified personnel perform installation and switching operations. Verify voltage and current ratings match your system before use, and follow CE and RoHS guidelines for safe operation.
