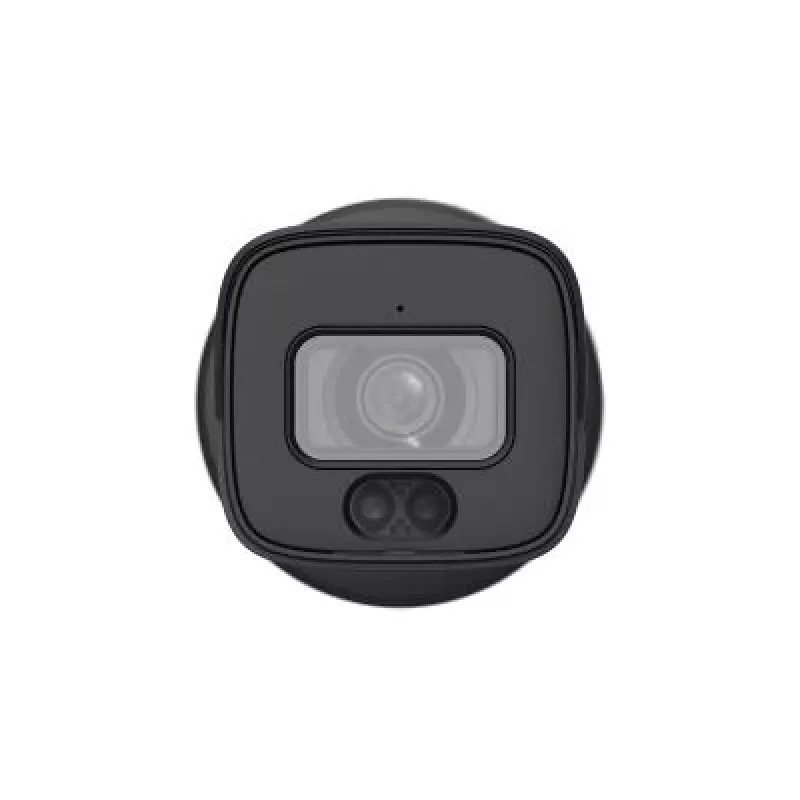

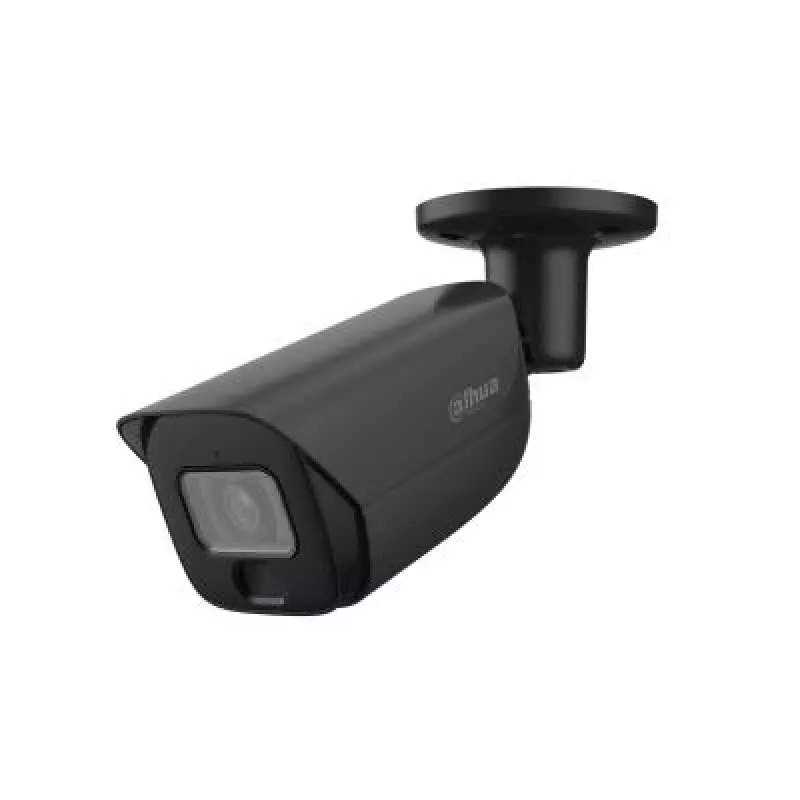

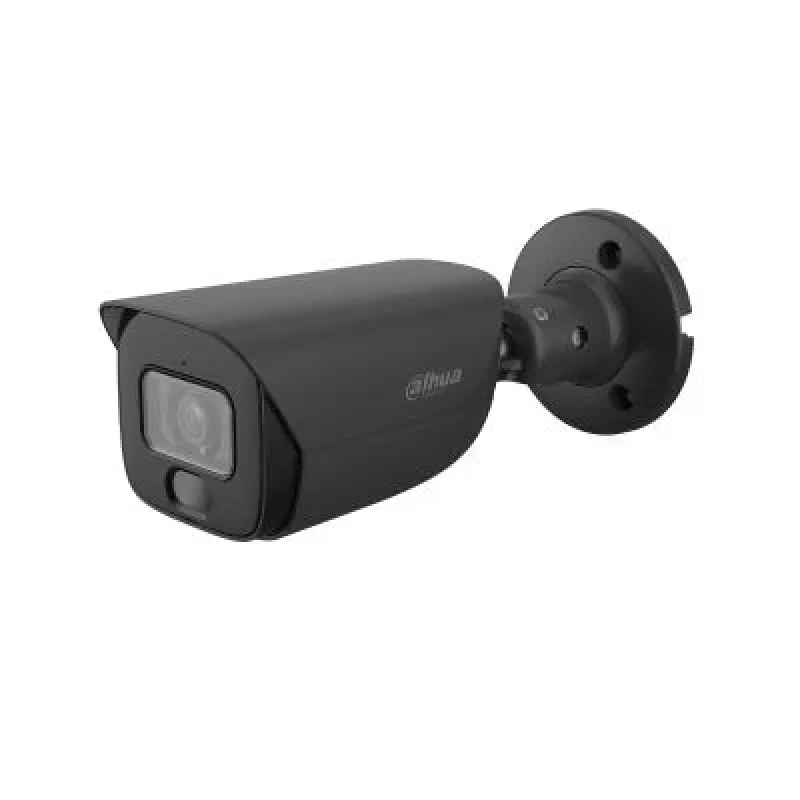

DAHUA 5MP Bullet-verkkokamera IPC-HFW5559E-ASE-IL-0280B-BLACK

The DAHUA IPC-HFW5559E-ASE-IL-0280B-BLACK is a high-performance 5MP bullet network camera designed for outdoor surveillance. Featuring a 1/2.7" progressive CMOS sensor, it delivers crisp 2592x1944 resolution at 25/30 fps. With 120 dB True WDR, it excels in challenging lighting conditions. The camera includes advanced AI features such as perimeter protection, SMD 4.0, face detection, people counting, and smart search. Its 2.8mm fixed lens provides a wide 102° horizontal field of view. Built with a metal housing and IP67 rating, it withstands harsh environments. IR distance up to 50m ensures clear night vision. Powered via 12V DC or PoE (802.3af), it supports H.265/H.264 compression for efficient bandwidth usage.

Advantages

This camera offers superior image quality with 5MP resolution and 120dB True WDR, ensuring clear footage in high-contrast scenes. The integrated AI capabilities reduce false alarms and enhance security monitoring. Its robust metal construction and IP67 rating guarantee durability in outdoor conditions. Easy installation with PoE support simplifies cabling.

Suitable for

• Perimeter security for commercial and industrial sites
• Outdoor surveillance for parking lots, warehouses, and campuses
• Retail stores requiring people counting and face detection
• Smart city applications with AI analytics

Key specifications

• Image Sensor: 1/2.7" 5MP progressive CMOS
• Max Resolution: 2592x1944 (5MP)
• Frame Rate: 25/30 fps @ 5MP
• Lens: 2.8mm fixed focal
• Angle of View: H: 102°, V: 71°, D: 134°
• IR Distance: Up to 50m
• Video Compression: H.265, H.264, H.264H, H.264B, MJPEG
• WDR: 120 dB True WDR
• Minimum Illumination: 0.002 [email protected] (Color), 0 Lux (IR on)
• AI Features: Perimeter Protection, SMD 4.0, Face Detection, People Counting, Smart Search
• Audio: 1 In / 1 Out, Built-in Mic
• Alarm: 1 In / 1 Out
• Storage: Micro SD up to 256 GB
• Network: RJ-45 (10/100 Base-T)
• Power: 12V DC / PoE (802.3af), Max 9.8W
• Ingress Protection: IP67
• Operating Temperature: -30°C to +60°C
• Material: Metal

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the microSD card is high endurance for continuous recording. The camera is best paired with DAHUA NVRs for full AI functionality.
