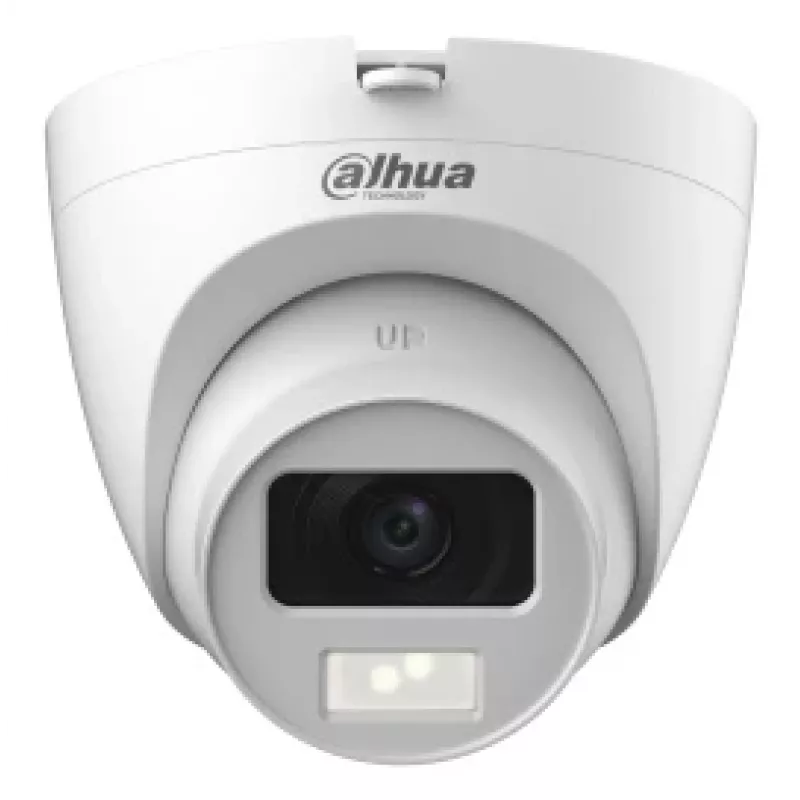

DAHUA 5MP IR Turret Camera HAC-HDW1500CLQ-IL-A-0280B-S3-DIP

The DAHUA HAC-HDW1500CLQ-IL-A-0280B-S3-DIP is a high-performance 5MP IR turret camera designed for reliable surveillance in various indoor and outdoor environments. Featuring a 1/2.7-inch CMOS sensor, it delivers crisp and clear images at up to 2592x1944 resolution. Equipped with dual-illumination technology (Smart IR and warm light), this camera ensures excellent visibility even in complete darkness, with an IR range of up to 20 meters. The camera supports multiple video outputs (CVI/TVI/AHD/CVBS) and includes a built-in microphone for audio recording. Its IP67-rated housing provides robust protection against dust and water, making it suitable for harsh weather conditions.

Advantages

This camera offers exceptional value with its high-resolution 5MP imaging, dual-illumination for clear night vision, and versatile video output options. The IP67 rating ensures durability in outdoor installations, while the built-in microphone adds audio monitoring capability. Easy to install and configure, it is an ideal choice for both residential and commercial security applications.

Suitable for

• Outdoor perimeter surveillance
• Parking lots and garages
• Retail stores and warehouses
• Office buildings and schools
• Home security systems

Key specifications

• Sensor: 1/2.7-inch CMOS
• Max Resolution: 5MP (2592x1944)
• Lens: 2.8mm fixed focal, 111° horizontal FOV
• Illumination: Dual (Smart IR & warm light), up to 20m
• Video Output: CVI/TVI/AHD/CVBS switchable
• Audio: Built-in microphone
• Day/Night: Auto (ICR) / Manual
• WDR: DWDR
• Noise Reduction: 2D NR
• Ingress Protection: IP67
• Power: 12V DC, max 3.7W
• Operating Temperature: -40°C to +60°C
• Housing: Metal front cover + plastic main body

Recommendations

For optimal performance, use a high-quality 12V DC power supply and ensure proper cable connections. The camera is compatible with DAHUA XVR series recorders for seamless integration. Regular cleaning of the lens and housing will maintain image clarity.
