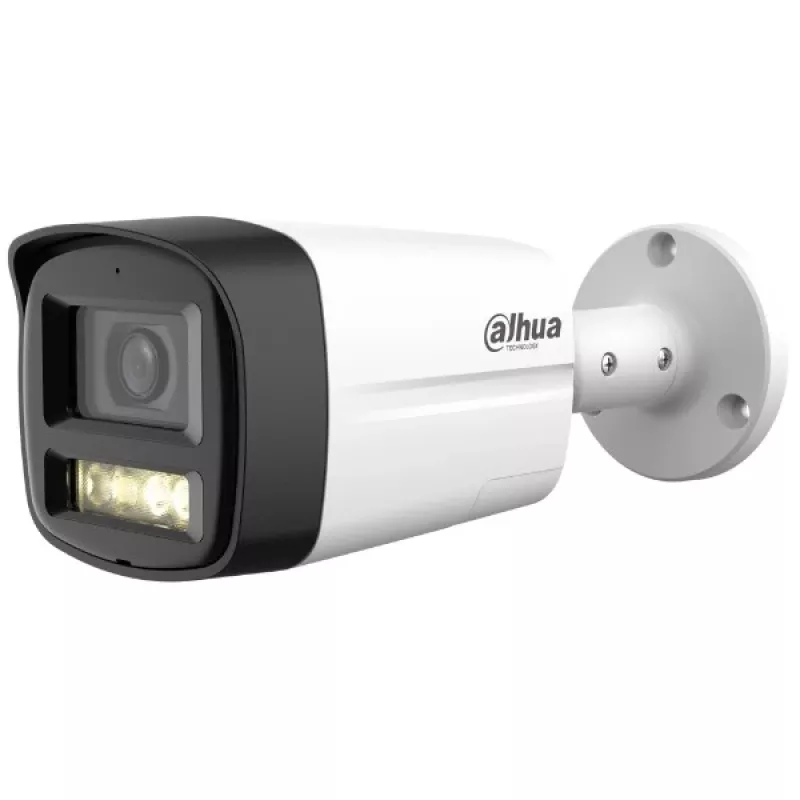

DAHUA HAC-HFW1500TLM-IL-T-0360B-DIP 5MP Smart Dual Light bullet-kamera, 3,6mm, IP67

The DAHUA HAC-HFW1500TLM-IL-T-0360B-DIP is a high-performance 5MP analog bullet camera featuring Smart Dual Light technology, combining IR and white light illumination for clear imaging in various lighting conditions. With a 3.6mm fixed lens and IP67 weatherproof rating, this camera is ideal for outdoor surveillance applications.

Advantages

Smart Dual Light technology automatically switches between IR and white light based on ambient light, providing color images at night when white light is activated. The 5MP resolution delivers detailed video, while the switchable video output (CVI/TVI/AHD/CVBS) ensures compatibility with most DVRs. IP67 protection guarantees reliable operation in harsh environments.

Suitable for

• Outdoor perimeter monitoring
• Residential and commercial security
• Parking lots and entrances
• Warehouses and industrial sites

Key specifications

• Image Sensor: 1/2.7" CMOS
• Max Resolution: 5MP (2880 x 1620)
• Video Output: CVI/TVI/AHD/CVBS (Switchable)
• Lens: 3.6mm fixed focal
• Horizontal Angle of View: 92°
• Illumination: Smart Dual Light (IR + White Light), up to 20m each
• Day/Night: Auto (ICR) / Manual
• WDR: Digital WDR
• Noise Reduction: 2D NR
• Ingress Protection: IP67
• Power Supply: 12V DC ±30%
• Power Consumption: Max 3.7W
• Operating Temperature: -40°C to +60°C
• Housing Material: Metal front cover + Plastic main body

Recommendations

For optimal performance, use with a compatible Dahua DVR supporting 5MP CVI/TVI input. Ensure proper weatherproofing of cable connections. Consider using a 12V DC power supply with sufficient current rating.
