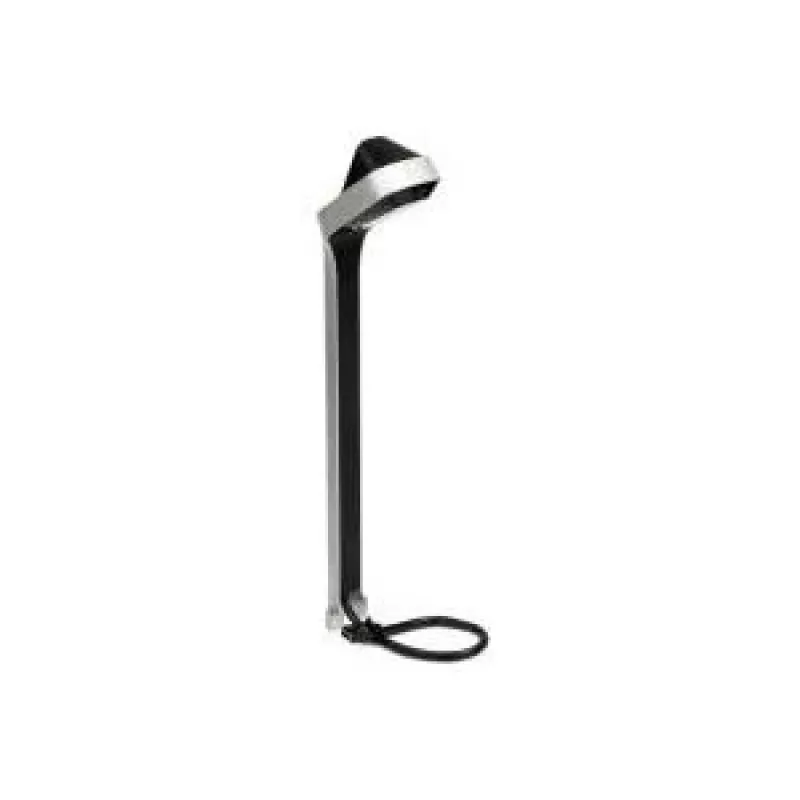

Datalogic Top Down Reader, Tall, 12.4 - viivakoodilukija Top-Down Reader

The Datalogic Top Down Reader, Tall, 12.4 is a high-performance presentation scanner designed for hands-free scanning in retail, logistics, and industrial environments. With its tall stand and omnidirectional digital imager, it captures 1D and optional 2D barcodes quickly and accurately, improving productivity at the point of sale or on the production line.

Advantages

This top-down reader offers exceptional ease of use with its tall, adjustable stand that accommodates various product sizes. The omnidirectional scan pattern eliminates the need for precise alignment, while the Datalogic Green Spot technology provides visual good-read feedback. Its rugged design withstands drops from 1.2 m and features an IP52 rating for dust and water resistance, ensuring reliable operation in demanding conditions.

Suitable for

• Retail checkout counters and self-service kiosks
• Warehouse and logistics scanning stations
• Manufacturing and production line item tracking
• Healthcare and laboratory specimen identification

Key specifications

• Scan Technology: Digital Imager (Omnidirectional)
• Decoding Capability: 1D / Linear Barcodes, Optional 2D Barcodes
• Interface: USB (HID Keyboard, IBM OEM, USB COM Emulation)
• Color: Black
• Light Source: Illumination: Multiple diffused LEDs; Aiming: 650 nm VLD
• Minimum Resolution: 5 mil (0.13 mm) for 1D codes
• Print Contrast: 25% minimum reflective difference
• Reading Indicators: Beeper (Adjustable Tone and Volume), Good Read LED, Datalogic Green Spot Technology
• Drop Resistance: Withstands repeated drops from 1.2 m (4.0 ft) onto concrete
• IP Rating: IP52
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity: 5 - 95% (non-condensing)
• Input Voltage: 5 VDC +/- 10%
• Current Consumption (Operating): 400 mA
• Current Consumption (Standby): 250 mA
• ESD Protection: 25 kV
• Form Factor: Presentation / Desktop Scanner with Tall Stand

Recommendations

For optimal performance, pair this scanner with a compatible USB cable and ensure proper mounting on a stable surface. The tall stand is ideal for scanning larger items or when operators prefer a higher scanning position. Regular cleaning of the window and maintaining a clutter-free scanning area will prolong the device's life and reading accuracy.
