Käsikäyttöinen viivakoodilukija Datalogic PowerScan PM9100

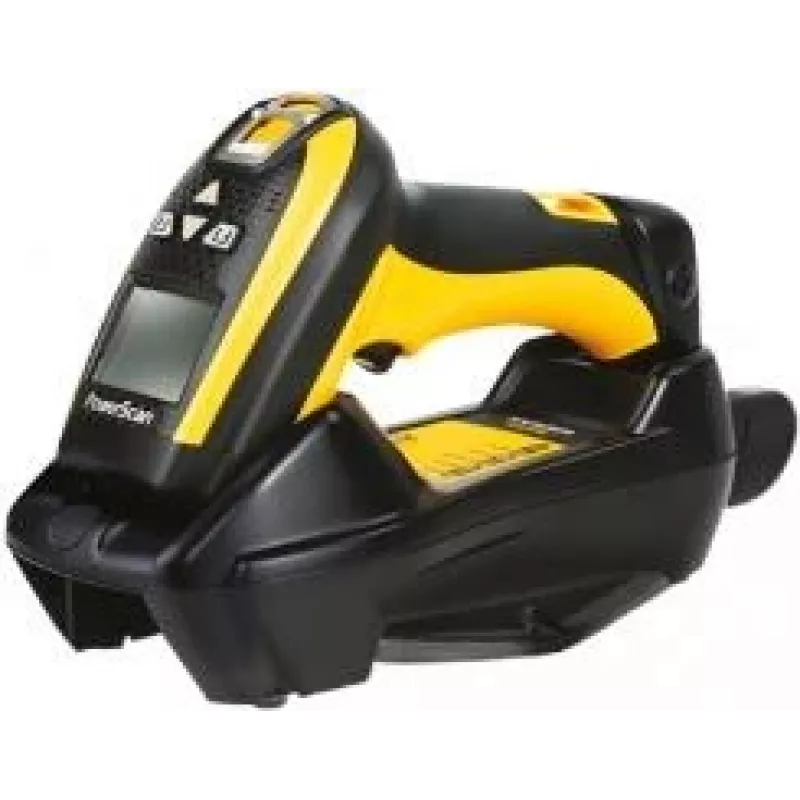

The Datalogic PowerScan PM9100 handheld bar code reader is a rugged cordless linear imager designed for reliable 1D barcode capture in industrial environments. It uses Datalogic’s STAR Cordless System narrow band radio (433 MHz) for wireless operation up to approximately 50 meters and is available in three configurations: basic (no display or keypad), with a display and 4-key keypad, or with a display and full alphanumeric keypad. The scanner combines a high-definition green scanning line with an LED sensor to deliver laser-like aiming together with the advantages of an imager. The device is rated IP65, shock resistant and powered by a 2150 mAh Lithium-Ion battery; its multi-interface capabilities include RS-232, Keyboard Wedge and USB for wired connections.

Advantages

The PM9100 offers precise aiming via a green scanning line and enhanced good-read feedback through Datalogic’s 3 Green Lights (3GL) system including Green Spot and dual top LEDs. Cordless operation on a 433 MHz narrow band radio provides reliable wireless range for industrial workflows. The imager supports a wide range of 1D barcode symbologies, is built to IP65 standards for dust and water protection, and has a robust housing for shock resistance. Multiple model options and common wired interfaces ensure flexible deployment in diverse environments.

Suitable for

• Warehouse receiving and picking
• Manufacturing line inventory and tracking
• Logistics and distribution centers
• Retail stockroom management

Key specifications

• Model: Datalogic PowerScan PM9100
• Scanner type: Linear imager (1D)
• Sensor: LED
• Wireless: STAR Cordless System narrow band radio, 433 MHz, ~50 m range
• Interfaces: RS-232, Keyboard Wedge, USB
• Battery: 2150 mAh Lithium-Ion
• Ingress protection: IP65
• Weight: 0.435 kg
• Supported 1D codes: EAN-13, EAN-2, EAN-5, UPC, Code 39, Code 93, Code 32, Code 128, Interleaved 2 of 5, Codabar, GS1 DataBar Omnidirectional, GS1 DataBar Expanded
• Colour: Black, Yellow

How to use

Power on the scanner and, if using wirelessly, ensure the handset is paired with its base or receiver per the STAR Cordless System instructions. Aim the green scanning line at the center of the 1D barcode at a comfortable distance and press the trigger to scan. Confirm a successful read by the Green Spot on the code and the dual Good Read LEDs on the cap. For wired operation, connect the unit using the appropriate interface cable (RS-232, Keyboard Wedge or USB) and follow host device setup procedures.

Recommendations

Use the PM9100 in environments within the specified IP65 and shock resistance limits. Clean the scan window regularly to maintain read performance and keep the battery charged for uninterrupted wireless operation. Select the model with the required keypad/display configuration to match your workflow needs.
