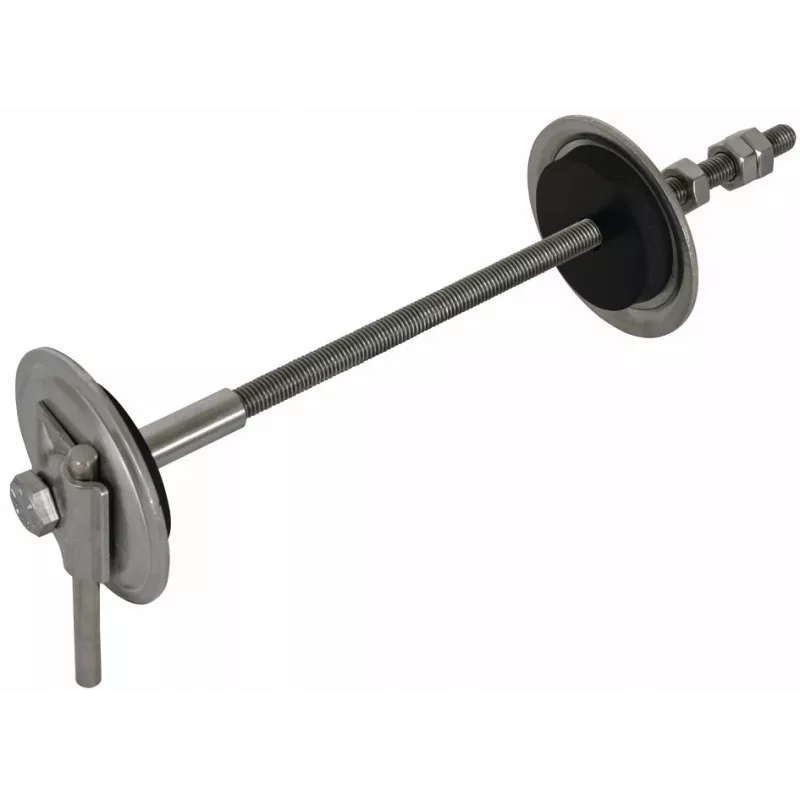

DEHN 478430 maadoituksen seinäläpivienti, säädettävä 300-500 mm, ruostumaton teräs

Routing earthing conductors through walls often creates a weak point: moisture ingress, mechanical stress, and poor contact can compromise the lightning protection system. The DEHN 478430 wall lead-through solves this by providing a secure, adjustable passage for round and flat conductors through walls with thicknesses from 300 to 500 mm. Made of stainless steel (V2A), it resists corrosion and ensures a reliable connection in both indoor and outdoor environments.

Who is it for

This product is intended for electricians, lightning protection installers, and building contractors who need to route earthing conductors through masonry, concrete, or dry walls while maintaining system integrity and compliance with IEC 62561-1.

Main features

• Adjustable wall thickness range: 300–500 mm
• Total length: 520 mm
• Material: stainless steel (Niro/V2A) for high corrosion resistance
• Accepts round conductors Rd 8–10 mm and flat conductors up to Fl 30 mm
• Clamp connection for secure conductor fastening
• Suitable for masonry, concrete, and dry walls
• Compliant with IEC 62561-1

Specifications

• Product type: Wall lead-through
• Material: Stainless steel (V2A)
• Adjustable wall thickness: 300–500 mm
• Total length: 520 mm
• Conductor connection (round): Rd 8–10 mm
• Conductor connection (flat): Fl 30 mm
• Connection type: Clamp connection
• Mounting: Wall installation
• Corrosion resistance: High
• Suitable for wall types: Masonry, concrete, dry walls
• Standard compliance: IEC 62561-1
• Environmental suitability: Outdoor and indoor use

Tips

For optimal performance, ensure the wall opening is properly sealed after installation to prevent moisture ingress. The adjustable design allows for on-site adaptation to different wall thicknesses, reducing the need for custom parts.
