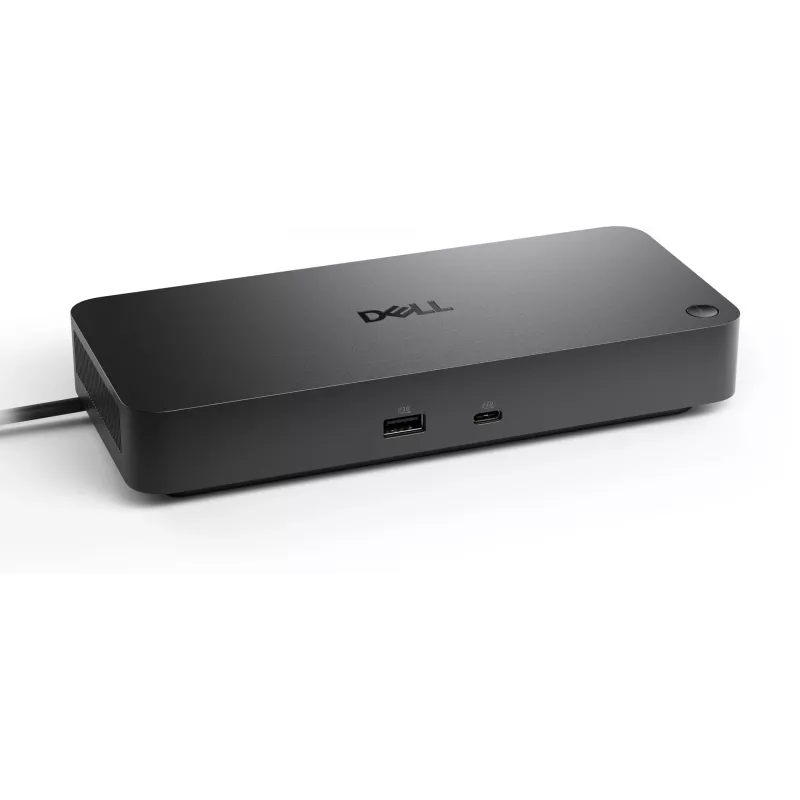

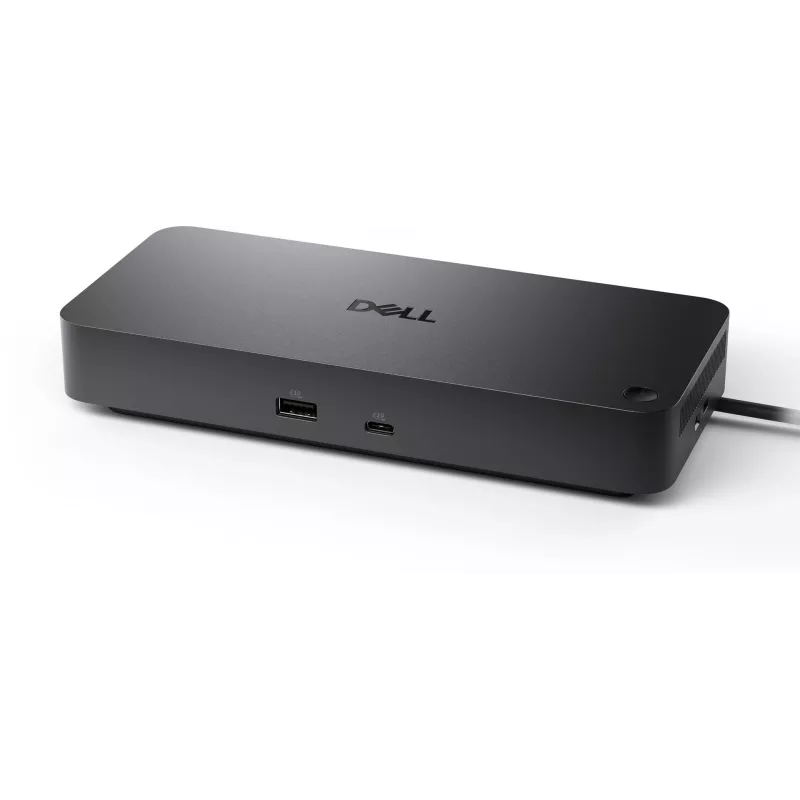

DELL WD25 langallinen USB-C-telakka 130W Power Deliveryllä, Dual DisplayPort, HDMI, 5K

Laptops with limited ports can make connecting multiple monitors, peripherals, and wired networks a daily frustration. The DELL WD25 docking station solves this by expanding a single USB-C connection into a complete desktop workstation, delivering high-resolution video, fast data transfers, and robust power delivery.

Who is it for

This dock is ideal for professionals who use a modern USB-C laptop and need a permanent desk setup with dual or triple monitors, wired Ethernet, and multiple USB devices. It is especially suited for Dell systems requiring up to 130W power delivery, but also works with non-Dell USB-C laptops at up to 90W.

Main features

• Wired USB-C connectivity with USB 3.2 Gen 2 host interface
• Supports up to 3 external displays via 2x DisplayPort 1.4, 1x HDMI 2.0b, and USB-C Alt Mode
• Maximum resolution: 5120 x 2880 @ 60Hz (single display), 3840 x 2160 @ 60Hz (dual), 1920 x 1200 @ 60Hz (triple)
• Power delivery up to 130W for Dell laptops, 90W for non-Dell
• 3x USB 3.2 Gen 1 Type-A ports, 1x USB 3.2 Gen 1 Type-C downstream port
• Gigabit Ethernet RJ-45 port with PXE Boot, Wake-on-LAN, and MAC Address Pass-Through
• Headphone/microphone combo jack
• Kensington lock slot for security
• Integrated 0.8m USB-C host cable
• Includes 180W AC adapter

Specifications

• Colour: Black
• Host interface: USB-C (USB 3.2 Gen 2)
• Video outputs: 2x DisplayPort 1.4, 1x HDMI 2.0b, 1x USB-C (DisplayPort Alt Mode)
• USB ports: 3x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 1 Type-C
• Ethernet: Gigabit Ethernet (RJ-45)
• Audio: 1x headphone/microphone combo jack
• Power delivery to host: Up to 130W (Dell), 90W (non-Dell)
• AC adapter power: 180W
• Max resolution: 5120 x 2880 @ 60Hz (single), 3840 x 2160 @ 60Hz (dual), 1920 x 1200 @ 60Hz (triple)
• Security: Kensington lock slot
• OS support: Windows 10/11, Ubuntu, RedHat
• Integrated host cable length: 0.8m

Tips

For optimal performance, ensure your laptop's USB-C port supports DisplayPort Alt Mode and USB Power Delivery. Update the dock firmware via Dell Support to enable the latest compatibility and security features. When using triple displays, note that the maximum resolution per display is 1920 x 1200 @ 60Hz.
